Cisco IE 3000 Series User Manual

B-30
Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Appendix B Installation In a Hazardous Environment
Installing the Switch
Step 4 Push the DIN rail latches in after the switch is over the DIN rail. See Figure B-21.

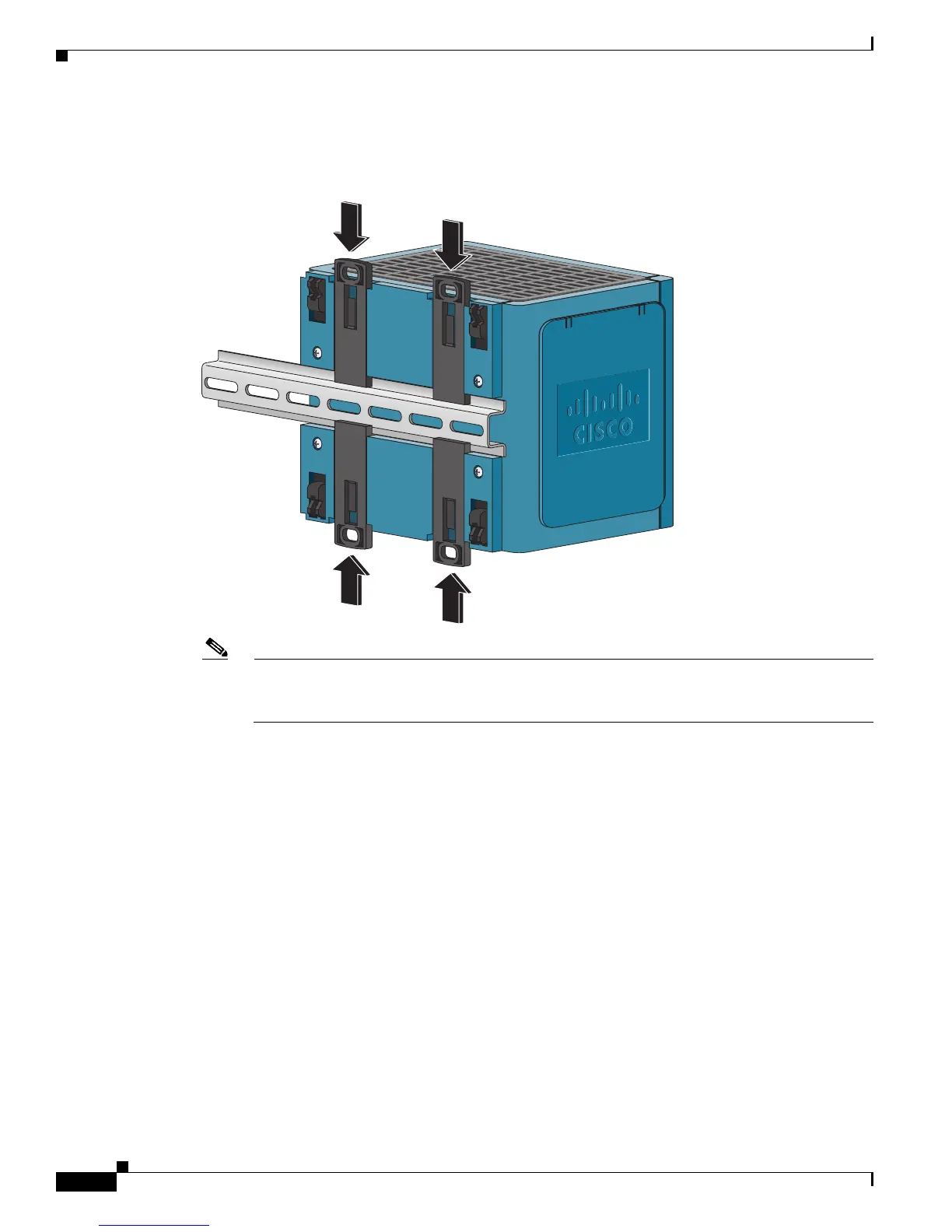

Figure B-21 Pushing the DIN Rail Latches In
Note If you are using a 15-mm DIN rail, rotate all the feet (see Figure B-21) to the extended positions.
Otherwise, rotate all the feet to the recessed positions. Figure B-22 shows the two DIN rails. You
can use either the 7.5-mm or the 15-mm DIN rail.
201829
