Cisco TelePresence SX20 Quick Set Administrator Guide
Power button and LED indicator

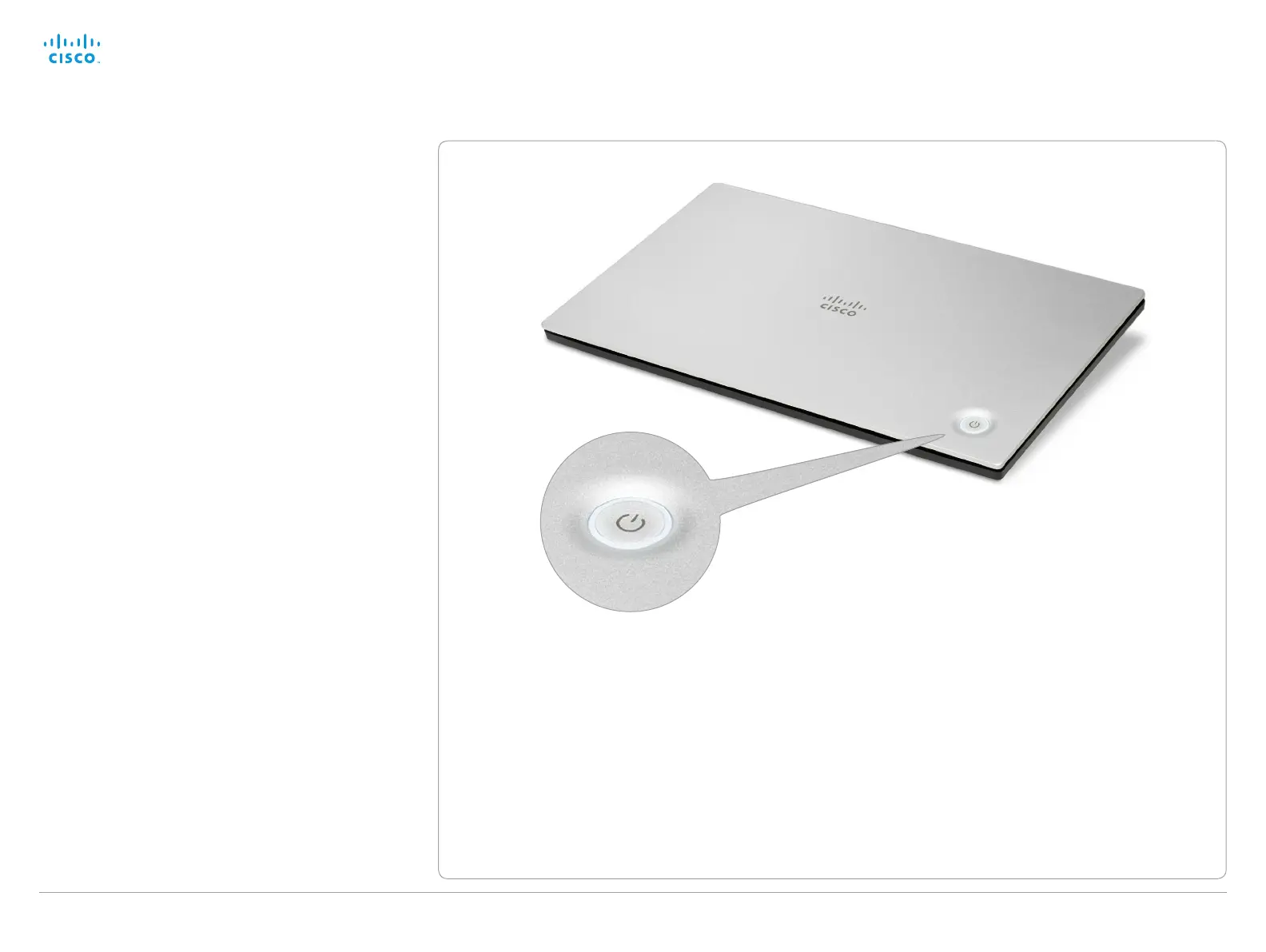

The power button is placed on the top lid as shown in the
illustration. There is a ring of LEDs encircling the button.
Switch on the codec
If the codec does not start automatically, press the power
button gently to switch it on.
While starting up the LEDs are lit. The system is ready for use
when the light stops circling and the LEDs light steadily.
Switch off the codec
To switch off the codec, press the power button gently and
hold until the light goes out completely.
Enter/exit standby mode
To enter/exit standby mode, press the power button briefly.
Power button with
LED indicator
The LED indicator
Steady light:
The codec is ready for use.
The LEDs are pulsating slowly:
The codec is in standby mode.
The LEDs are flashing:
The codec calls for attention, e.g. when
there is no LAN connection.
The light from the LEDs circles clockwise:
The codec is starting up (booting), and is not
yet ready for use.
The LEDs light red:
The camera connector is in serial mode
(camera control is disabled)
