Chapter 3: Connecting the Switch
Configuring Units and Ports
Linksys One Ready Communications Solution
• Unit No.— Displays the current Stacking Master.
• Unit No. After Reset — Indicates the stacking member elected Stacking Master after the
device is reset.
2. Define the relevant fields.
3. Click Apply. Stack management is defined, and the device is updated.
Resetting the Unit to Factory Default Mode

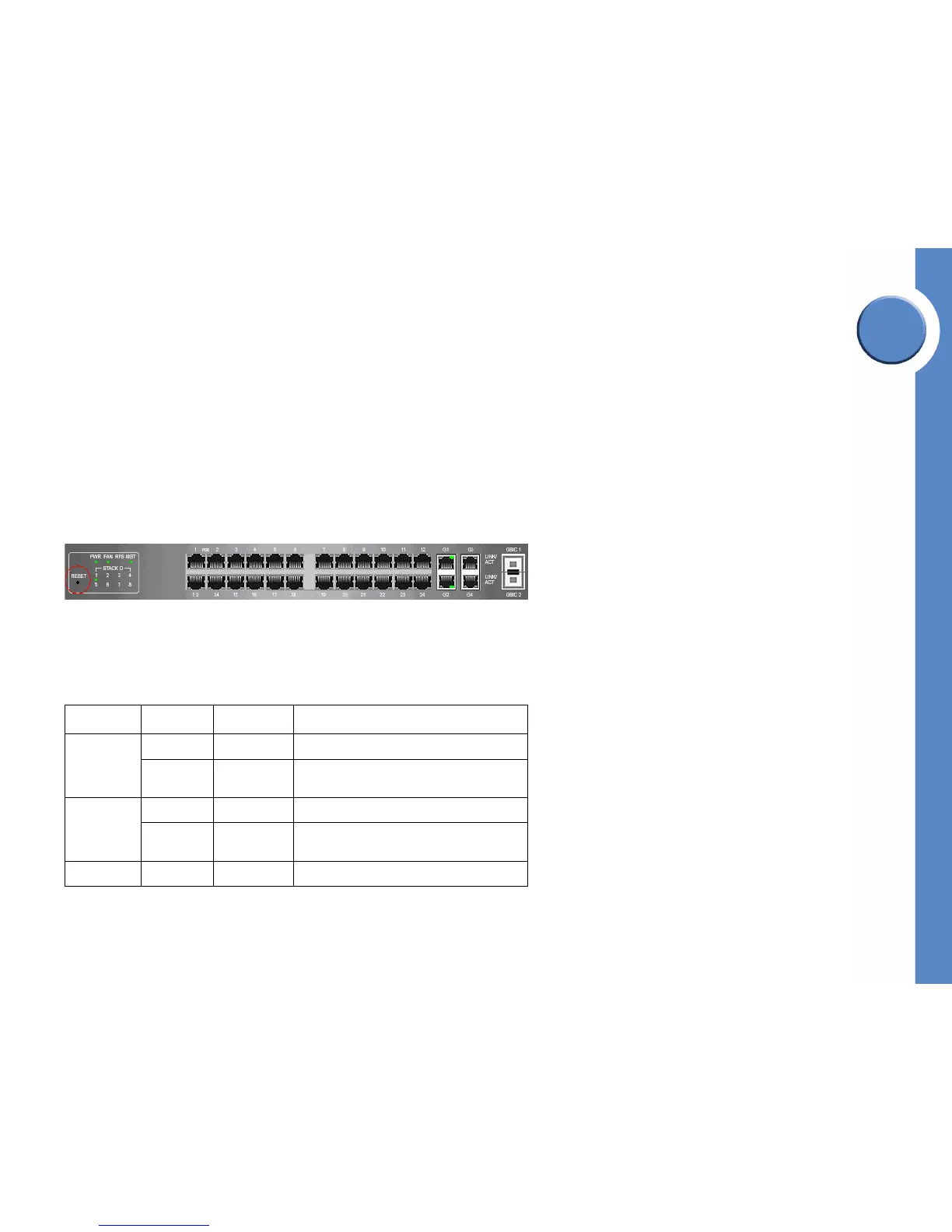

To reset the unit to the factory default settings, press the front panel RESET button (see figure
below.) The unit is set to Stack mode with a Unit ID of 0.
Understanding LED Indicators
Each unit contains a Master LED indicator and eight unit LEDs. The LED status definitions are
shown in the table below.
LED Mode Color Description
Master
Solid Green The switch is the Stack Master.
Off N/A
The switch is not the Stack Master or the switch is
not stacked.
ID n
Solid Green The switch is Unit ID n.
Off N/A
The switch is not Unit ID n or the switch is not
stacked.
All ports Solid Red The switch is powered on, but not operational.
