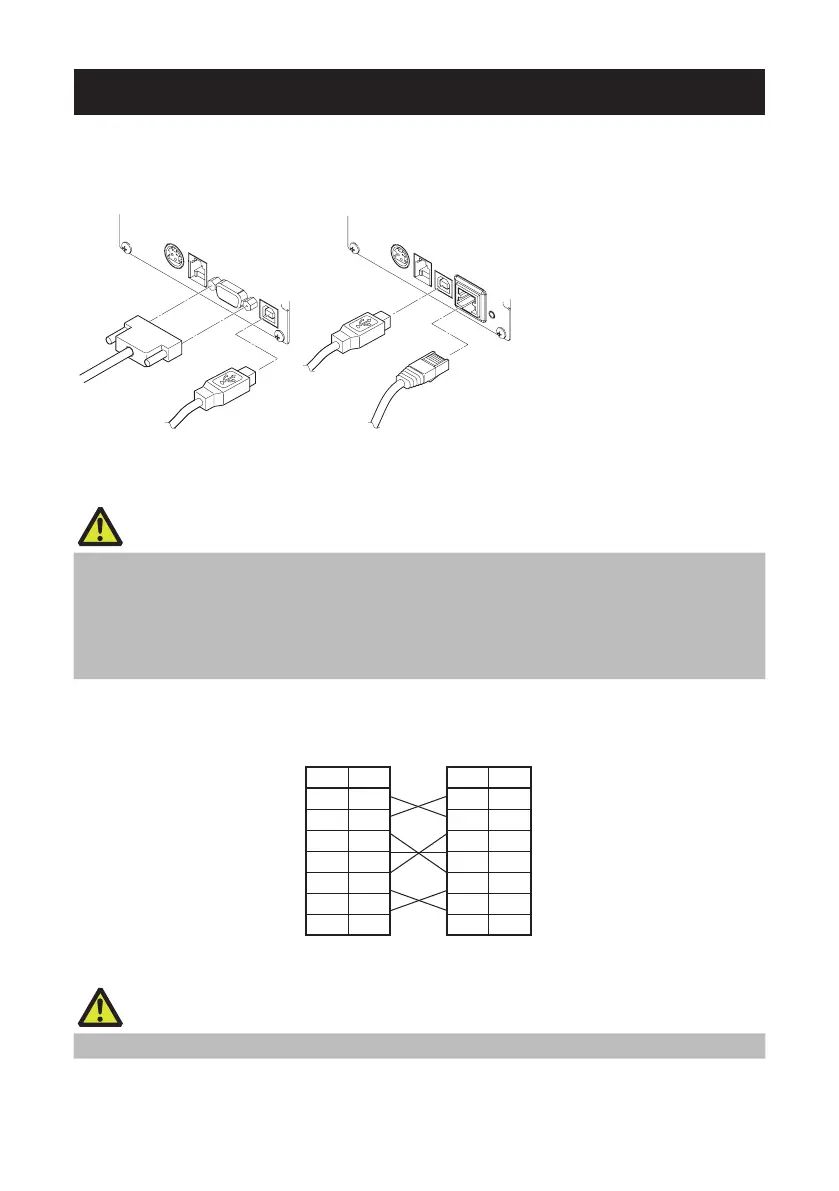

3.2 Connecting Interface Cables
1. Turn off the power.
2. Orient the interface cable correctly and insert it into the interface connector.
USB + serial Ethernet + USB
CAUTION
 When disconnecting the cable, always hold the connector.
 Be careful not to insert the USB cable into the cash drawer kick-out connector.
 To connect more than one printer to a single computer by USB, you must change the serial
number of the USB interface.
 Hold the connector of the LAN cable perpendicular and straight when connecting or discon-
necting it. Doing it at an angle may cause the connector to misconnect.
Use a serial cable with the connection layout shown below.
9-pin (female) - 9-pin (female) cable
retnirPCP
Signal PinPin Signal
RXD2 2RXD
TXD
33
TXD
DTR
44
DTR
SG
55
SG
DSR
66
DSR
RTS7 7RTS
CTS8 8CTS
CAUTION
Place the interface cable so that people do not trip on it.

Citizen CT-E351 Specifications

General

Print technology	-
Maximum resolution	203 x 203 DPI
Product color	White
Wi-Fi	No
Ethernet LAN	Yes
Mobile operating systems supported	Android
Supported paper width	58, 80 mm
USB 2.0 ports quantity	1
Connectivity technology	Wired
Harmonized System (HS) code	84433210
