Citizen CT-E351 User Manual

26
——

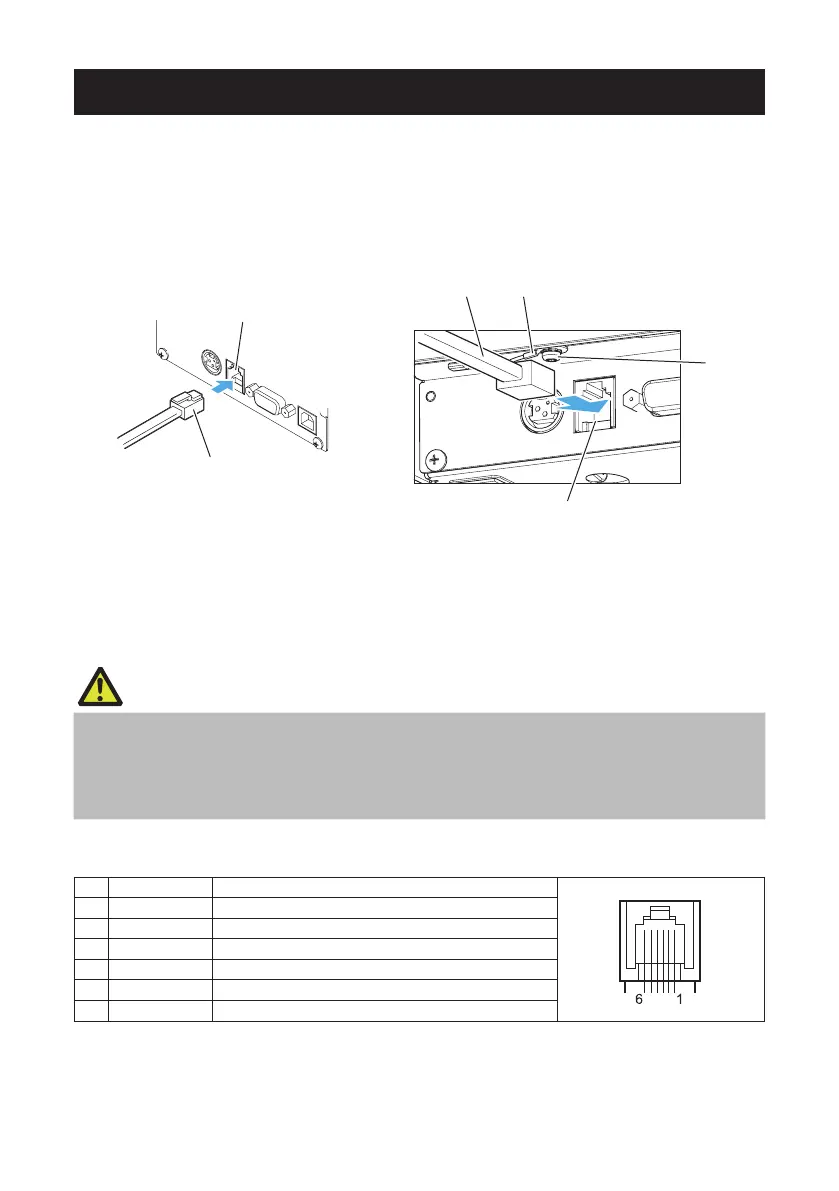

3.4 Connecting the Cash Drawer
1. Turn off the power.
2. Conrm the orientation of the cash drawer kick-out cable connector and connect it to
the cash drawer kick-out connector at the back of the printer.
3. Remove the screw for the ground wire.
4. Screw the cash drawer’s ground wire to the body of the printer.
1
2
1
23
4
1. Cash drawer kick-out connector
2. Cash drawer kick-out cable connector
3. Ground wire
4. Screw for ground wire
CAUTION
 Connect only the cash drawer kick-out cable to this connector. (Do not connect a telephone
line.)
 Signals cannot be output from the cash drawer kick-out connector while printing.
 Hold the connector of the drawer kick cable perpendicular and straight when connecting or
disconnecting it. Doing it at an angle may cause the connector to misconnect.
(1) Connector pin conguration
No. Signal Function
1 FG Frame ground
2 DRAWER1 Cash drawer 1 drive signal
3 DRSW Cash drawer switch input
4 VDR Cash drawer drive power supply
5 DRAWER2 Cash drawer 2 drive signal
6 GND Signal ground (common ground on circuits)
Connector used:TM5RJ3-66 (Hirose) or equivalent
Applicable connector: TM3P-66P (Hirose) or equivalent

Citizen CT-E351 Specifications

General

Print technology	-
Maximum resolution	203 x 203 DPI
Product color	White
Wi-Fi	No
Ethernet LAN	Yes
Mobile operating systems supported	Android
Supported paper width	58, 80 mm
USB 2.0 ports quantity	1
Connectivity technology	Wired
Harmonized System (HS) code	84433210
