—12—
Notes:
*1: When paper width is 83, 80, 60, or 58 mm.
*2: The number of printable columns is selected using a memory switch.
The number of columns noted in this table refer to typical models. The number of columns varies
depending on specifications.
*3: Characters appear small because the dimensions include a blank area surrounding each
character.
*4: The 36AD2/37AD2 is the AC adapter packaged as an accessory with the CT-S601IIA.
The 36AD3/37AD3 is the AC adapter built in to the CT-S601IIS.
*5: Compliant if the Citizen Systems AC adapter (36AD2/3, 37AD2/3) is used.
Names of parts
 Paper cover
Open to load paper.
 Cover open lever
Use this lever to open the paper cover.
 Front cover
Open and close this cover to clear a cutter lock.
 Front cover release button
Press this button to open the front cover.

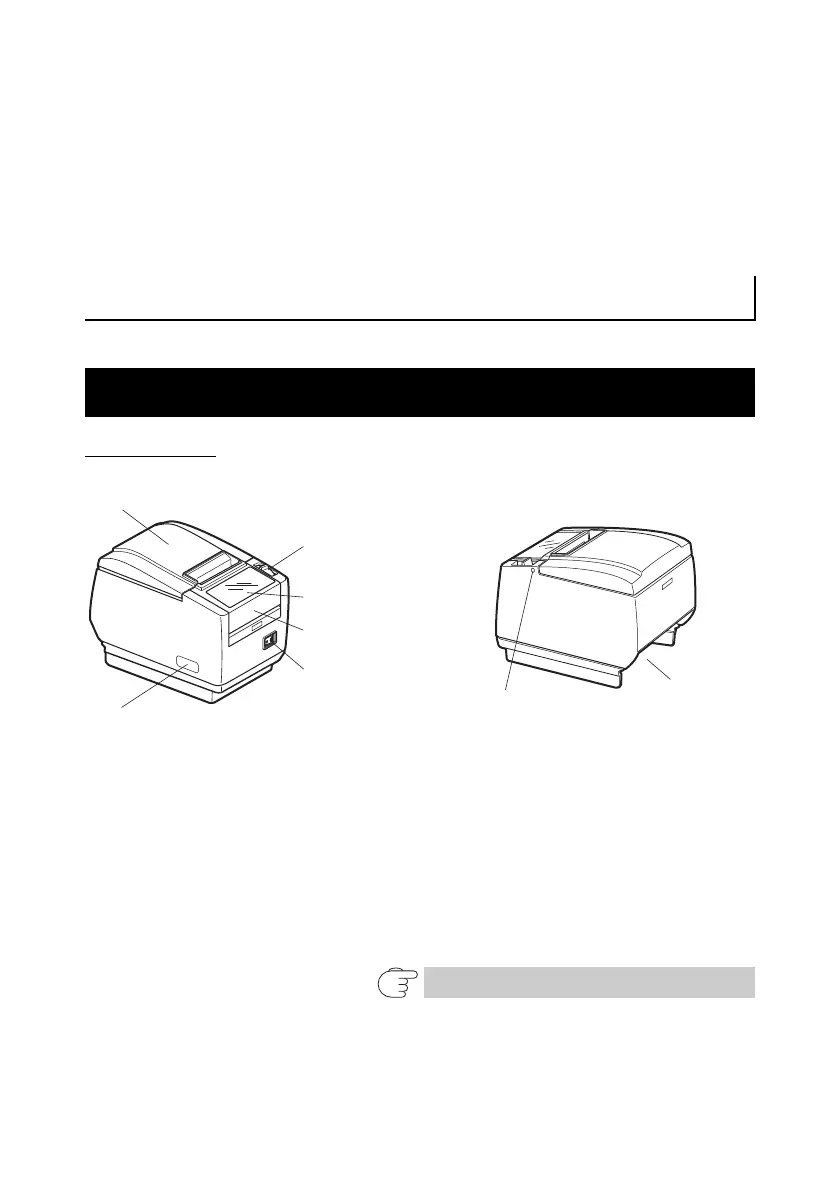

2. EXPLANATION OF PRINTER PARTS
2.1 Printer Appearance
Refer to 4.3 Clearing a Cutter Lock (2)
Paper cover
Rear connectors
Maintenance cover
Power switch
Operation panel
Cover open lever
(Front view) (Rear view)
Front cover
Front cover
release button
