11
1
Monitoring
C1_en_Chap01_controle-de-marche_ed01-2015
1. Speedometer (mph or km/h).
2. Central display screen.
For more information, refer to the
corresponding section.
3. Gear shift indicator.
4. Display management button (Display).
Display of information in ascending order.

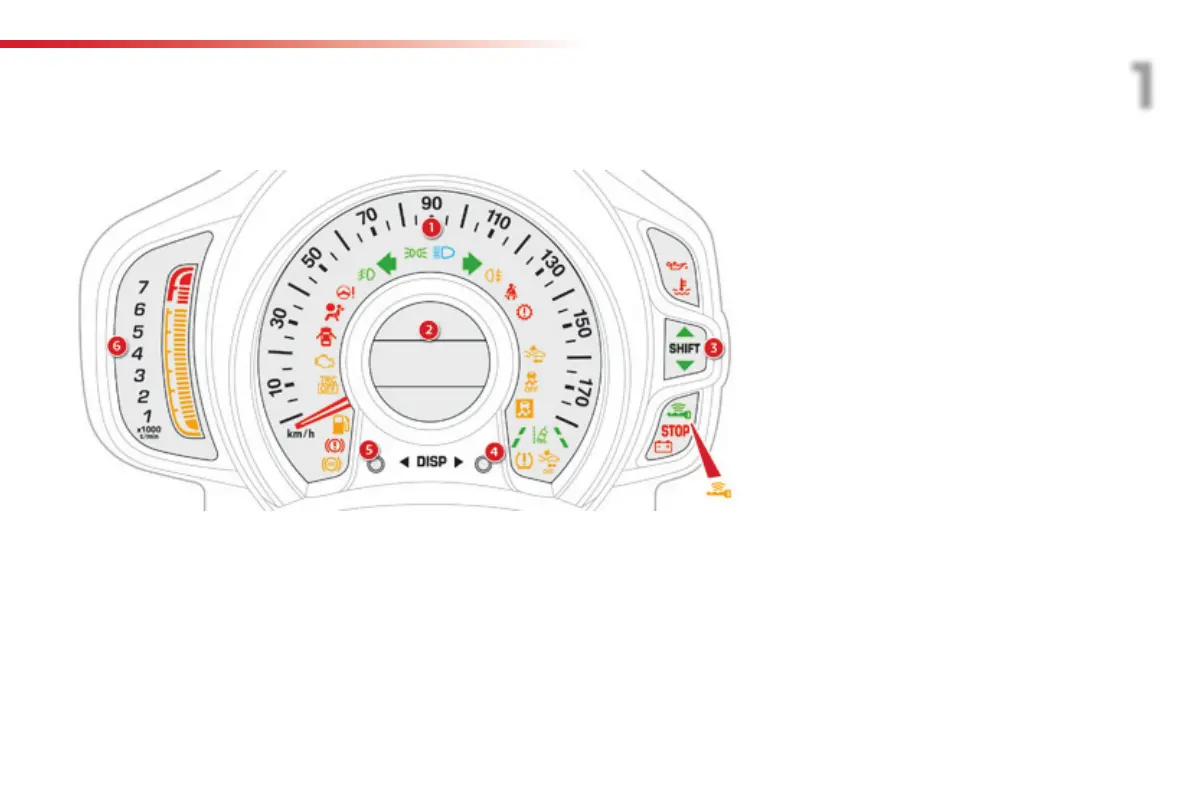

Type 2 instrument panel
5. Display management button (Display).
Display of information in descending order.
6. Rev counter
The engine speed is indicated by the
display of orange illuminated bars.
Above the maximum engine speed, the
bars are displayed in red to warn you of the
need to change up.
