AXLES
SUSPENSION
STEERING
FRONT AXLE

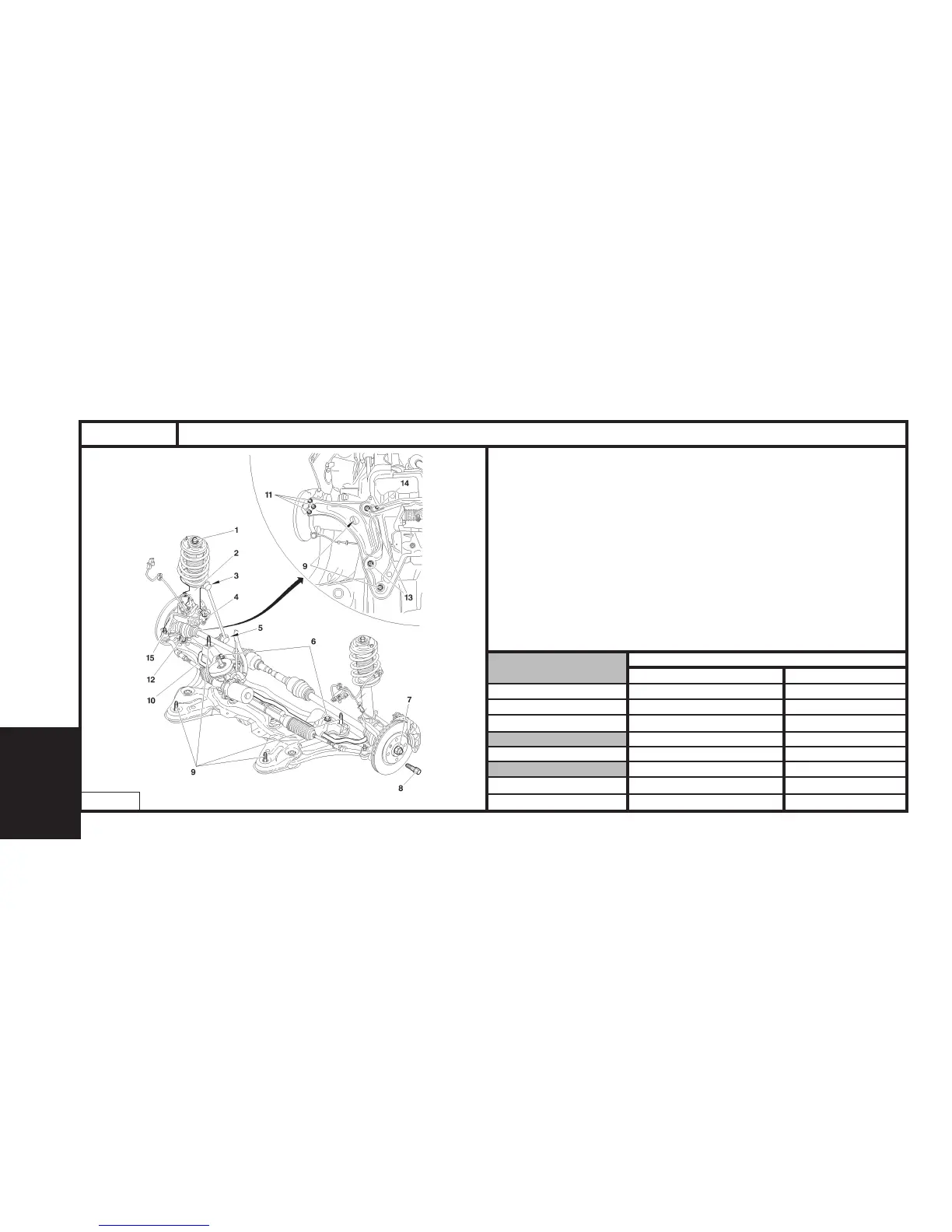

Tightening torques (m.daN).
(1) Nut fixing suspension leg on body : 6,5 ± 0,6
(2) Damper :
(3) Anti-roll bar link rod upper ball-joint : 3,2 ± 0,3
(4) Suspension leg pivot : 5,4 ± 0,5
(5) Anti-roll bar link rod lower ball-joint : 3,2 ± 0,3
(6) Anti-roll bar bearing fixing on subframe : 8 ± 0,8
(7) Hub nut : 24,5 ± 0,5
(8) Wheel bolt :9 ±1
(9) Subframe to bodyshell fixing screw : 10 ± 1
(10) Anti-roll bar :
(11) Pivot lower ball-joint fixing on lower arm : 5,5 ± 0,5
(12) Pivot lower ball-joint fixing : 4 ± 0,4
(13) Lower arm front and rear mounting fixing : 14 ± 0,4
(14) Stabiliser bar screw : 6,6 ± 0,7
(15) Steering ball-joint fixing : 3,5 ± 0,3
Private vehicles Anti-roll bar
Europe Diameter (mm) Colour
HFX - KFV 18 Violet
NFU 20 Green
8HX 19 Blue
Entreprise vehicles Diameter (mm) Colour
HFX - 8HX 18 Violet
CRD vehicles Diameter (mm) Colour
KFV - 8HX 18 Violet
NFU 20 Green
