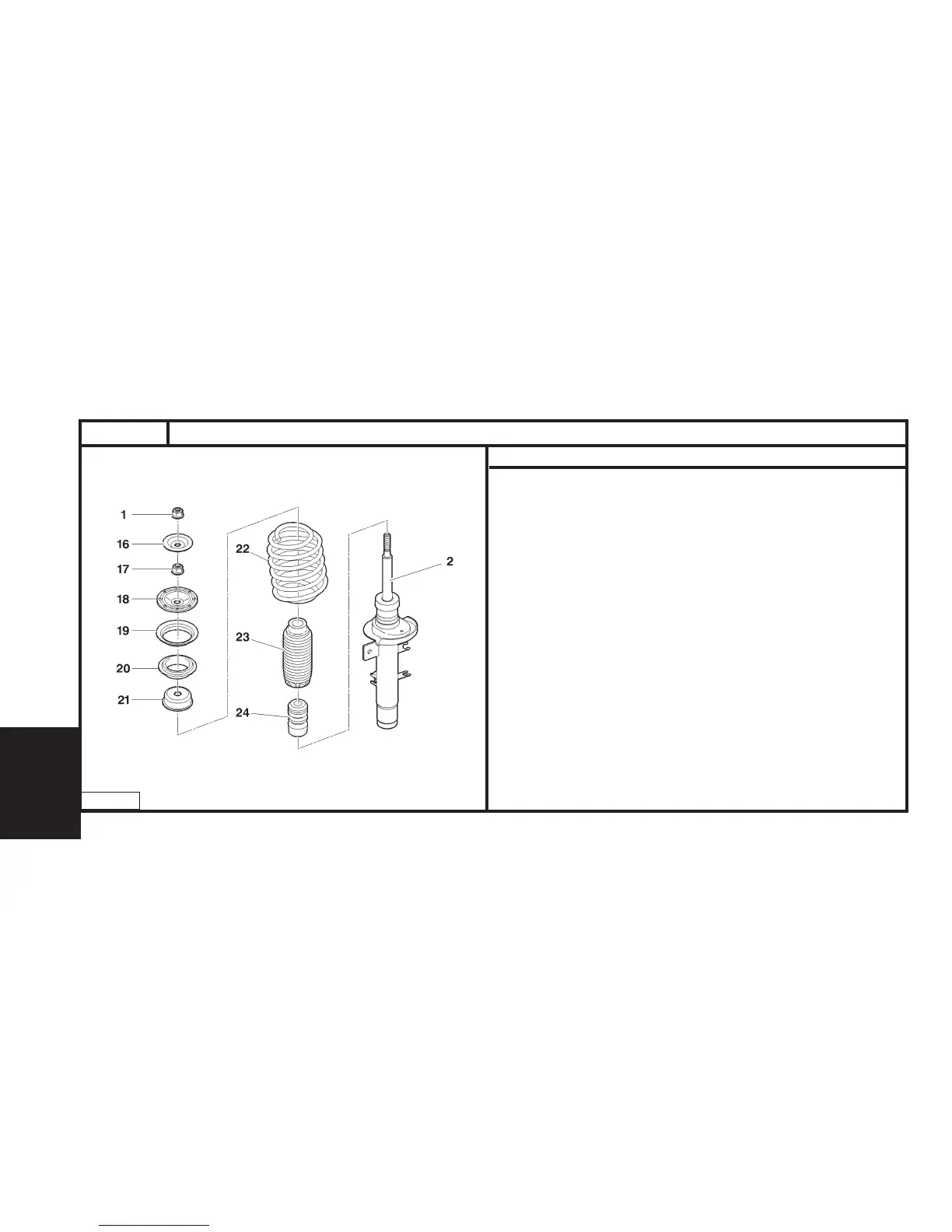

360
AXLES
SUSPENSION
STEERING
SUSPENSION
FRONT AXLE
(1)
Nut fixing suspension leg on body
:
6,5 ±
0,6
(2)
Damper
(16)
Cup
(17)
Damper nut
:
6,5 ±
0,6
(18)
Damper cup
(19)
Ball bearing
(20)
Spr
ing thr
ust cup
(21)
T
rav
el stop cup
(22)
Suspension spring
(23)
Damper rod rpotector
(24)
T
rav
el stop
B3BP180D
C2
363
365
Table of Contents
Presentation
2
Reconnect Battery after Vehicle Repair
4
Identification of Vehicles
5
Operations to be Carried Ort after a Repair
8
Antiscanning Function
8
Tailgate
8
Overspeed Check
8
Capacities (in Litres)
34
Draining Mandhod
34
Lubricants - Total Recommended Oils
42
Engine Oil Consumption
66
Engine Specifications
67
Special Features - Tightening Torques
71
Tightening Torques: Power Unit Suspension
82
Cylinder Head
100
Identification of Cylinder Head Gasket
100
Cylinder Head Tightening (M.dan)
101
Cylinder Head Bolts
101
Belt Tension/Seem Units Correspondence Table
118
Auxiliary Equipment Drive Belt
119
Auxiliary Equipment Drive Belt 2002
121
Recommendations: Timing Belt
151
Checking and Setting the Valve Timing
152
Special Features of the Timing
229
Valve Clearance Settings
230
Checking the Oil Pressure
231
Oil Filters
234
Filling and Bleeding the Cooling Circuit
235
Idling - Depollution
236
Petrol Injection
237
Depollution Technical Checks (France)
240
Emission Standards
241
Safety Requirements: Hdi Direct Injection System
247
Prohibited Operations: Siemens Hdi Direct Injection System
249
Prohibited Operations: Delphi Hdi Direct Injection System
251
Prohibited Operations: Hdi Direct Injection System
253
Specifications of the Delphi Diesel Injection Pump
256
Checking and Setting the Delphi Mechanical Injection Pump
257
Adjusting the Mechanical Controls of the Delphi Injection Pump
259
Fitting Delphi Diesel Injectors
261
Injection Pump Specifications (Bosch and Siemens)
262
Checks: Low Pressure Fuel Supply Circuit
263
Checks: Turbo Pressure
267
Checking te Air Supply Circuit
272
Checks: Exhaust Gases Recycling Circuit
274
Particle Filter Safety and Cleanliness Requirements
277
Special Features: Forced Regeneration of the Particle Filter
279
Special Features: Particle Filter/Filling of the Additive Reservoir
280
Speedometer
284
Clutch Specifications
285
Clutch Controls: Features/Checks and Adjustments
292
Clutch Controls: Features/Checks and Adjustments Hydraulique
295
Gearbox and Tyre Specifications
297
MA/5 Gearbox
304
Recommendations - Precautions: MA Piloted Manual Gearbox
312
MA/5 Piloted Manual Gearbox
316
BE4/5 Gearbox
321
MA/5 Gearbox Controls
325
Checks and Adjustments: MA/5 Gearbox Controls
326
BE4/5 Gearbox Controls
329
Checks and Adjustments: Be4/5 Gearbox Controls
330
Recommendations- Precautions: AL4 Automatic Gearbox
336
AL4 Automatic Gearbox
340
Draining/Filling/Top-Up: AL4 Gearbox
355
Driveshafts - Gearbox
358
Axle Geometry
359
Axle Geometry
360
Front Axle
362
Rear Axle
363
Suspension
364
Features of Electric Power Steering
365
Special Features: Steering
368
Rear Damper
396
Manual Steering Specifications
397
Power-Assisted Steering Specifications
400
Xsara Picasso
404
Steering Column Specifications
411
Brake Specifications (Without ABS)
415
Brake Specifications (with ABS)
416
Brake Specifications
417
Brake Specifications
422
Handbrake (Adjustment)
423
Bleeding and Filling the Braking System
425
Brake Specifications (Without ABS Ref)
428
Brake Specifications (with ABS Ref)
429
Handbrake
454
Bleeding the Brakes
455
Braking System Specifications
458
Starter Motors
463
Alternators
476
Charging Circuit - Alternator with Mono-Function Regulator
484
Pre-Heating and Starting Systems
486
Air Conditioning R 134 a (HFC)
487
Special Features: Air Conditioning System
488
Checking the Efficiency of the Air Conditioning System
503
