Claas JAGUAR 830 User Manual

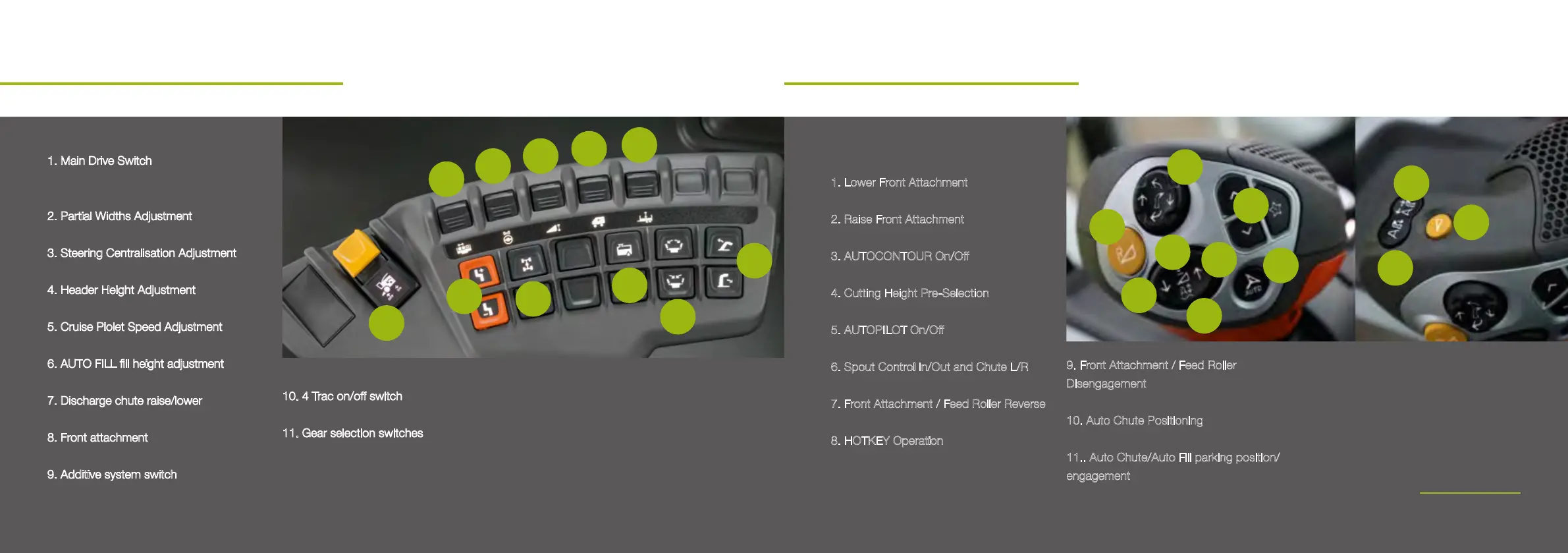

Right Hand Switch Panel
1. Main Drive Switch
Engages the chopping cylinder
2. Partial Widths Adjustment
3. Steering Centralisation Adjustment
4. Header Height Adjustment
5. Cruise Piolet Speed Adjustment
6. AUTO FILL ll height adjustment
7. Discharge chute raise/lower
8. Front attachment
9. Additive system switch
10. 4 Trac on/off switch
11. Gear selection switches
1
2
3
5
6
7
8
9
10
4
11
Multi-Function Lever
1. Lower Front Attachment
2. Raise Front Attachment
3. AUTOCONTOUR On/Off
4. Cutting Height Pre-Selection
5. AUTOPILOT On/Off
6. Spout Control In/Out and Chute L/R
7. Front Attachment / Feed Roller Reverse
8. HOTKEY Operation
08
9. Front Attachment / Feed Roller
Disengagement
10. Auto Chute Positioning
11.. Auto Chute/Auto Fill parking position/
engagement
3
5
6
7
8
9
10
4
1
2
11
