English
9 M309
4. DCP
When detaching the control panel, store it in the
DCP (DETACHABLE CONTROL PANEL) case to
prevent scratches.

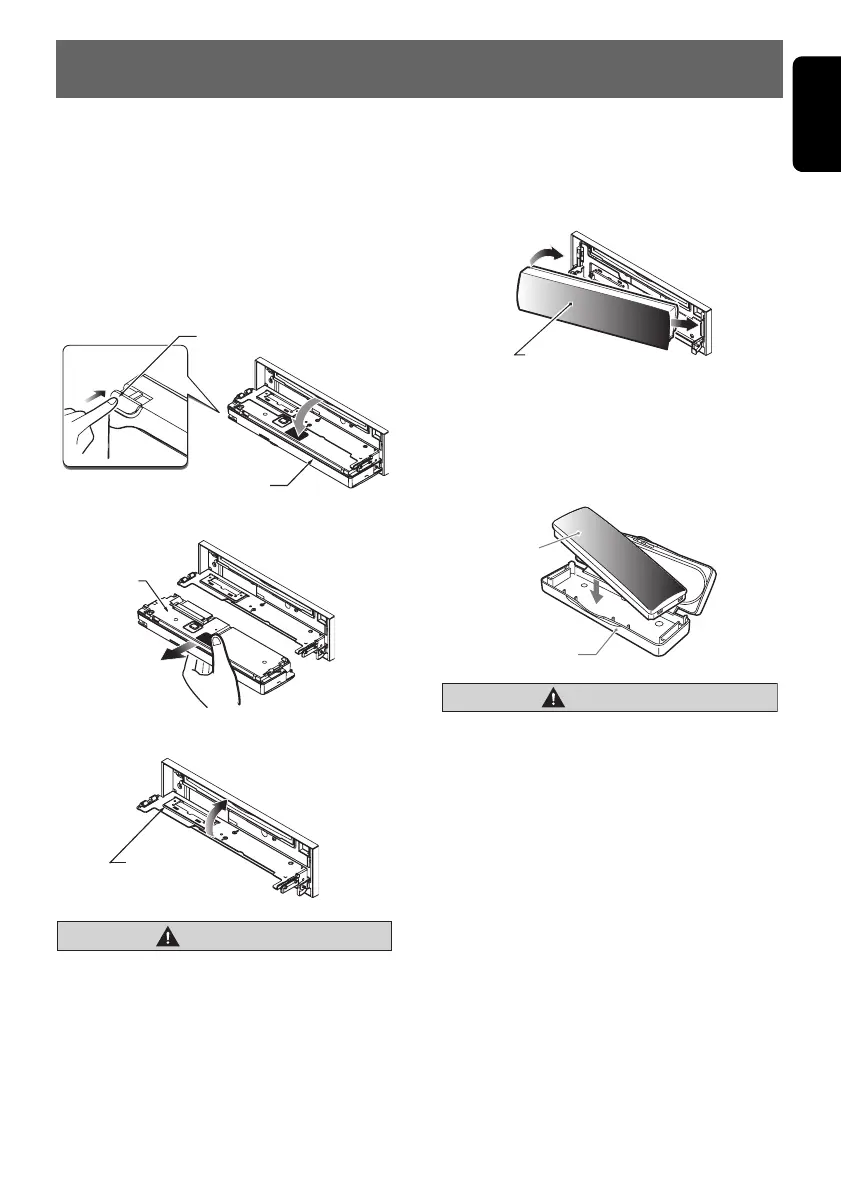

Removing the DCP
1. Press the [SRC] button (1 sec.) to turn off the
power.
2. Deeply push in [OPEN] button to unlock the
flip down panel.
If the flip down panel does not open fully,
gently open it with your hand.
3. Pull the DCP toward you and remove it.
4. Close the HOLD FLAP.
CAUTION
Be sure to close the HOLD FLAP for safety
when removing the DCP.
Attaching the DCP
1. Insert the right side of the DCP into the main
unit.
2. Insert the left side of the DCP into the main
unit.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct
orientation.)
CAUTION
• The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
• The connector connecting the source unit
and the DCP is an extremely important
part. Be careful not to damage it by
pressing on it with fingernails,
screwdrivers, etc.
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
DCP
[
OPEN
] button
DCP
HOLD FLAP
1.
2.
DCP
DCP
DCP case
M309_ENG.book Page 9 Monday, February 23, 2009 3:04 PM
