1. Be sure to turn the power off when wiring.
2. Be particularly careful where you route the wires.
Keep them well away from the engine, exhaust pipe, etc. Heat may damage the wires.
3. If fuse is blown, check that the wiring is correct.
If it is, replace the fuse with a new one with the same amperage rating as the original one.
4. To replace the fuse, open the lock on the source unit side, remove the old fuse and insert the
new one. (Figure 6)
* There are various types of fuse cases. Do not let the battery side terminal touch other metal
parts.
7) Sample Systems
6) Cautions on Wiring
Fuse
Fuse case
Figure 6
1
2
2
3
4
5
6
7
8
1 Source unit
2 RCA extension cable (sold separately)
3 4-Channel power amplier
4 Front speakers
5 Rear speakers
6 Wired remote control unit
7 SiriusXM-Connect Boat Tuner
8 AUX

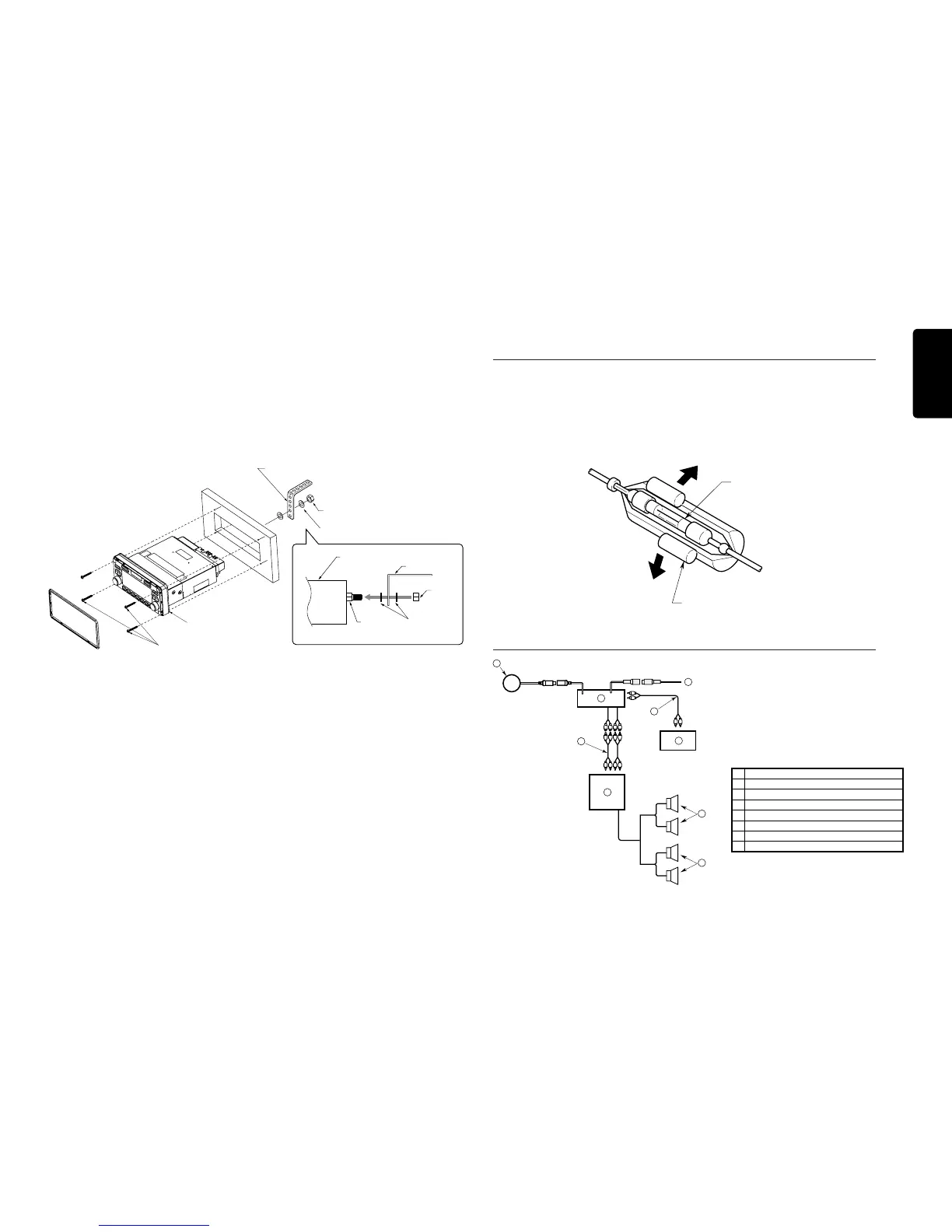

1. Insert the source unit into the cutout hole until to the end. (Figure 5)
2. Using the supply screws (M4 × 30) to secure the source unit. (Figure 5)
3. Using support strap to secure the source unit on the back side by supply M4 nut.
(Figure 5)
Note:
Some boat models require special mounting kits for proper installation.
Consult your Clarion dealer for details.
Rubber Gasket
M4 × 30 Screws
Note:
Confirmthattherubber gasket isfastened
securelytothebasepanel.
Figure 5
Support Strap
M5 Nut
M5 washer
M5 washer
Source unit
Support Strap
M5 Nut
Stud Bolt
To Next Page
