NX602
Installing The Main Unit
This unit is designed for xed installation in the dashboard.
1. When installing the main unit in NISSAN vehicles, use the parts attached to the unit (see “
NISSAN”). When installing the main unit in TOYOTA vehicles, use the parts attached to the
vehicle (see “ TOYOTA”).
2. Wire as shown in “Wire Connection”.
3. Reassemble and secure the unit in the dashboard and set the face panel and center panel.

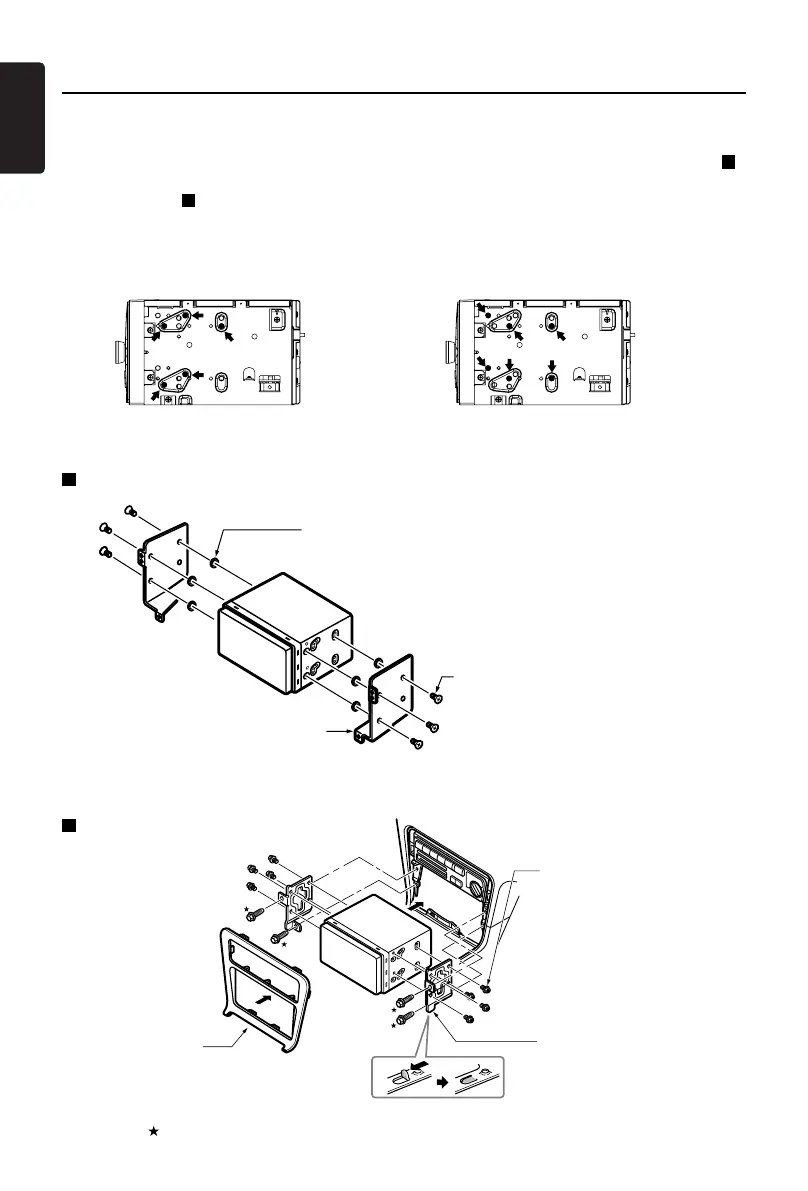

Mounting Screw Holes (Side View of the Main Unit)
NISSAN
6-Spacer (thickness: 1 mm)
8-Hexagonal screw (M5 × 6)
Center Panel *1
Screws marked
and mounting bracket are attached to the vehicle.
NISSAN
TOYOTA
6-Flat head screw (M5 × 6)
(attached to the main unit)
Mounting bracket
(1 pair for the left and right sides)
Mounting bracket
(1 pair for the left and right sides)
TOYOTA
*2
Installation Guide
To Next Page
