English

NX602

Cautions On Wiring

• Be sure to turn the power off before wiring. Be particularly careful where you route the wires.

• Keep them well away from the engine, and exhaust pipe, etc. Heat may damage the wires.

• If the fuse should blow, check to see if the wiring is correct. If a fuse is blown, replace it with a

new one of the same specication as the original.

• To replace the fuse, remove the old fuse of the power supply cord and insert the new one.

Note:

• Therearevarioustypesoffuseholder.Donotletthebatterysidetouchothermetalparts.

Note:

*1Somepanelopeningsaretoosmallfortheunitdependingonthevehicletypeandmodel.In

suchacase,trimtheupperandlowersidesofthepanelframebyabout0.5to1.5mmsothe

unitcanbeinsertedsmoothly.

*2Ifahookontheinstallationbracketinterfereswiththeunit,bendandflattenitwithanipperor

similartool.

Vehicles other than NISSAN and TOYOTA

In some cases the center panel may require modication. (Trimming, lling, etc.)

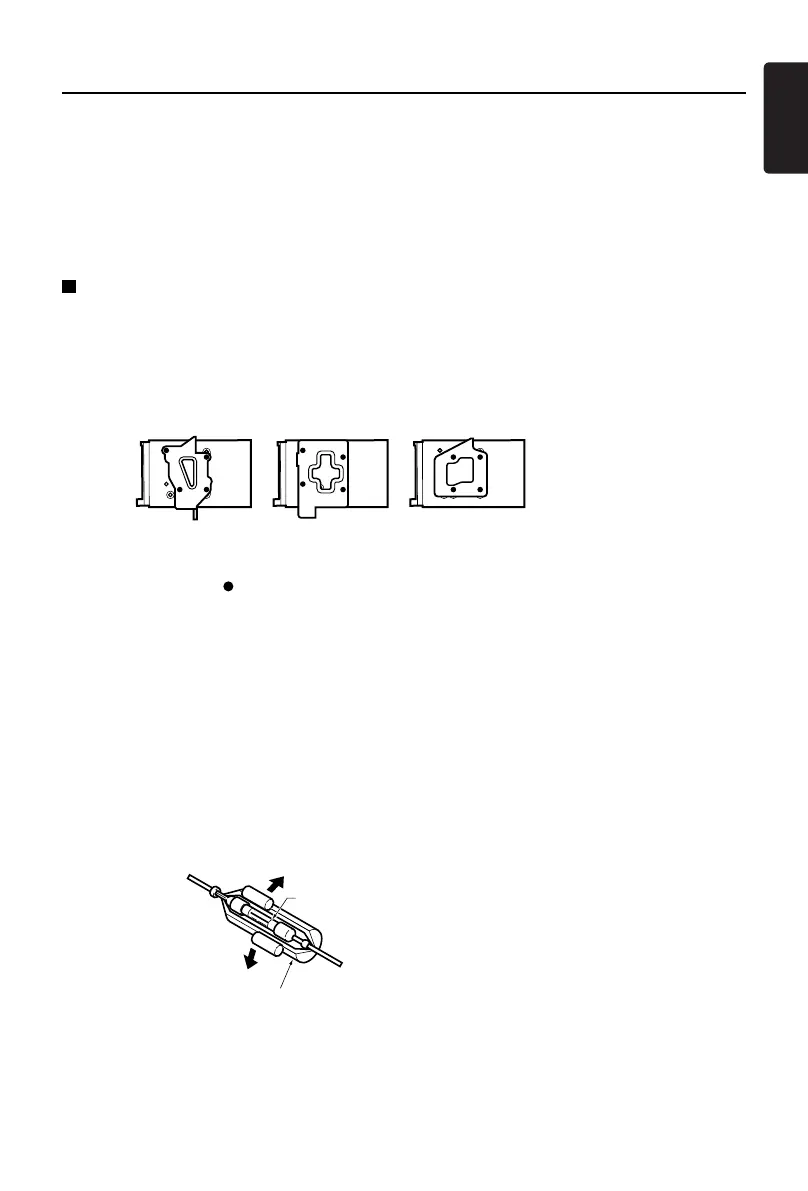

Typical Mounting Brackets

In some cases the center panel may require modication. (Trimming, lling, etc.)

Afx the screws to the

marks.

• After the connection, x the cord by a clamp or insulation tape for protection.

Fuse (15A FUSE)

Fuse holder

Example 1-3

Installation Guide
