Clarion NX602 Quick Start Guide

19
English
NX602

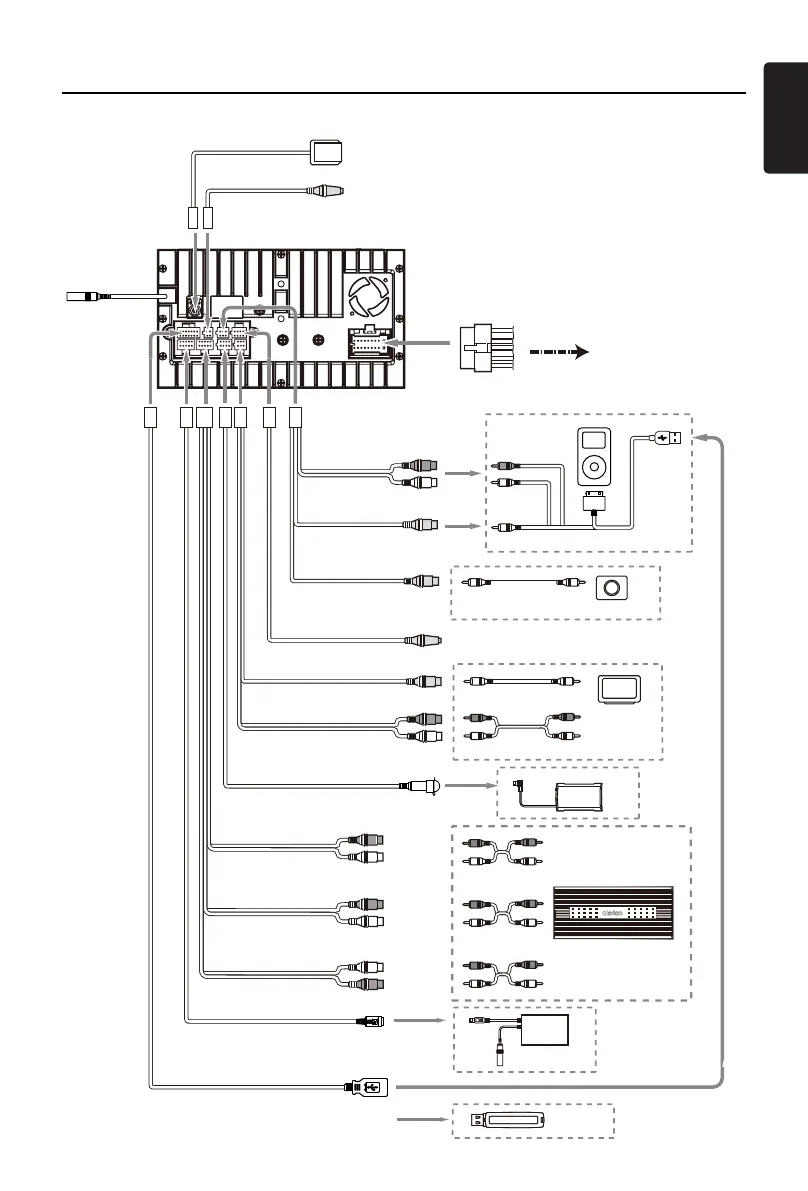

Wire Connection
SiriusXM (sold separately.)
THD301
(sold separately.)
USB Memory
Black
SiriusXM
Black
White
HD Radio
White
Refer to the right.
NX602
Connect it to the car power supply terminal
for illumination
Connect it to the car power supply terminal
for antenna
Blue/White wire (Amplifier turn-on lead)
Connect to remote turn-on lead of amplifier
18-Pin Connector Extension Lead
(attached to the source unit)
Brown wire (Phone mute lead)
Yellow wire (Memory back-up lead)
Red wire (Power lead)
Black wire (Ground lead)
Orange/White wire (Illumination lead)
Blue wire (Auto antenna lead)
Connect it to the car power supply terminal
for parking
Fresh Green wire (Parking)
Connect it to the car power supply terminal
for reverse
Purple/White wire (Reverse)
Connect to vehicle chassis ground
Connect to cellular phone mute lead.
Connect directly to battery
Accessory
12V
Front Right
Front Right
Gray
Gray
White
White
Purple
Purple
Green
Green
Gray/Black
Gray/Black
White/Black
White/Black
Purple/Black
Purple/Black
Green/Black
Green/Black
4-Speaker system
2-Speaker system
or
Rear Right
Rear Left
Not used.
Insulate each wire
Front Left
Front Left
6-Channel Amplifier
Video In
Audio In
Rear Zone
Monitor
Video Out
Rear Vision Camera
Yellow
VISUAL IN
Black
Yellow
CAMERA
Black
Red
White
AUX IN 2
Red
Steering Wheel Remote Control Terminal
Gray
Gray
External Microphone
Connection
Black
Black
GPS Antenna
(Black)
Black
USB connector
Red
White
Line Out
Front Right
Line Out
Front Left
Gray
Red
White
Line Out
Rear Right
Line Out
Rear Left
Black
Red
White
Subwoofer 1
Subwoofer 2
Purple
Yellow
VIDEO OUT
Black
Red
White
2 ZONE OUT
Green
Radio Antenna
(Black)
Video Out
iPod/iPhone
CCA-750 (sold separately)
or
• Be sure to connect SiriusXM cable and HD
Radio cable properly. Mistakenly connect to
SiriusXM cable and HD Radio cable may cause
damage to your unit or the connected device.
