If a monitor is installed in the rear zone
and connected to the rear zone AV
output, passengers in the back seat can
watch the DVD/iPod Video/AUX1/ AUX2
video separately from front source.
12
1. Touch the button to access the front
source.
2. Touch the button to close the rear
source.
Multi-Zone Operation
Independent sources can be played
simultaneously on the unit. For example,
a FM/AM console can be playback on
the front screen while DVD video is
available to rear passengers. But now
can’t select DVD video in front.
Access Rear-Zone
1. Touch the Rear button on Main Menu
to access the Rear Source.
2. Select a source to play.
Exit Rear-Zone
Touch the 2-Zone o button to close the
Rear Source.
Note:
1. If the source is selected as the front,
the source in rear can’t be selected.
2. If the source is selected as the rear,
the source in front can’t be selected.
3. Touch the Front button to access the
main menu but not close the Rear
Source.

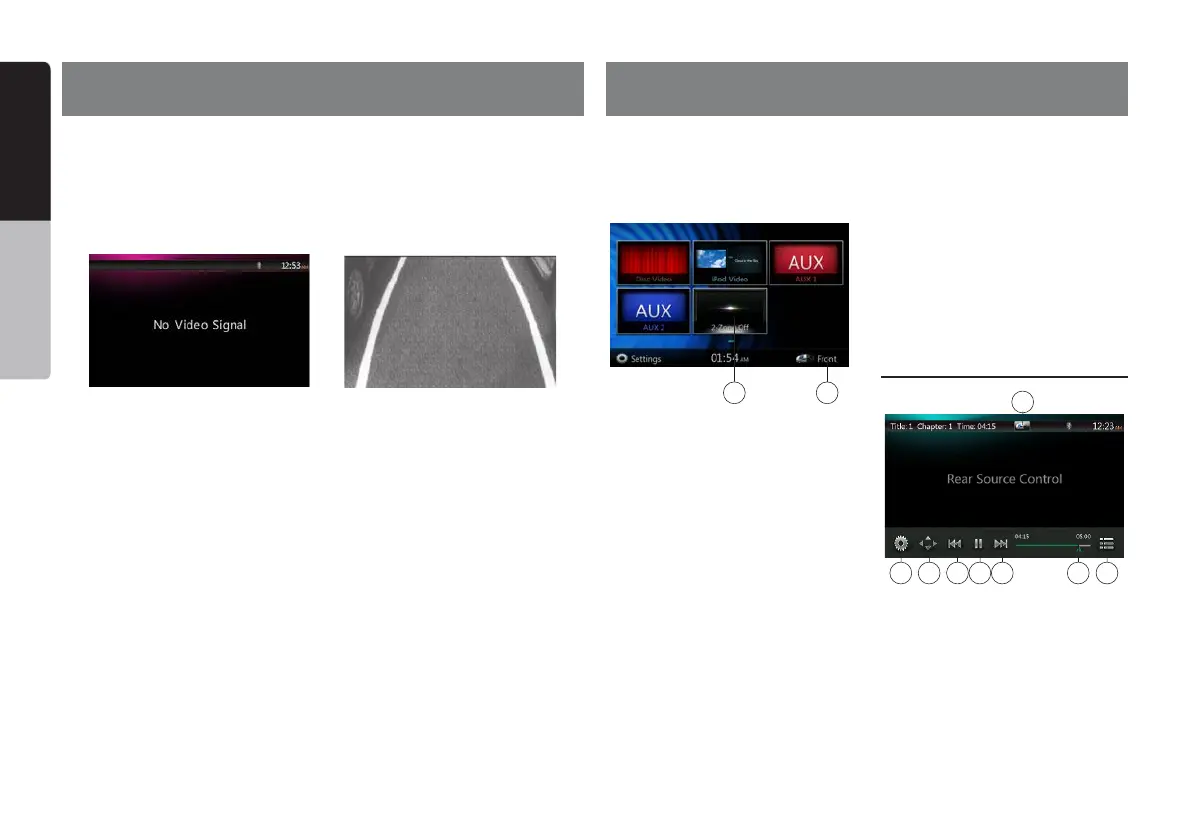

DVD Video in Rear
1 2 3 4 5 6 7
8
1 - Option button
2 - Show Cursor keys
3 - Previous Chapter /Fast Backward
button
4 - Play/Pause button
5 - Next Chapter /Fast Forward button
6 - Elapsed playing time
7 - Menu List button
8 - Front/Rear button
17. REAR SOURCE OPERATIONS16. CAMERA INPUT OPERATIONS
Switching to Camera mode
Touch [Camera] button on Main Menu.
The LCD will display the external camera video. The screen will display “No Video
Signal” message, if a valid camera is not connect to this head unit.
Press MENU button on Operational Panel to return to the Main Menu.
Note:
If the reverse cable is connected correctly to the car, the unit goes to camera mode
automatically when the car is in reverses.
