Disassembly
Removing the TV Tuner 2 - 17
2.Disassembly
Removing the TV Tuner
1. Turn off the computer, remove the battery (page 2 - 5) and the keyboard and shielding plate (page 2 - 13).
2. Carefully disconnect the antenna cable at point .
3. Gently pull the two release latches & on the sides of the socket in the direction indicated by the arrows.
4. The module will pop-up, and you can remove it.
4. TV Tuner Module
1
2 3
4
a.
b.
1
2
3
4

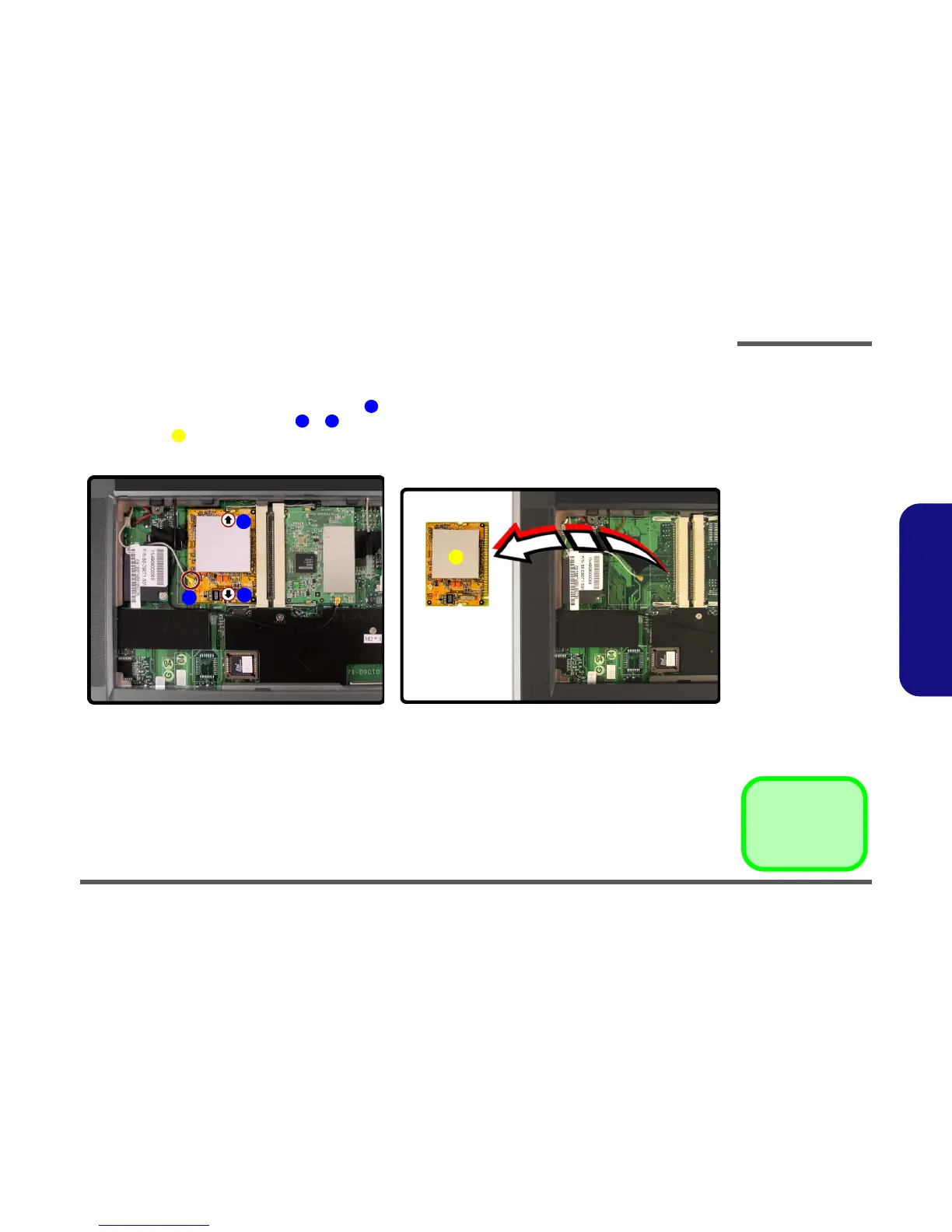

Figure 2 - 13
TV Tuner Removal
a. Disconnect the cable and
pull the release latches.
b. Remove the module.
To Next Page
