Disassembly
Removing the 2nd Hard Disk from Caddy Bay 2 - 11
2.Disassembly
Removing the 2nd Hard Disk from Caddy Bay

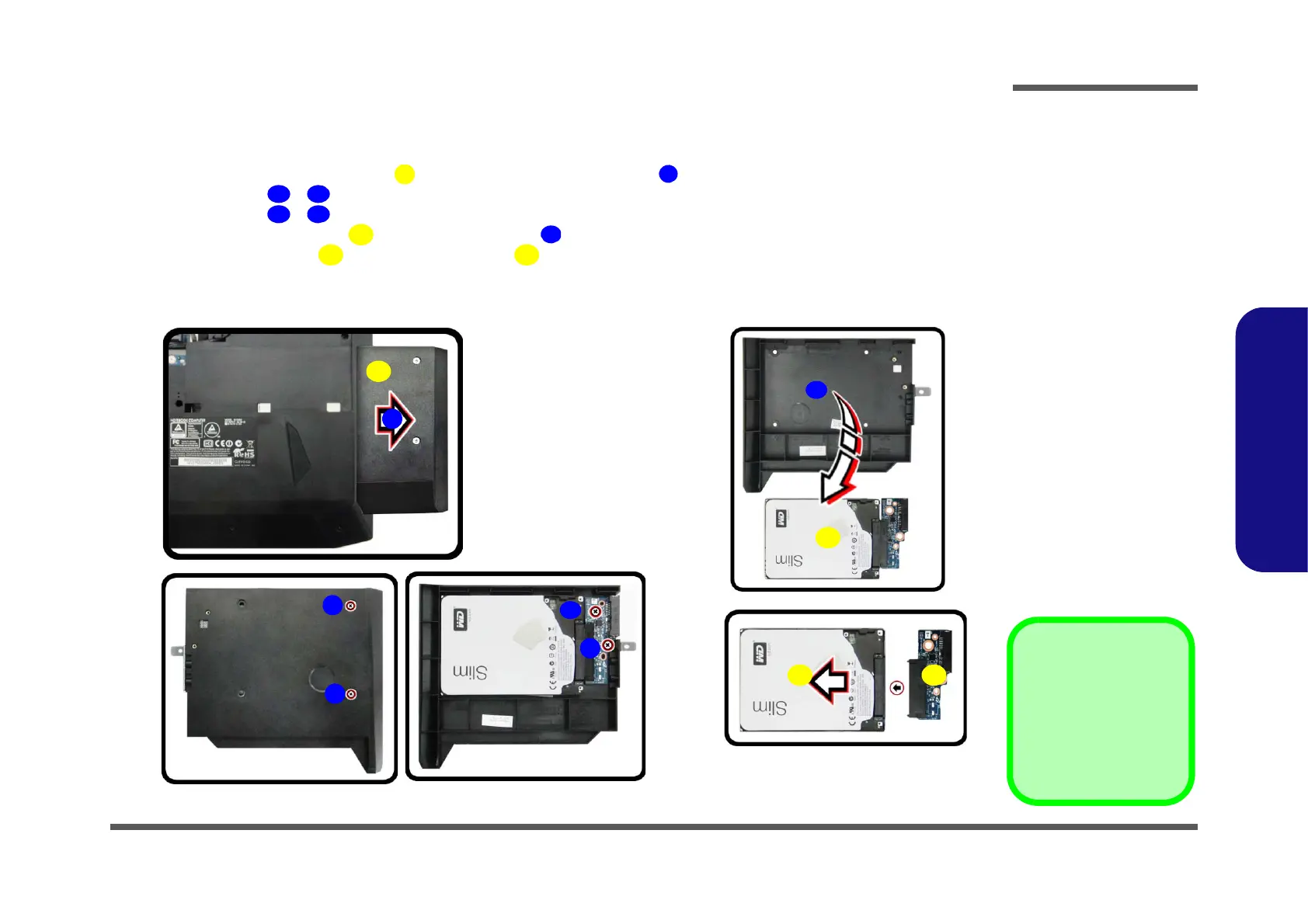

Figure 7
2nd HDD Removal
a. Push the caddy bay out
off the computer.
b. Remove the screws.
c. Lift the hard disk assem-
bly out of the caddy bay
d. Separate the hard disk
and connector.
1. Turn off the computer, remove the battery (page 2 - 5), and bottom case (page 2 - 8).
2. Carefully push out the caddy bay out in the direction of the arrow (Figure 7a
).
3. Remove screws -
(will depends on the HDD type) from the bottom of the caddy bay.
4. Remove screws -
to release the hard disk assembly (Figure 7b).
5. Lift the hard disk assembly out of the caddy bay (Figure 7c).
6. Separate the hard disk and connector board (Figure 7d).
7. Reverse the process to install a new hard disk.
8. Restart the computer to allow it to automatically detect the new device.
6
1
2
3
4
5
6
7
8
9
10

1. Dummy Bay
7. HDD Assembly
9. Hard Disk
10. Connector Board
•4 Screws
2
1
a.
d.
9
b.
c.
6
5
3
4
8
7
10
