Clevo N170SD User Manual

Schematic Diagrams
B - 36 HDMI, RJ45
B.Schematic Diagrams
HDMI, RJ45
Sheet 35 of 55
HDMI, RJ45
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

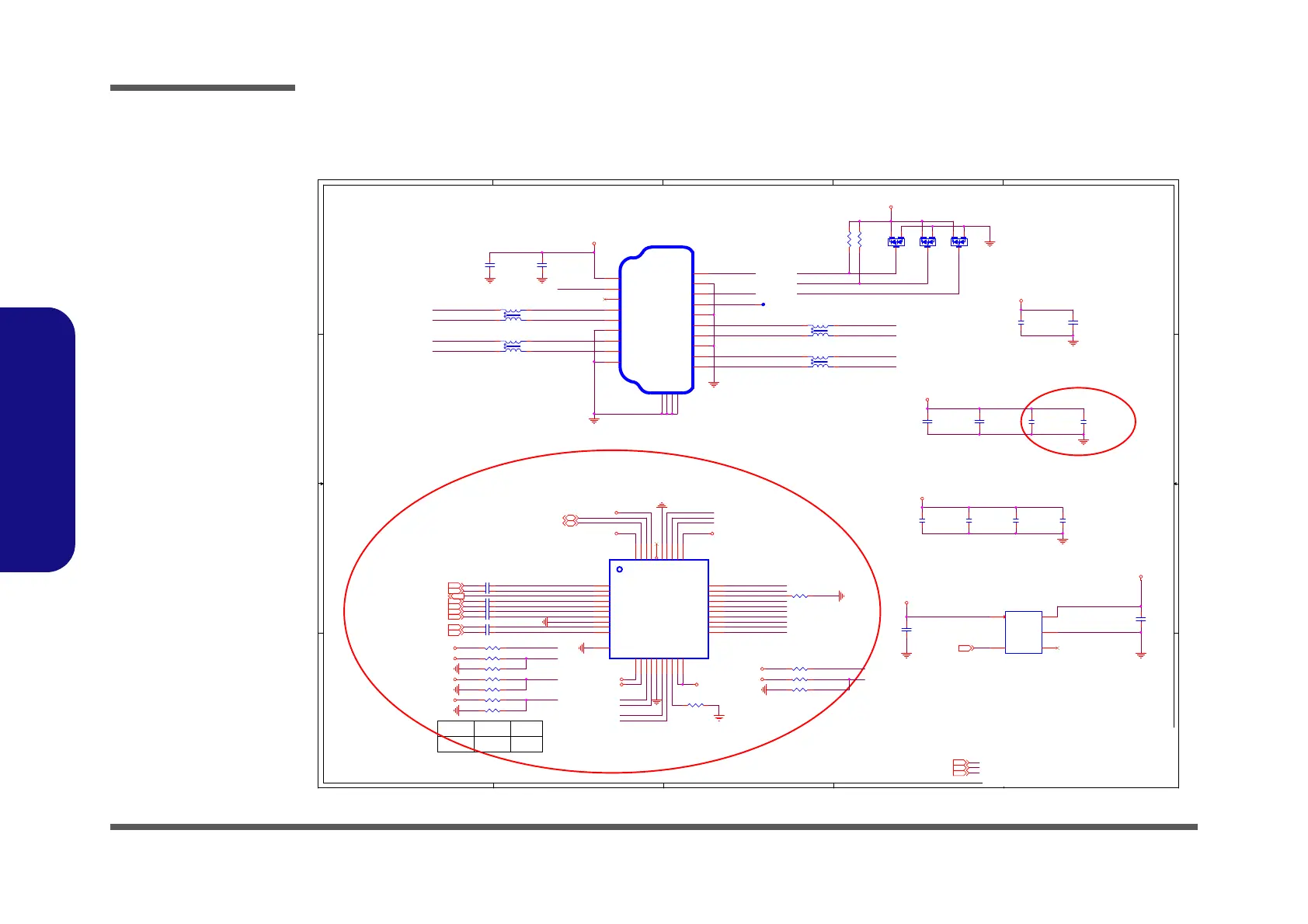

HDMI CONNECTOR ( W/ HDMI Repeater)
PIN GND1~4=GND
For ESD
HDMI Repeater
LHM
6.5db 9.5db
EQ
3db
0.2A
100 mil
100 mil
20141014 D02
6-03-08407-030
20141024
TMDS_DATA2#
TMDS_DATA1#
HDMI_CEC
HDMI_SCL-C
HDMI_SDA-C
HDMI_HPD-C
TMDS_DATA1
HDMI_HPD-C
HDMI_SDA-C
HDMI_SCL-C
HDMI_CLOCKN_C
HDMI_CLOCKP_C
HDMI_DATA2P_C
HDMI_DATA2N_C
HDMI_DATA1P_C
HDMI_DATA1N_C
HDMI_DATA0P_C
HDMI_DATA0N_C
TMDS_DATA2-R
TMDS_DATA2#-R
TMDS_DATA1-R
TMDS_DATA1#-R
TMDS_DATA0#-R
TMDS_DATA0-R
TMDS_CLOCK-R
TMDS_CLOCK#-R
HDMI_SCL-C
HDMI_SDA-C
DCIN_EN
DDCBUF
PRE
EQ
ISET
HDMI_HPD-C
CFG
DCIN_EN
DDCBUF
PRE
CFG
EQ
ISET
HDMI_HPD
SUSB
TMDS_DATA0#-R
TMDS_DATA0-R
TMDS_DATA0#
TMDS_DATA0
TMDS_DATA2#-R
TMDS_DATA2-RTMDS_DATA2
TMDS_CLOCK#-R
TMDS_CLOCK-R
TMDS_DATA1#-R
TMDS_DATA1-R
TMDS_CLOCK#
TMDS_CLOCK
HDMI_5VS
HDMI_5VS
1.5VS
3.3VS
1.5VS
3.3VS
1.5VS
1.5VS
3.3VS
1.5VS
1.5VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS
5VS
HDMI_5VS
1.5VS[22,24,27,28,29,30,41]
5VS[13,22,25,31,36,37,39,42,44]
3.3VS[3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,36,37,38,39,42,44]
HDMI_CTRLDATA[25]
HDMI_CTRLCLK[25]
HDMI_HPD[25]
HDMIC_C0CP[6]
HDMIC_C0CN[6]
HDMIC_C2CP[6]
HDMIC_C2CN[6]
HDMIC_CLKCP[6]
HDMIC_C1CP[6]
HDMIC_CLKCN[6]
HDMIC_C1CN[6]
SUSB[13,39,41]
Title
Size Document Number R e v
Date: Sheet
of
6-71-N1500-D02A
2.0A
[35] HDMI,RJ45
A3
35
55Tuesday, December 16, 2014
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number R e v
Date: Sheet
of
6-71-N1500-D02A
2.0A
[35] HDMI,RJ45
A3
35
55Tuesday, December 16, 2014
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number R e v
Date: Sheet
of
6-71-N1500-D02A
2.0A
[35] HDMI,RJ45
A3
35
55Tuesday, December 16, 2014
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
D17
*BAV99
A C
AC
R356 *20K_04
C601
10u_10V_Y5V_08
R21 *4.7K_04
R13
2.2K_04
C36
0.1u_10V_X7R_04
R360 *4.7K_04
U3
PS8407A
GND
15
PRE
16
EQ/I2C_ADDR0
17
REXT
18
VDDTA
19
VDDTX
20
OUT_CKn
21
OUT_CKp
22
CFG/I2C_ADDR1
23
OUT_D0n
24
OUT_D0p
25
OUT_D1n
26
OUT_D1p
27
HPD_SNK
28
SDA_SRC
39
SCL_SRC
38
VDD33
37
PD#
36
GND
35
ISET
34
SDA_SNK
33
SCL_SNK
32
VDDTX
31
OUT_D2p
30
OUT_D2n
29
IN_D2p
1
IN_D2n
2
HPD_SRC
3
IN_D1p
4
IN_D1n
5
IN_D0p
6
IN_D0n
7
I2C_CTL_EN
8
IN_CKp
9
IN_CKn
10
VDD33
11
VDDRX
12
DCIN_EN/SCL_CTL
13
DDCBUF/SDA_CTL
14
Epad
41
VDDRX
40
C7 0.1u_10V_X7R_04
R12
2.2K_04
L36 *HDMI2012F2SF-900T04-SHORT
1
4
2
3
C38
0.1u_10V_X7R_04
C597
0.1u_16V_Y5V_04
C608
0.01u_16V_X7R_04
R14 *4.7K_04
D1
*BAV99
A C
AC
C18 0.1u_10V_X7R_04
C602
0.01u_16V_X7R_04
C37
0.1u_10V_X7R_04
R359 *4.7K_04
C604
22u_6.3V_X5R_08
C5 0.1u_10V_X7R_04
C25
0.1u_10V_X7R_04
R353 *4.7K_04
C598
22u_6.3V_X5R_08
C22 0.1u_10V_X7R_04
L34 *HDMI2012F2SF-900T04-SHORT
1
4
2
3
C603
0.01u_16V_X7R_04
R2 *4.7K_04
C6
0.1u_10V_X7R_04
J_HDMI1
116E-1C001-20Y
SHIELD2
2
TMDS DATA1+
4
TMDS DATA1-
6
SHIELD0
8
TMDS CLOCK+
10
TMDS CLOCK-
12
RESERVED
14
SDA
16
+5V
18
TMDS DATA2+
1
TMDS DATA2-
3
SHIELD1
5
TMDS DATA0+
7
TMDS DATA0-
9
CLK SHIELD
11
CEC
13
SCL
15
DDC/CEC GND
17
HOT PLUG DETECT
19
GND
GND1
GND
GND2
GND
GND3
GND
GND4
C16 0.1u_10V_X7R_04
C826
*10u_6.3V_X5R_06
R357 4.7K_04
C23 0.1u_10V_X7R_04
R22 *4.7K_04
C21 0.1u_10V_X7R_04
C825
10u_6.3V_X5R_06
L33
*HDMI2012F2SF-900T04-SHORT
1
4
2
3
R20 4.7K_04
R23 4.99K_1%_04
L35
*HDMI2012F2SF-900T04-SHORT
1
4
2
3
C24 0.1u_10V_X7R_04
D3
*BAV99
A C
AC
U26
SY6288DAAC
PCB Footprint = M-SOT23-5A
VOUT
1
VIN
5
GND
2
EN#
4
OC#
3
R19 *4.7K_04
