Clevo NP50DB User Manual

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Pre-Filter Switch
Total Power
NVVDD
Rubband
2019/12/19
Rubband
2019/12/27
PWR_SRC_NV_VINP_R
ADC_IN_N
ADC_IN_P
PFM_ADC_FILTER_MODE
PFM_ADC_MUX_SEL_R
PFM_BG_REF_OUT
PFM_BS_REF
PFM_CH1_BS_IN1
PFM_CH1_BS_IN2
PFM_CH1_SH_IN_N1
PFM_CH1_SH_IN_N2
PFM_CH1_SH_IN_P1
PFM_CH1_SH_IN_P2
PFM_CM_REF_IN
PFM_FILTER_GND_F ET
PFM_FILTER_SH_O1
PFM_FILTER_SH_O2
PFM_SKIP_R
U812_VCC
PWR_SRC_VINN_R
PWR_SRC_NV_VINP_R
PFM_PF_BSOK_R
PWR_SRC_VINP_R
PFM_PF_BSOK_RC
0.400
PWR_SRC_NV_VINN_R
PWR_SRC_VINP_R
PFM_ADC_FILTER_EN
PFM_FILTER_SH_O1
GND
GND
GND
GND
GND
GND
GND GND
5VS
GND
GND
GND
GND
U812_VCC
VIN
PWR_SRC_NV_FB
PWR_SRC_NV_FB
1V8_AON
PW R_SR C_NV
U812_VCC
VDD3NV3V3
GND
ADC_IN_P 16
ADC_IN_N 16
GPIO22_OC_WARN*16
PFM_ ADC_FI LTER_E N49
5VS21,23,25,33,37,38,39,4 0,41
1V8_AON10, 12,13,14,15,16, 17,19,55
VDD34,24,25,27,30,32,33,34 ,36,38,39,40, 41,42,43,46,47, 49,50,51,52,53, 55
NV3V310,16,50, 53,55
PWR_SRC_NV_FB52,53
PWR_SRC_NV50, 51
VIN22,27,41,42,43, 44,45,46,47,48,49
DGPU _OVRM28
Titl e
Size
Document Number R e v
Date: Sheet
of
6-71-NP500-D02
D02
[54] DGPU Power Measurement
A2
54 59Monday , February 24, 2020
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
N18P
Titl e
Size
Document Number R e v
Date: Sheet
of
6-71-NP500-D02
D02
[54] DGPU Power Measurement
A2
54 59Monday , February 24, 2020
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
N18P
Titl e
Size
Document Number R e v
Date: Sheet
of
6-71-NP500-D02
D02
[54] DGPU Power Measurement
A2
54 59Monday , February 24, 2020
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
N18P
C351 47p_25V_NPO_02
NCP45492
C355 15000p_50V_X7R_06
NCP45492
Q39
BTN3904
M-SOT23-CBE
NCP45492
B
E C
R73 75K_1%_04
NCP45492
R72 475_1%_04
NCP45492
R70 75K_1%_04
NCP45492
R78
49.9K_1%_04
NCP45492
R76 100_1%_04
NCP45492
R75 0_04
NCP45492
R88
0_04
NCP45492
R95 0_04
NCP45492
R74 100_1%_04
NCP45492
C369
1000p_50V_X7R_04
NCP45492
R91 365K_1%_04
NCP45492
R87
*10K_1%_04
NCP45492
R425
90.9K_1%_04
NCP45492
R96
10K_1%_04
NCP45492
R77 0_04
NCP45492
C359
1u_6.3V_X5R_02
NCP45492
RS1
1206
RL1632T4F-B-R005-FNH
1%
COMMON
NCP45492
1
2 3
4
R94 0_04
NCP45492
R685 3.3K_1%_04
OVRM
R84 649_1%_04
NCP45492
R86
0_04
NCP45492
R81 0_04
NCP45492
R80
10K_1%_04
NCP45492
R90
1K_1%_04
NCP45492
C352 47p_25V_NPO_02
NCP45492
Q66
MTA90N03ZN3
OVRM
G
DS
R82
*10K_1%_04
NCP45492
C366
*1000p_50V_X7R_04
NCP45492
R69 649_1%_04
NCP45492
C365
1000p_50V_X7R_04
NCP45492
R686
100K_04
OVRM
RS2
1206
RL1632T4F-B-R005-FNH
1%
COMMON
NCP45492
1
2 3
4
C353 15000p_50V_X7R_06
NCP45492
R97 243K_1%_04
NCP45492
C354 1000p_50V_X7R_04
NCP45492
R99
680K_1%_04
NCP45492
C356 1000p_50V_X7R_04
NCP45492
R71 475_1%_04
NCP45492
C371 47p_25V_NPO_02
NCP45492
R79 *0_04
NCP45492
C372 47p_25V_NPO_02
NCP45492
C368
1000p_50V_X7R_04
NCP45492
R83 10K_1%_04
M-R 04 02
NCP45492
U3
QFN32
COMMON
NCP45492XMNTWG
NCP45492
1
SH_N1
2
SH_P1
3
BS_IN1
4
SH_N2
5
SH_P2
6
BS_IN2
7
SH_O2
8
NC
9
GND_FET
10
SH_O3
11
BS_IN3
12
SH_P3
13
SH_N3
14
BS_IN4
15
SH_P4
16
SH_N4
17
SH_O4
18
NC
19
DIFF_N
20
DIFF_P
21
NC
22
CM_REF_IN
23
BG_REF_OUT
24
BS_REF
25
SKIP
26
MODE
27
VCC
28
EN
29
MUX_SE L
30
BS_OK
31
NC
32
SH_O1
33
GND
R85
*0_04
NCP45492
Sheet 54 of 59

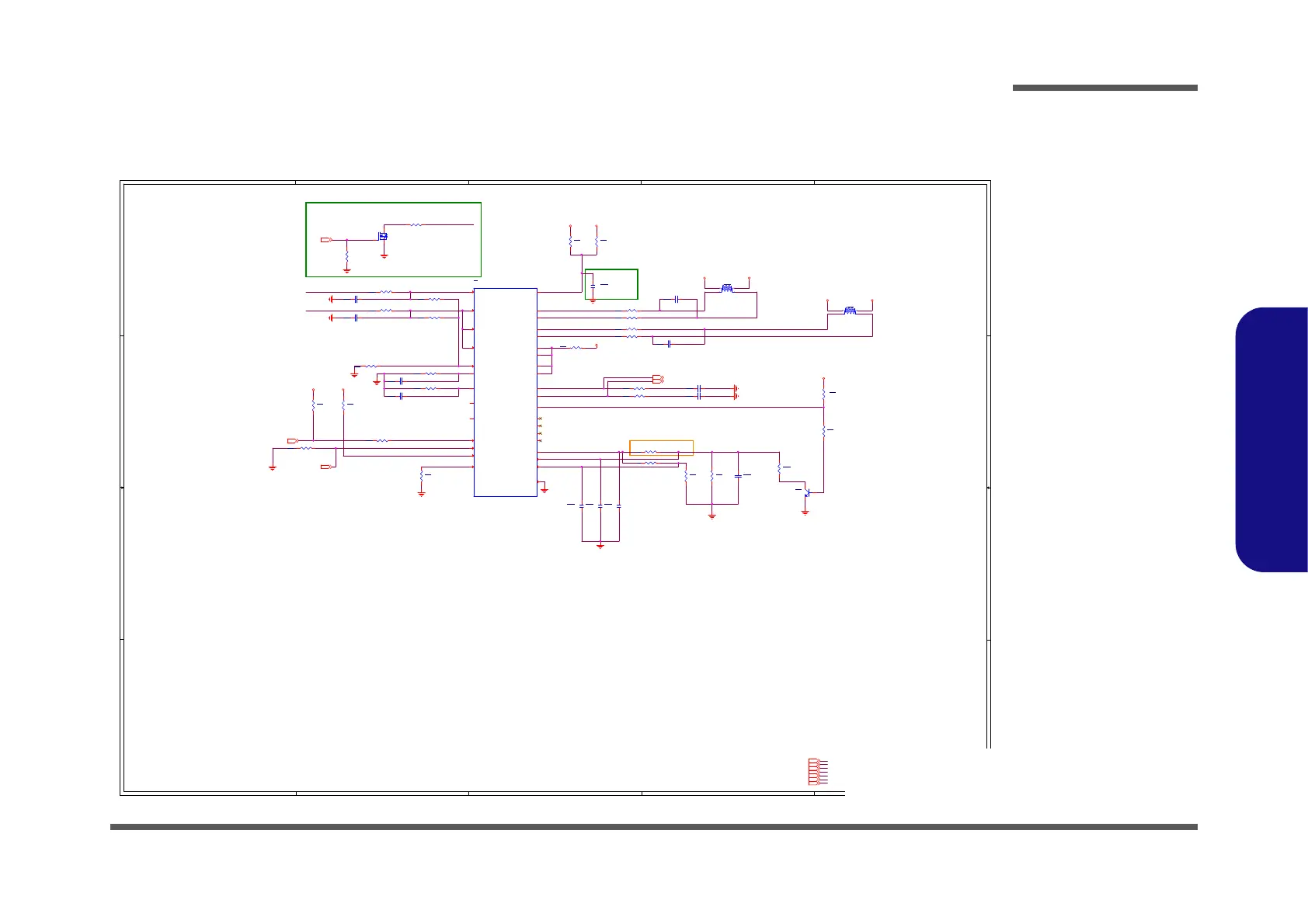

DGPU Power
Measurement
Schematic Diagrams
DGPU Power Measurement B - 55
B.Schematic Diagrams
DGPU Power Measurement
