Disassembly
2 - 8 Removing the M.2 SSD Module
2.Disassembly
Removing the M.2 SSD Module
M.2 SSD Removal Procedure
1. Turn off the computer, turn it over, remove the battery (page 2 - 6).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 4a).
3. Remove the screw
(Figure 4b).
4. The M.2 SSD module (Figure 4c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the screws and make sure that the thermal
pad is attached).

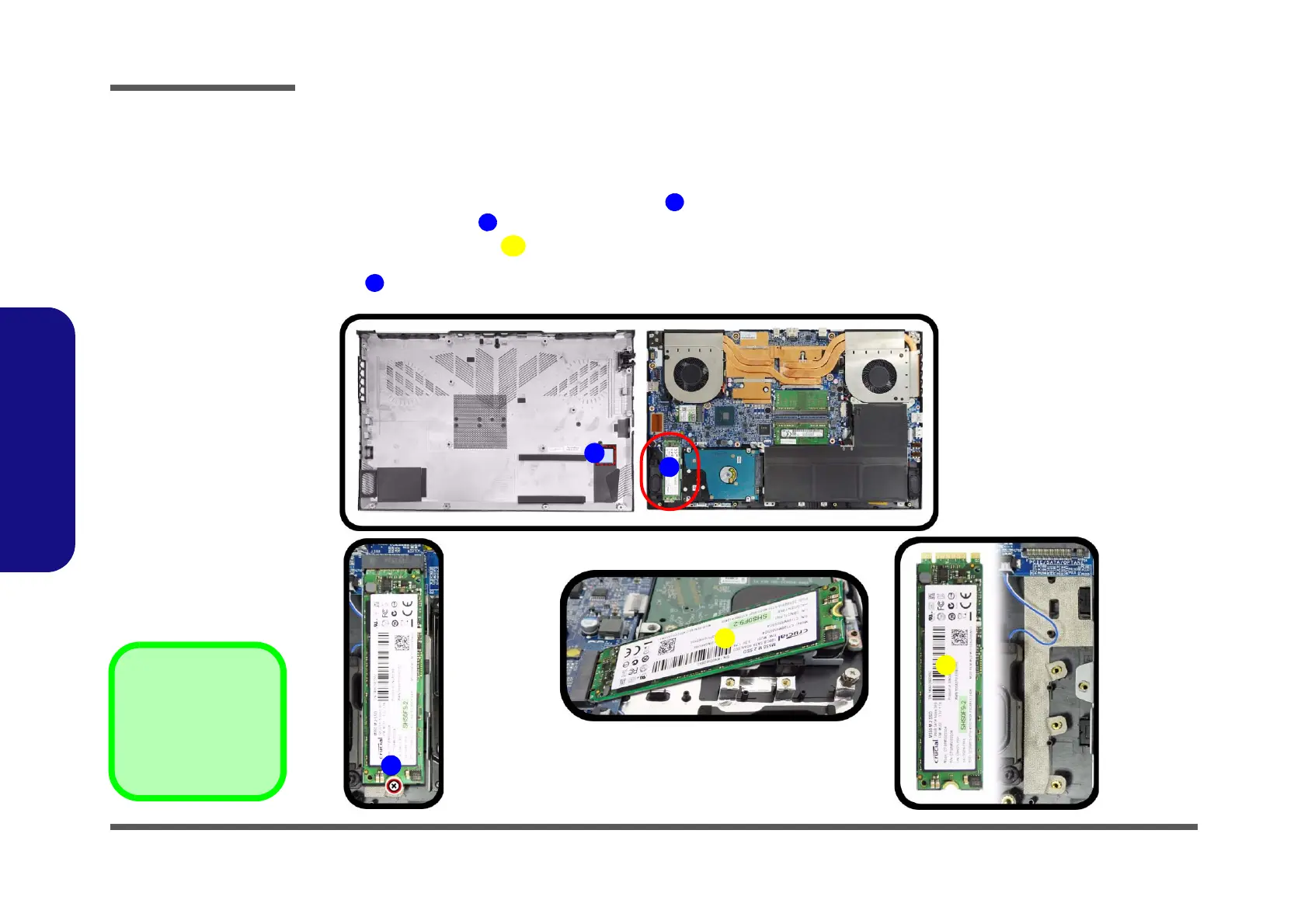

Figure 4
M.2 SSD Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
