Disassembly
2 - 6 Removing the Keyboard
2.Disassembly
Removing the Keyboard
1. Turn off the computer and remove the battery (page 2 - 5).
2. Use only the small tool
provided (see picture below) to carefully press the four keyboard latches - at the
top of the keyboard to elevate the keyboard from its normal position (Figure 2a).
3. Carefully lift the keyboard
up, being careful not to bend the keyboard ribbon cable (Figure 2b).
4. Disconnect the keyboard ribbon cable from the locking collar socket
(Figure 2b)
5. Carefully lift up the keyboard
(Figure 2c) off the computer.
6. Remove screws - to release the bottom case (Figure 2d
).
A
1
4
5
6
6
7
5
8
11
a.
b.
2 3 41
7
5
5
c.
6
d.
Keyboard Tabs
A
7
8
9
10
11
e.

Re-Inserting the Key-
board
When re-inserting the
keyboard, align first
the three keyboard
tabs (Figure 2e) that
are located at the bot-
tom, to the slots in the
case.

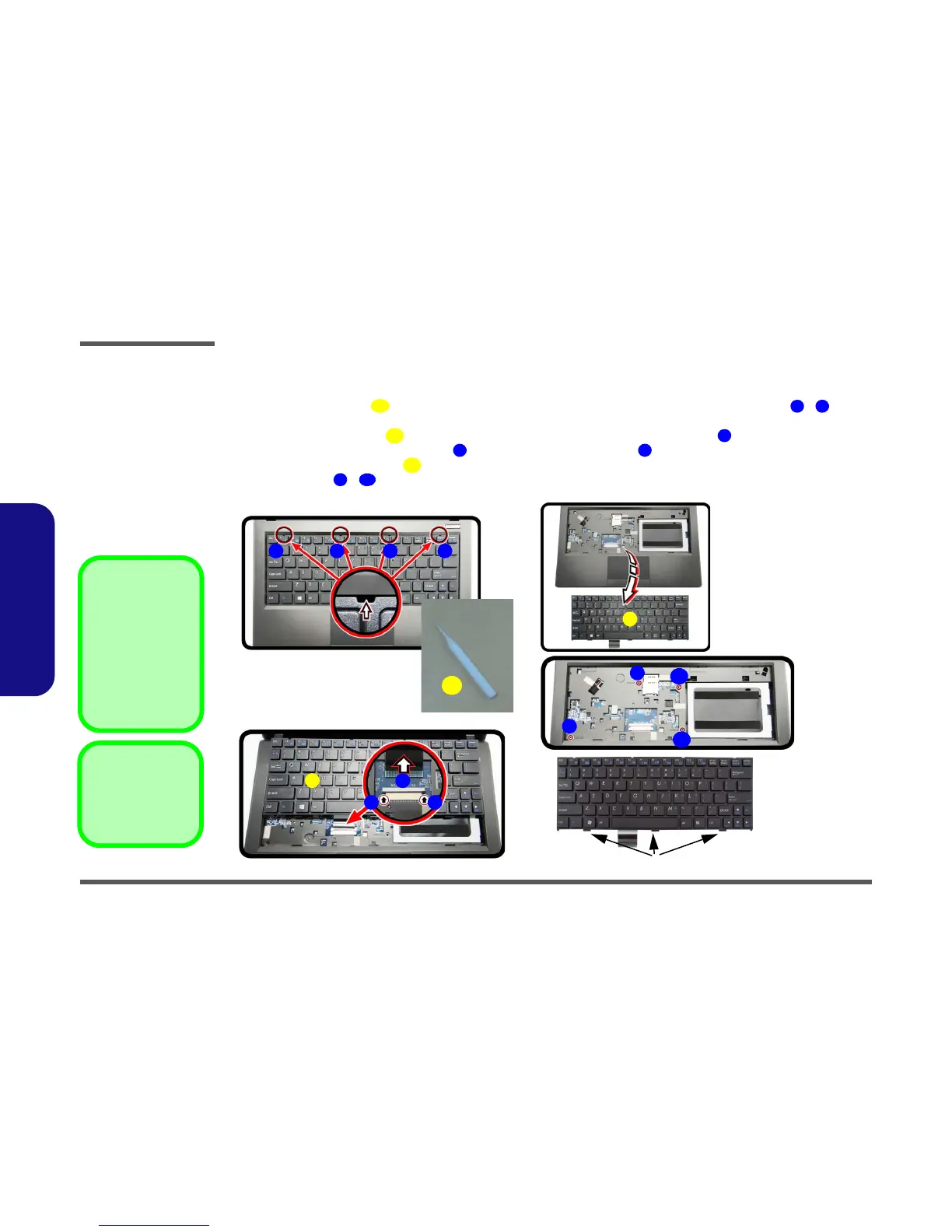

Figure 2
Keyboard Removal
a. Press the four latches to
release the keyboard.
b. Lift the keyboard up and
disconnect the cable
from the locking collar.
c. Remove the keyboard.
d. Remove screws to re-
lease bottom case.

