2 - 12 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5), keyboard (page 2 - 6), and bottom case (page 2 - 7).
2. The Wireless LAN module will be visible at point (Figure 8a
) on the mainboard.
3. Carefully disconnect cables & , then remove screw from the module socket (Figure 8b
).
4. The Wireless LAN module (Figure 8c) will pop-up.
5. Lift the Wireless LAN module (Figure 8d) up and off the computer.

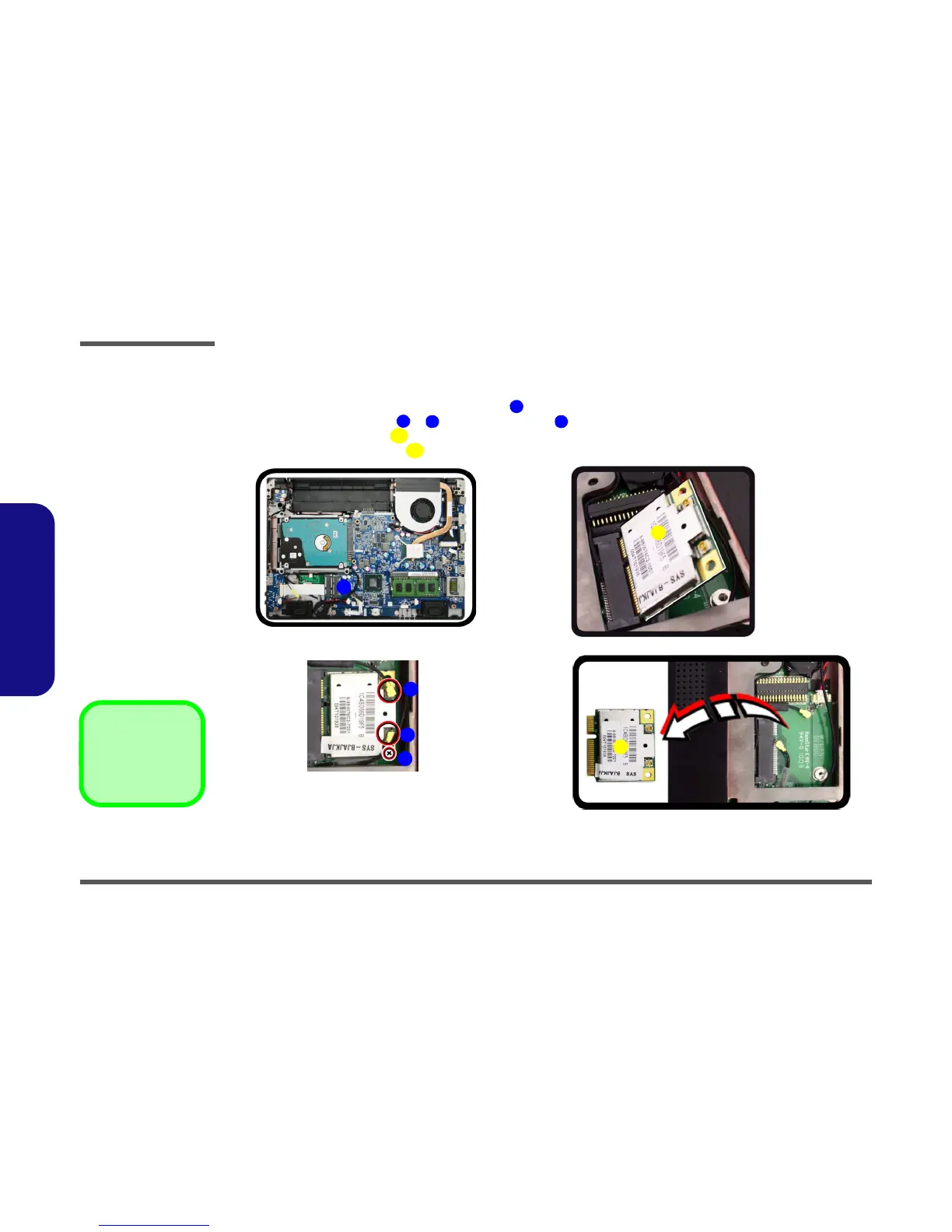

Figure 8
Wireless LAN
Module Removal
a. Locate the wireless LAN
module.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
d. Lift the WLAN module
out.
Note: Make sure you
reconnect the antenna
cable to ‘’1’’ +
‘’2’’socket (Figure
b).
1
2
3
4
5
5
5
4
b.
a.
2
3
1
5
d.
c.

5. WLAN Module.
•1 Screw
