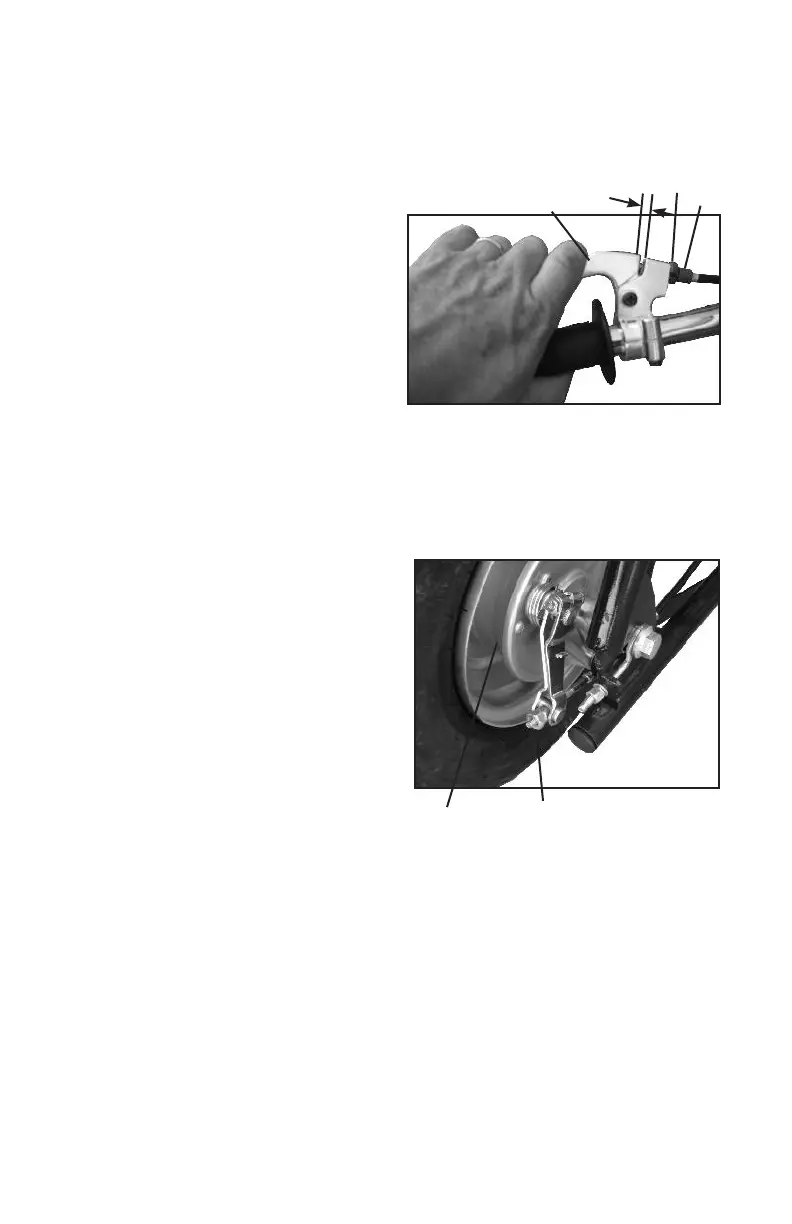

Brake Lever Adjustment
The front left brake lever (1) should
have 2.0 - 4.0mm (0.08 - 0.16) of free
play.
To adjust brake lever free play:
1. Loosen the Jam nut (2) on the brake
cable.
2. Turn the adjuster nut (3) until the
correct amount of free-play is
achieved.
1
3
2
2.0 - 4.0mm
(0.08 - 0.16 in)
Valve Clearance:
Adjusting the valves should be done
by an authorized service center.
Proper valve gap will help Mini Bike
run at peak performance. Follow
the valve gap adjustment intervals
listed in the maintenance chart.
Proper Valve Clearance
Intake: 0.1 - 0.15 mm
Exhaust: 0.15 - 0.2 mm
MAINTENANCE
Brakes
Brake Adjustment
The brake adjustment nut (4) is
located on the rear brake drum as-
sembly (5) located on the rear wheel
To adjust brakes, turn the
adjusting nut (4) clockwise to increase
braking, counter clockwise to decrease
braking.
4
5
22
