Removable Drives 6-5
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Jennifer Hale Saved by: Jennifer Hale Saved date: 10/07/98 2:03 PM
Part Number: 387792-001 File name: ch06.doc
Hard Drives
Removing a Hard Drive from the Hard Drive Bay
As a precautionary measure, Compaq recommends that you back
up all information on the hard drive.
Close the display and proceed with the following steps:
1. Save your work, exit all applications, and turn off the
computer.

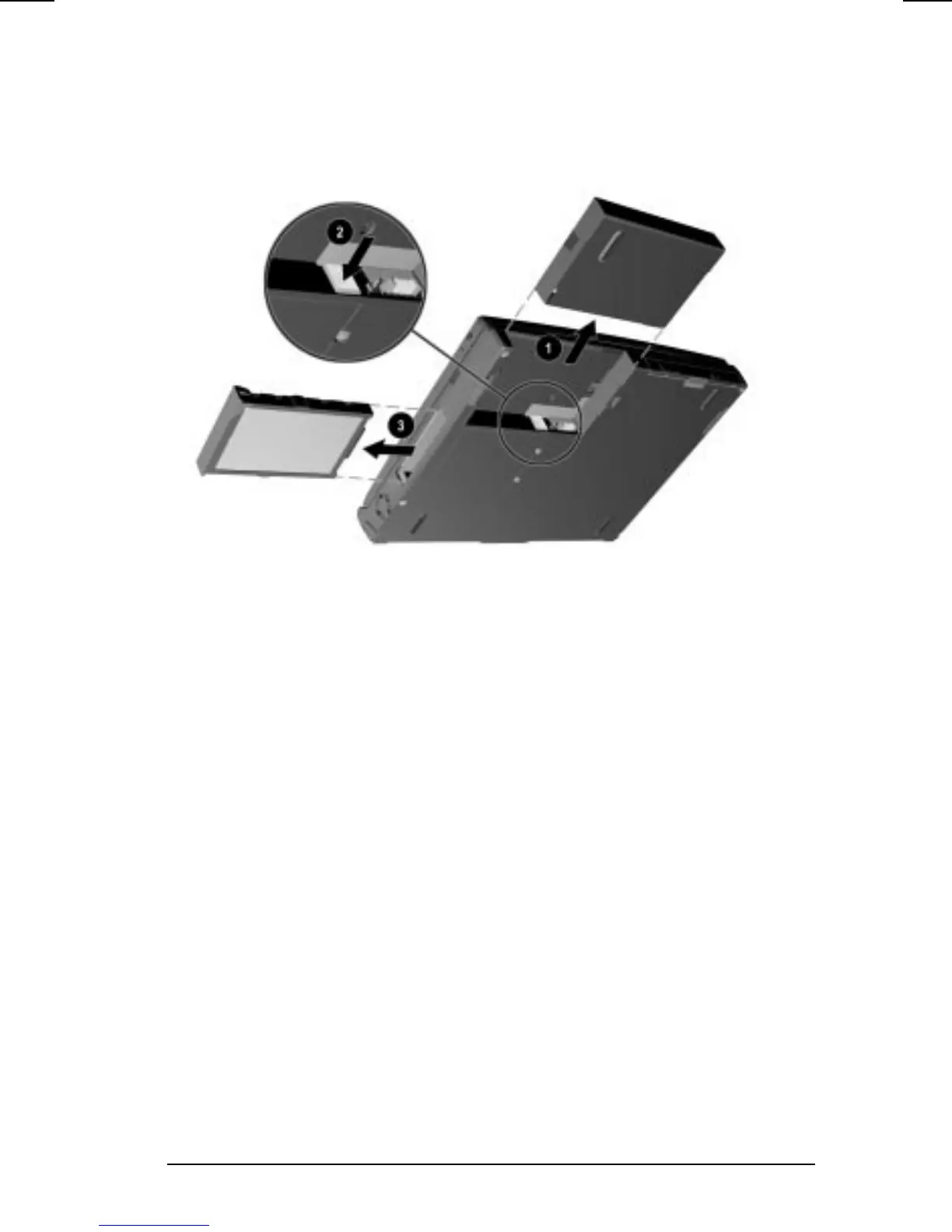

2. Remove the battery from the battery bay 1.
3. Eject the hard drive by pushing the button located in the empty
battery bay 2.
4. Pull the hard drive from the hard drive bay 3.
To Next Page
