OPERATION
Thread sealing
tape
1/4in.male
connector fitting
1/4in.male
connector fitting
Tire gauge
Longination
chuck
Coil hose

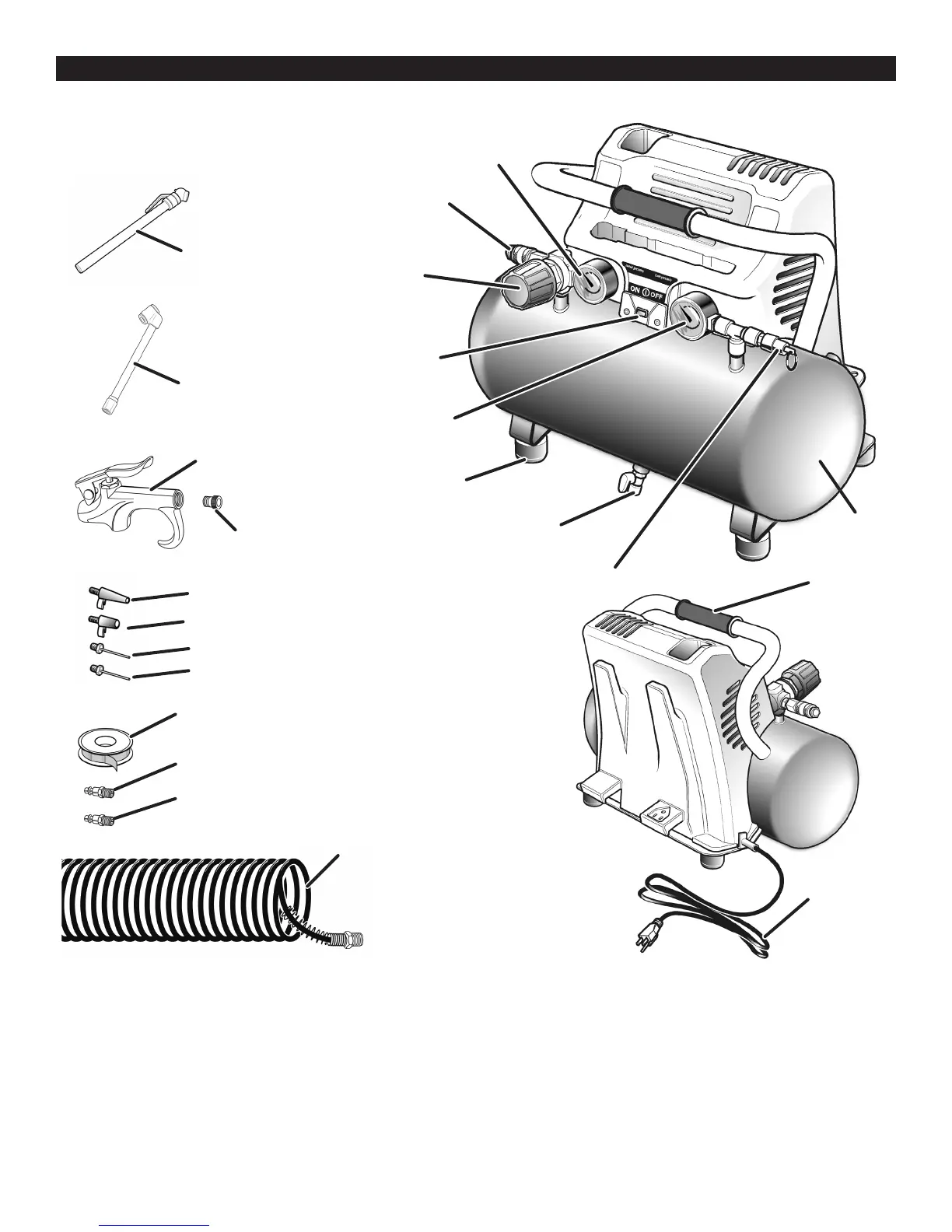

KNOWYOURAIRCOMPRESSOR(see gure 2)
Before attempting to use this product, familiarize yourself with all
operating features and safety rules.
Oil-freeuniversalmotor
Your air compressor features permanently lubricated bearings.
Air compressor pump
To compress air, the piston moves up and down in the cylinder.
On the down stroke, air is drawn in through the air intake valve
while the exhaust valve remains closed. On the upstroke, air is
compressed, the intake valve closes and compressed air is forced
out through the exhaust valve, into the discharge line, through the
check valve and into the air tank.
On/Off power switch
This switch is used to start or stop the air compressor. Moving the
switch to the (ON) position will provide automatic power to the
pressure switch which will allow the motor to start when the air
tank pressure is below the factory set cut-in pressure. When in
the (ON) position, the pressure switch stops the motor when the
air tank pressure reaches the factory set cut-out pressure. Moving
Drainvalve
Foot
Tank
pressure
gauge
Electrical
cable
Handle
Fig. 2
Safety
valve
Pressure
regulator
knob
Regulator
pressure
gauge
Quick
coupler
On/Off power
switch
Inflation nozzle
Inflation nozzle
Inflation needle
Inflation needle
Tank
Ination
adapter
Blow gun
