INSTALLING THE SEAT
1. Raise the seat base (see Figure 1).
2. Align the holes in the seat bottom with the holes in
the seat base.
3. Secure the seat to the seat base with two 5/16-18 x
3/4 serrated head bolts for the rear seat slots, and
two 5/16-18 x 3/4 shoulder bolts for the front slots.
4. Tighten to 14-19 ft-lbs (19-25 Nm).
/
J
5/16-18 x 3/4
19-25 Nm
14-19 ft-lbs
5/16-18 x 3/4

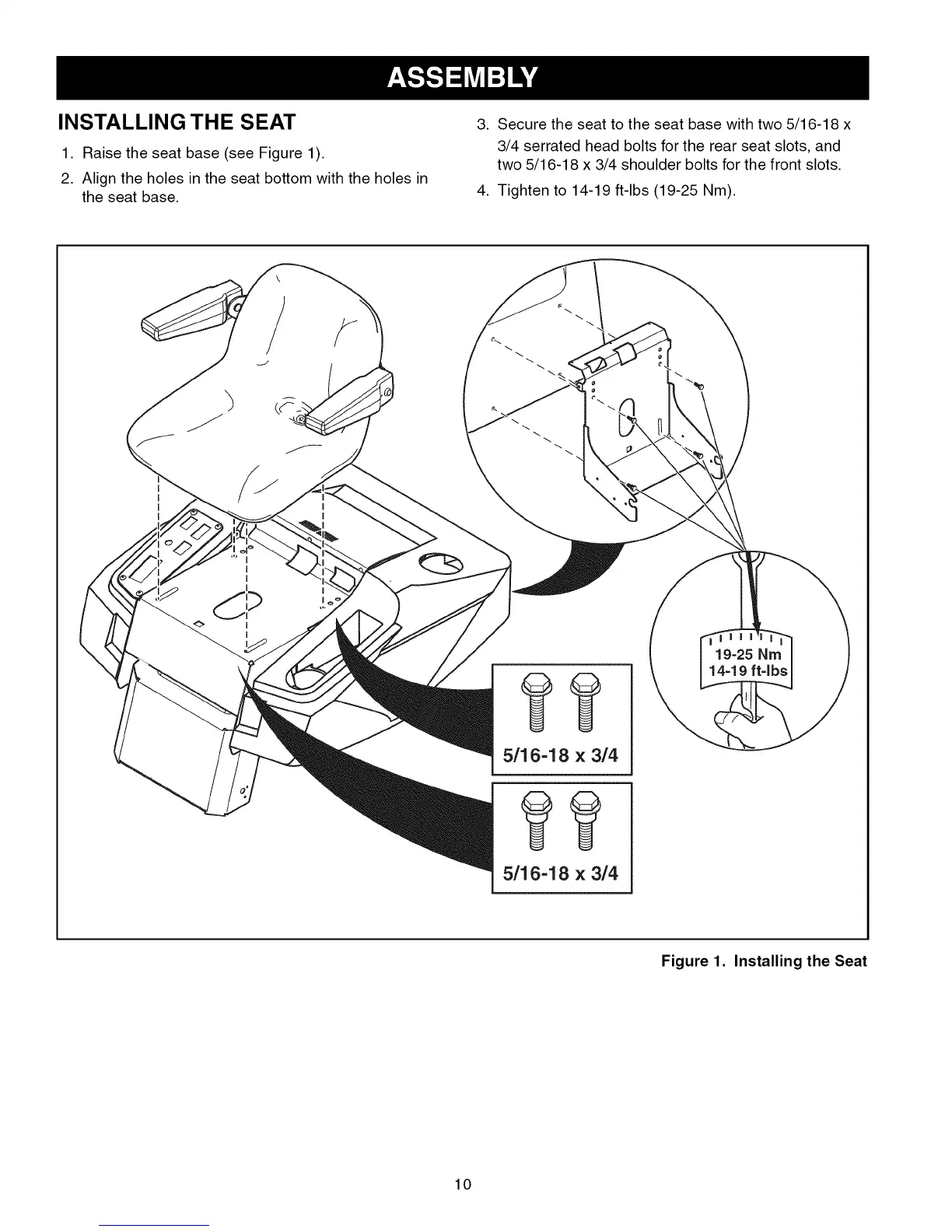

Figure 1. Installing the Seat
10
