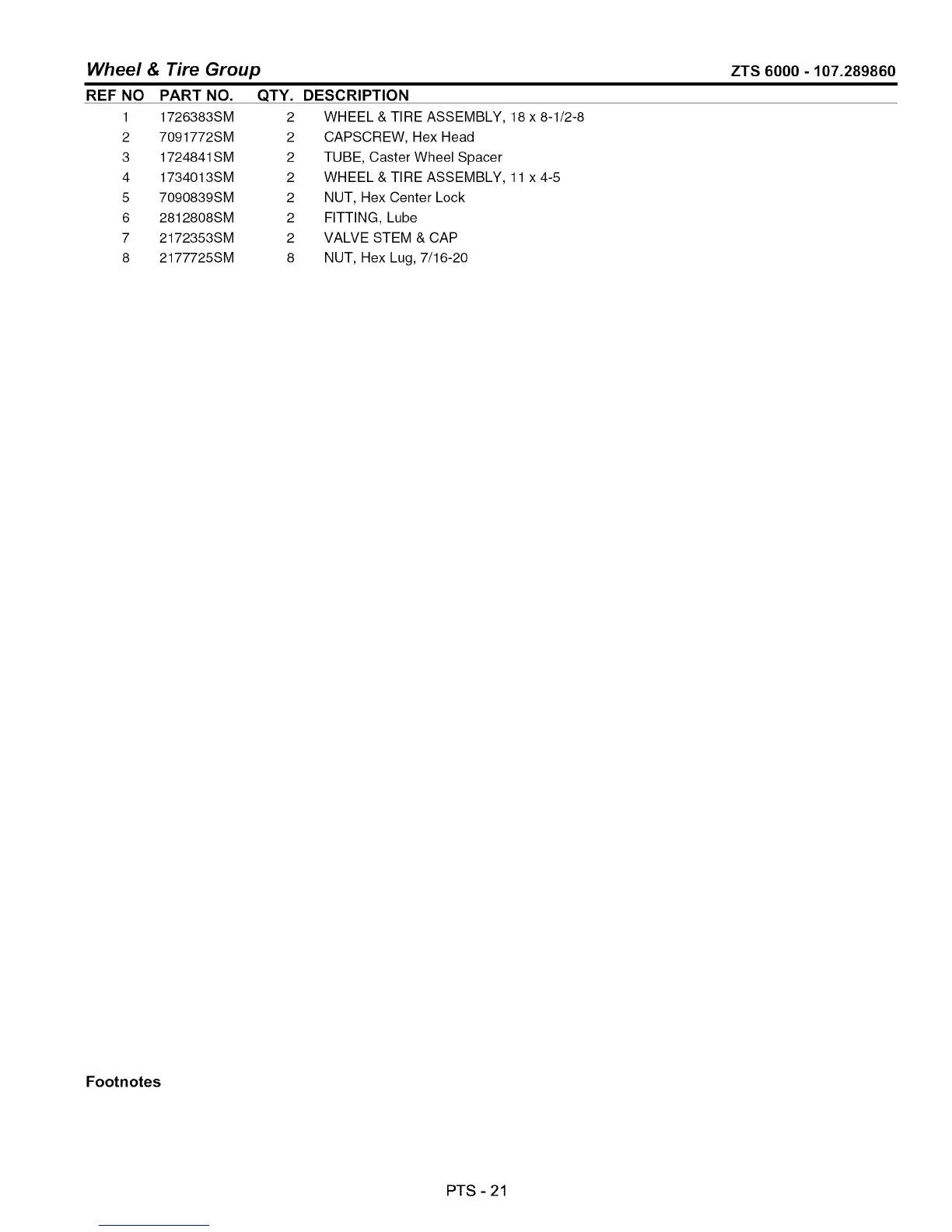

Wheel & Tire Group
REF NO PART NO. QTY.
1 1726383SM 2
2 7091772SM 2
3 1724841SM 2
4 1734013SM 2
5 7090839SM 2
6 2812808SM 2
7 2172353SM 2
8 2177725SM 8
ZTS 6000 - 107.289860
DESCRIPTION
WHEEL & TIRE ASSEMBLY, 18 x 8-1/2-8
CAPSCREW, Hex Head
TUBE, Caster Wheel Spacer
WHEEL & TIRE ASSEMBLY, 11 x 4-5
NUT, Hex Center Lock
FITTING, Lube
VALVE STEM & CAP
NUT, Hex Lug, 7/16-20
