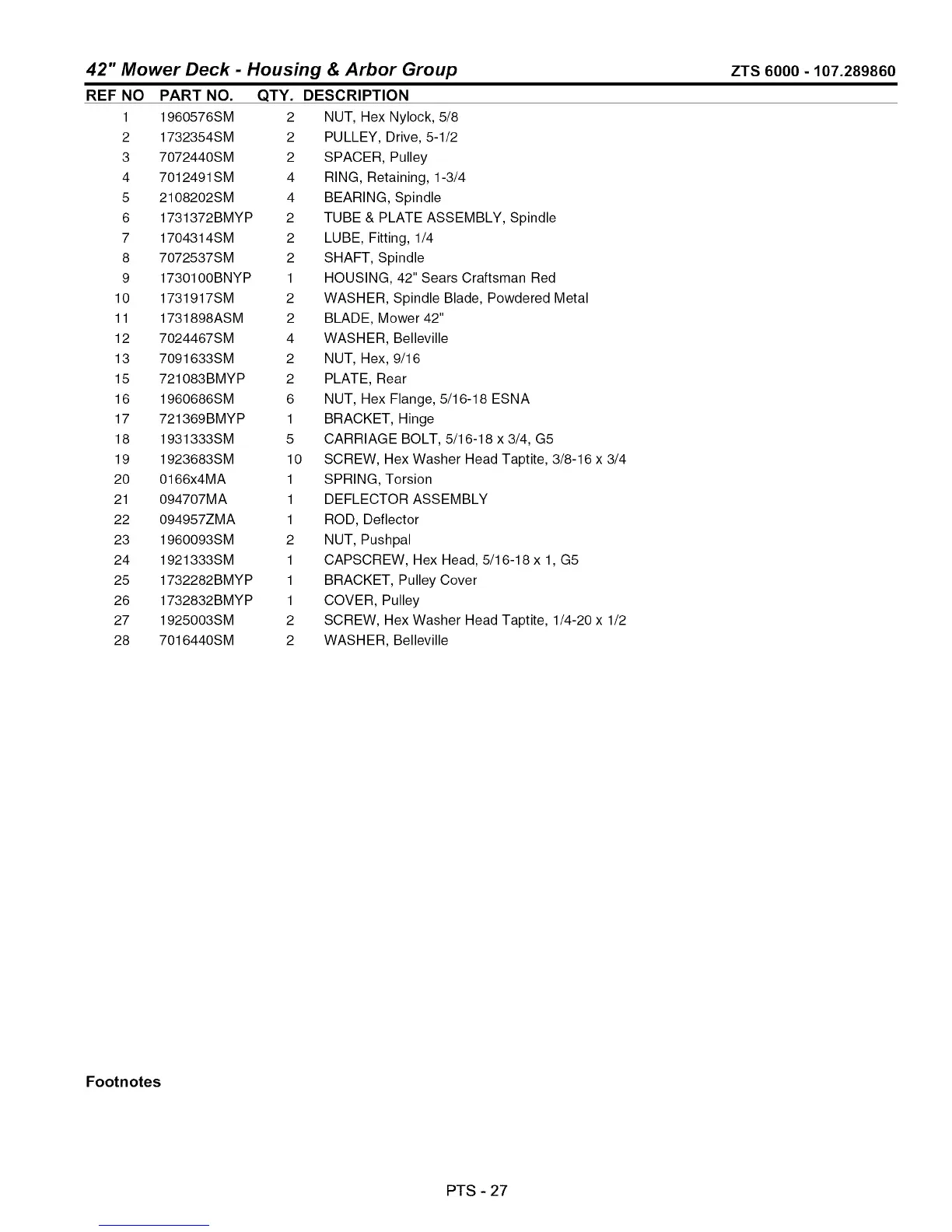

- Housing & Arbor Group ZTS 6000 - 107.289860
42" Mower Deck
REF NO PART NO. QTY.
1 1960576SM 2
2 1732354SM 2
3 7072440SM 2
4 7012491SM 4
5 2108202SM 4
6 1731372BMYP 2
7 1704314SM 2
8 7072537SM 2
9 1730100BNYP 1
10 1731917SM 2
11 1731898ASM 2
12 7024467SM 4
13 7091633SM 2
15 721083BMYP 2
16 1960686SM 6
17 721369BMYP 1
18 1931333SM 5
19 1923683SM 10
20 0166x4MA 1
21 094707MA 1
22 094957ZMA 1
23 1960093SM 2
24 1921333SM 1
25 1732282BMYP 1
26 1732832BMYP 1
27 1925003SM 2
28 7016440SM 2
DESCRIPTION
NUT, Hex Nylock, 5/8
PULLEY, Drive, 5-1/2
SPACER, Pulley
RING, Retaining, 1-3/4
BEARING, Spindle
TUBE & PLATE ASSEMBLY, Spindle
LUBE, Fitting, 1/4
SHAFT, Spindle
HOUSING, 42" Sears Craftsman Red
WASHER, Spindle Blade, Powdered Metal
BLADE, Mower 42"
WASHER, Belleville
NUT, Hex, 9/16
PLATE, Rear
NUT, Hex Flange, 5/16-18 ESNA
BRACKET, Hinge
CARRIAGE BOLT, 5/16-18 x 3/4, G5
SCREW, Hex Washer Head Taptite, 3/8-16 x 3/4
SPRING, Torsion
DEFLECTOR ASSEMBLY
ROD, Deflector
NUT, Pushpal
CAPSCREW, Hex Head, 5/16-18 x 1, G5
BRACKET, Pulley Cover
COVER, Pulley
SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
WASHER, Belleville
Footnotes
PTS - 27
