AIR FILTER & PRE-CLEANER
Service Interval: Pre-Cleaner: Every 25 hours or as
required. Air Filter: Every 50 hours or as required.
Replacement Interval: Pre-Cleaner: As required. Air
Filter: Every 200 hours or once per season.
Air Filter Removal & Installation
1. Lift up on the bottom of the latch (A, Figure 31 or 32)
and flip the latch away from the cover (B).
2. Remove the cover (B). Remove the filter (C, Figure
31) and pre-cleaner (D).
3. Install the pre-cleaner (D) with the mesh side up.
Install the filter (C) as shown.
4. Install the cover (B, Figure 32) making sure the tabs
are inserted into their slots.
5. Secure with the latch (A).
.
.
.

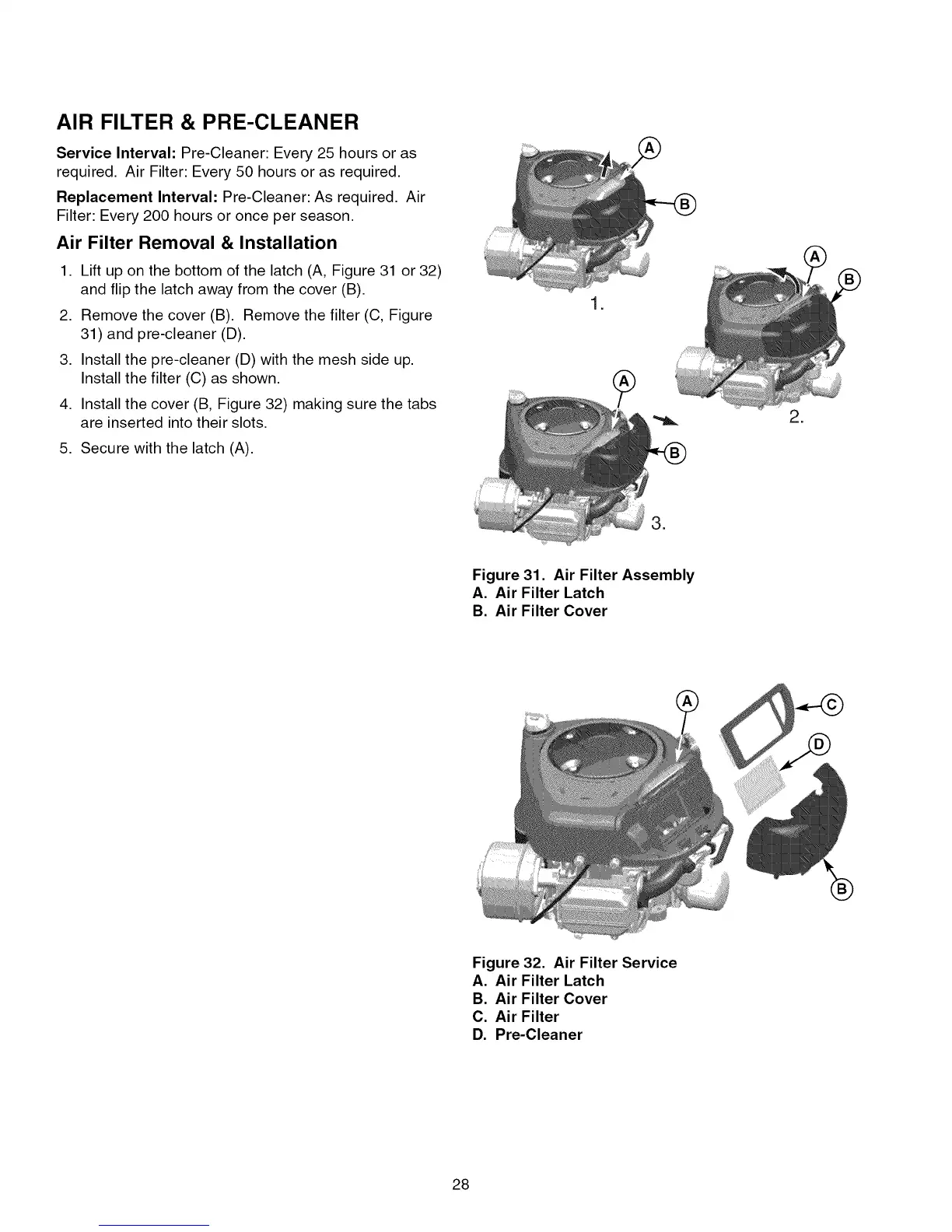

Figure 31. Air Filter Assembly
A. Air Filter Latch
B. Air Filter Cover
®
Figure 32. Air Filter Service
A. Air Filter Latch
B. Air Filter Cover
C. Air Filter
D. Pre-Cleaner
