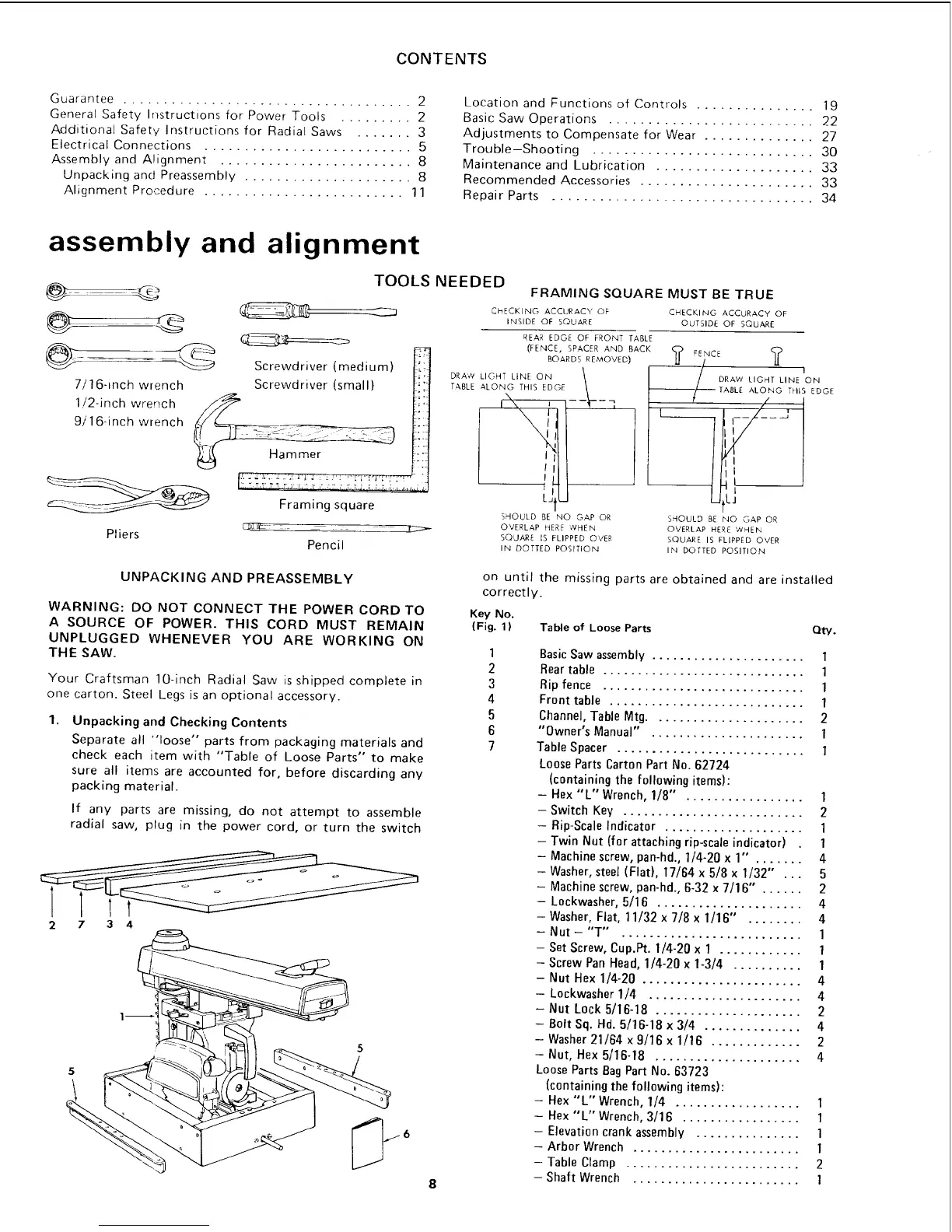

CONTENTS
Guarantee .................................... 2
General Safety Instructions for Power Tools ......... 2
AdditionaJ Safety Instructions for Radial Saws ....... 3
Electrical Connections .......................... 5
Assembly and Alignment ........................ 8
Unpacking and Preassembly ..................... 8
Alignment Procedure ......................... 1 1
Location and Functions of Controls ............... 19
Basic Saw Operations .......................... 22
Adjustments to Compensate for Wear .............. 27
Trouble-Shooting ............................ 30
Maintenance and Lubrication .................... 33
Recommended Accessories ...................... 33
Repair Parts ................................. 34
assembly and alignment
TOOLS NEEDED
Screwdriver (medium)
Screwdriver (small)
FRAMING SQUARE MUST BE TRUE
CHECKING ACCURACY OF
INSIDE OF SQUARE
CHECKING ACCURACY OF
OUTSIDE OF SQUARE
7/16-inch wrench
1!2-inch wrench __
gi 16-inch wrench
!.r: RZ'_'_ .L ,/,_ J'J L : _. _' _'r'l'_'l'_'_
I]: TT,_' T T r,.i' "_'," 't ,t,52, ," ? 7.L _ ;, t h J, hJ
Framing square
Pliers
Pencil
DR A¢,'
TABLE
REAR EDGE OF FRONT TABLE
(FENCE, SPACER AND BACK
BOARDS REMOVED)
oE\
SHOULD BE NO GAP OR
OVERLAP HERE ,VHEN
SQUARE IS FLIPPED OVER
IN DOTTED POSITION
) FENCE (_
I
/ DRAW LIGHT LINE ON
--/_---- TABL_ ALO_° THI? EDGE
,
UttJ
SHOULDBENOGAPOR
OVERLAP HERC WHEN
SQUARE IS FLIPPED OVER
IN DOTTED POSITION
UNPACKING AND PREASSEMBLY
WARNING: DO NOT CONNECT THE POWER CORD TO
A SOURCE OF POWER. THIS CORD MUST REMAIN
UNPLUGGED WHENEVER YOU ARE WORKING ON
THE SAW.
Your Craftsman 10-inch Radial Saw is shipped complete in
one carton. Steel Legs is an optional accessory.
1.
Unpacking and Checking Contents
Separate all "loose" parts from packaging materials and
check each item with "Table of Loose Parts" to make
sure all items are accounted for, before discarding any
packing material.
If any parts are missing, do not attempt to assemble
radial saw, plug in the power cord, or turn the switch
2 7 3 4
on until the missing parts are obtained and are installed
correctly.
Key No.
(Fig. 1) Table of Loose Parts Qty.
1
2
3
4
5
6
7
Basic Saw assembly ...................... 1
Rear table ............................. 1
Rip fence ............................. 1
Front table ............................ 1
Channel, Table Mtg ...................... 2
"Owner's Manual" . ..................... 1
Table Spacer ........................... 1
Loose Parts Carton Part No. 62724
(containing the following items):
- Hex "L" Wrench, 1/8" . ................ 1
- Switch Key .......................... 2
- Rip-Scale Indicator .................... 1
- Twin Nut (for attaching rip-scale indicator) 1
- Machine screw, pan-hd., 1/4-20 x 1" . ...... 4
- Washer, steel (Flat), 17/64 x 5/8 x 1/32" ... 5
- Machine screw, pan-hd., 6-32 x 7/16" . ..... 2
- Lockwasher, 5/16 ..................... 4
- Washer, Flat, 11/32 x 7/8 x 1/16" . ....... 4
-Nut-'T" . ......................... 1
- Set Screw, Cup.Pt. 1/4-20 x 1 ............ 1
- Screw Pan Head, 1/4-20 x 1-3/4 .......... 1
- Nut Hex 1/4-20 ....................... 4
- Lockwasher 1/4 ...................... 4
- Nut Lock 5/16-18 ..................... 2
- Bolt Sq. Hd. 5/16-18 x 3/4 .............. 4
- Washer 21/64 x 9/16 x 1/16 ............. 2
- Nut, Hex 5116-18 ..................... 4
Loose Parts Bag Part No. 63723
(containing the following items):
- Hex "L" Wrench, 1/4 .................. 1
- Hex "L" Wrench, 3/16 ................. 1
- Elevation crank assembly ............... 1
- Arbor Wrench ........................ 1
- Table Clamp ......................... 2
- Shaft Wrench ........................ 1
