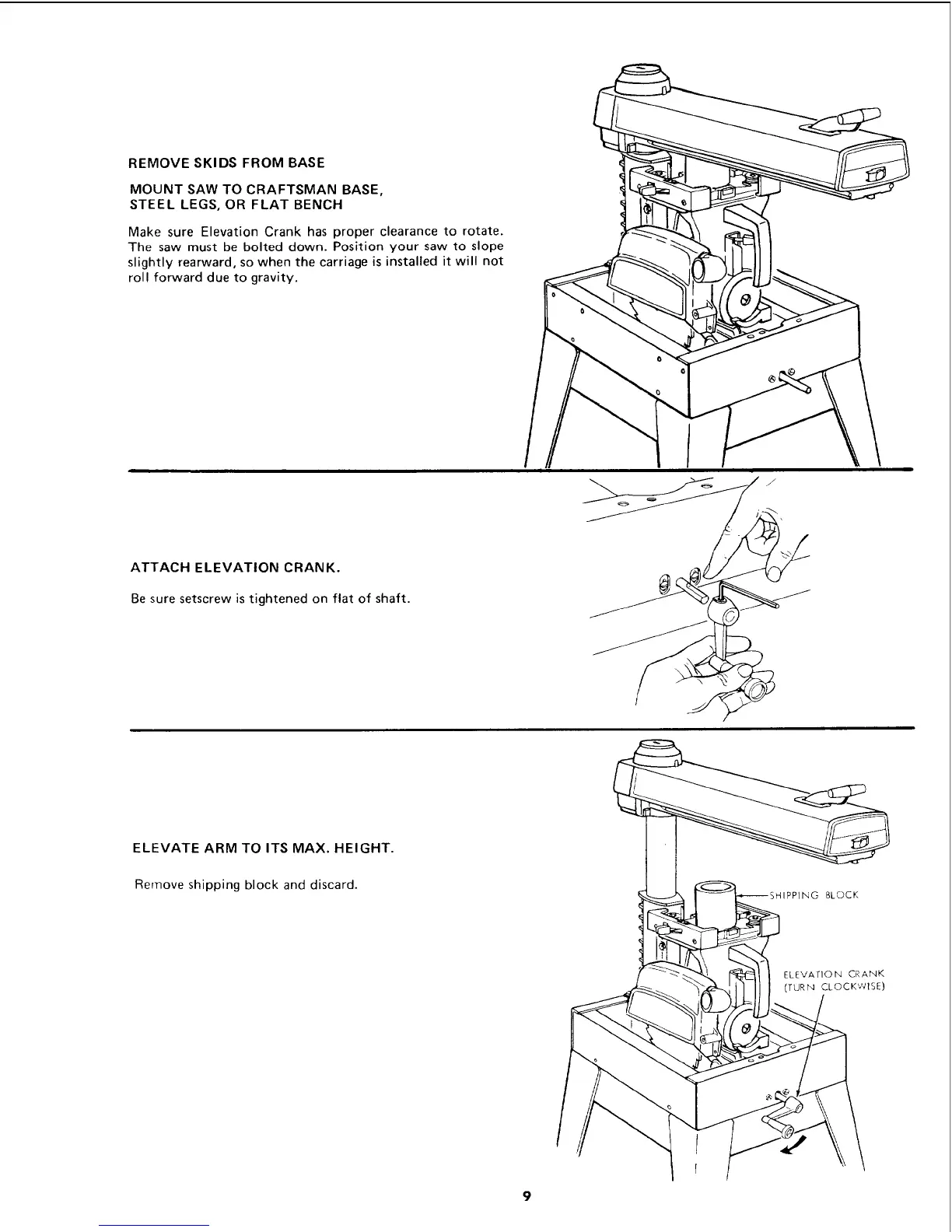

REMOVE SKIDS FROM BASE
MOUNT SAW TO CRAFTSMAN BASE,
STEEL LEGS, OR FLAT BENCH
Make sure Elevation Crank has proper clearance to rotate.
The saw must be bolted down. Position your saw to slope
slightly rearward, so when the carriage is installed it will not
rol! forward due to gravity.
ATTACH ELEVATION CRANK.
Be sure setscrew is tightened on flat of shaft.
/
ELEVATE ARM TO ITS MAX. HEIGHT.
Remove shipping block and discard.
NG BLOCK
EL[VATION CRANK
(TURN CLOCKWISE)
9
