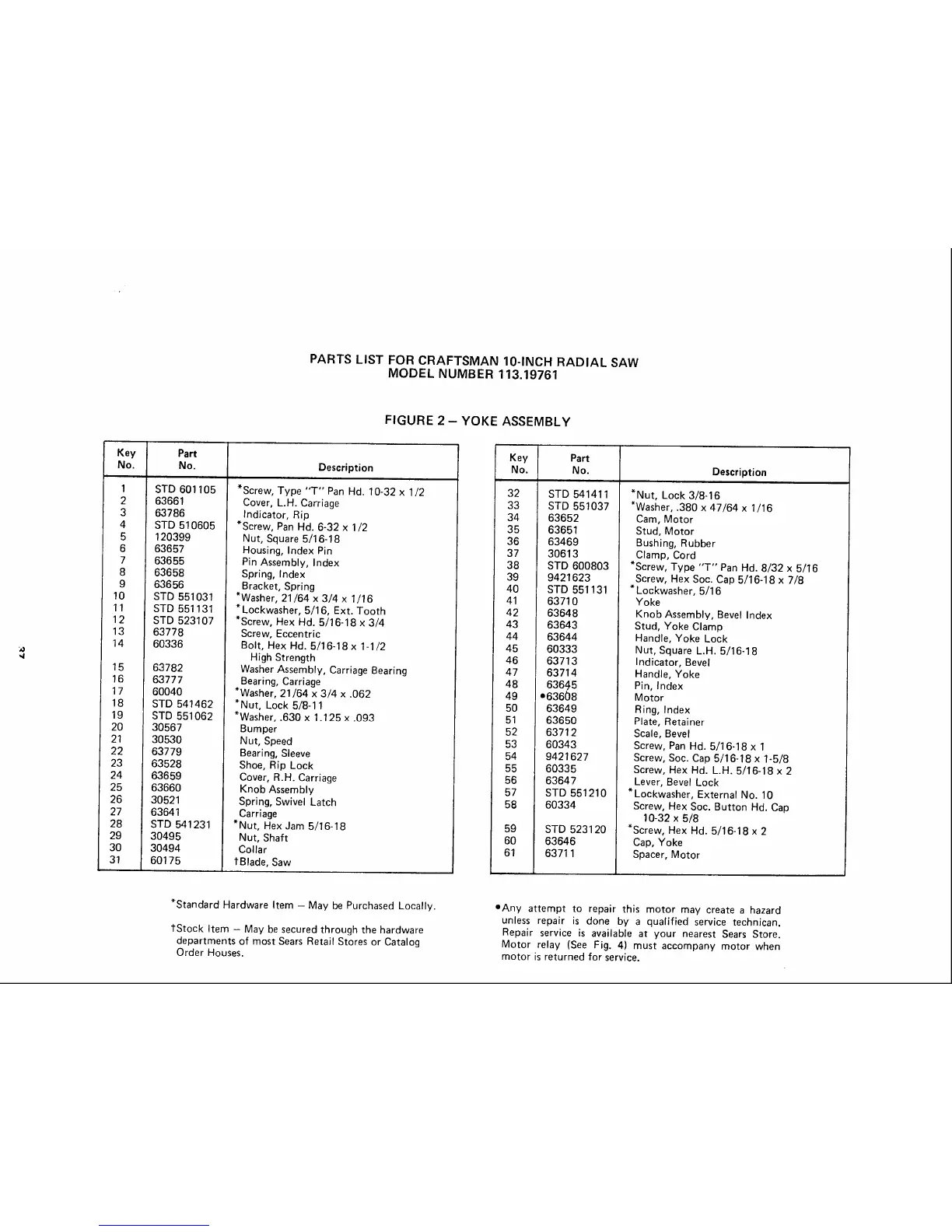

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW
MODEL NUMBER 113.19761
FIGURE 2- YOKE ASSEMBLY
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Part
No.
STD 601105
63661
63786
STD 510605
120399
63657
63655
63658
63656
STD 551031
STD 551131
STD 523107
63778
60336
63782
63777
60040
STD 541462
STD 551062
30567
30530
63779
63528
63659
63660
30521
63641
STD 541231
30495
30494
60175
Description
*Screw, Type "T" Pan Hd. 10-32 x 1/2
Cover, L.H. Carriage
Indicator, Rip
*Screw, Pan Hd. 6-32 x 1/2
Nut, Square 5/16-18
Housing, Index Pin
Pin Assembly, Index
Spring, Index
Bracket, Spring
*Washer, 21/64 x 3/4 x 1/16
* Lockwasher, 5/16, Ext. Tooth
*Screw, Hex Hd. 5/16-18 x 3/4
Screw, Eccentric
Bolt, Hex Hd. 5/16-18 x 1-1/2
High Strength
Washer Assembly, Carriage Bearing
Bearing, Carriage
*Washer, 21/64 x 3/4 x .062
*Nut, Lock 5/8-11
*Washer, .630 x 1.125 x .093
Bumper
Nut, Speed
Bearing, Sleeve
Shoe, Rip Lock
Cover, R.H. Carriage
Knob Assembly
Spring, Swivel Latch
Carriage
*Nut, Hex Jam 5/16-18
Nut, Shaft
Collar
tBlade, Saw
Key Part
No. No. Description
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
5O
51
52
53
54
55
56
57
58
59
60
61
STD 541411
STD 551037
63652
63651
63469
30613
STD 600803
9421623
STD 551131
*Nut, Lock 3/8-16
*Washer, .380 x 47/64 x 1/16
Cam, Motor
Stud, Motor
Bushing, Rubber
Clamp, Cord
*Screw, Type "T" Pan Hd. 8/32 x 5/16
Screw, Hex Soc. Cap 5/16-18 x 7/8
* Lockwasher, 5/16
63710
63648
63643
63644
60333
63713
63714
63645
163608
63649
63650
63712
60343
9421627
60335
63647
STD 551210
60334
STD 523120
63646
63711
Yoke
Knob Assembly, Bevel Index
Stud, Yoke Clamp
Handle, Yoke Lock
Nut, Square L.H. 5/16-18
Indicator, Bevel
Handle, Yoke
Pin, Index
Motor
Ring, Index
Plate, Retainer
Scale, Bevel
Screw, Pan Hd. 5/16-18 x 1
Screw, Soc. Cap 5/16-18 x 1-5/8
Screw, Hex Hd. L.H. 5/16-18 x 2
Lever, Bevel Lock
*Lockwasher, External No. 10
Screw, Hex Soc. Button Hd. Cap
10-32 x 5/8
*Screw, Hex Hd. 5/16-18 x 2
Cap, Yoke
Spacer, Motor
*Standard Hardware Item - May be Purchased Locally.
tStock Item - May be secured through the hardware
departments of most Sears Retail Stores or Catalog
Order Houses.
°Any attempt to repair this motor may create a hazard
unless repair is done by a qualified service technican.
Repair service is available at your nearest Sears Store.
Motor relay (See Fig. 4) must accompany motor when
motor is returned for service.
