repair parts

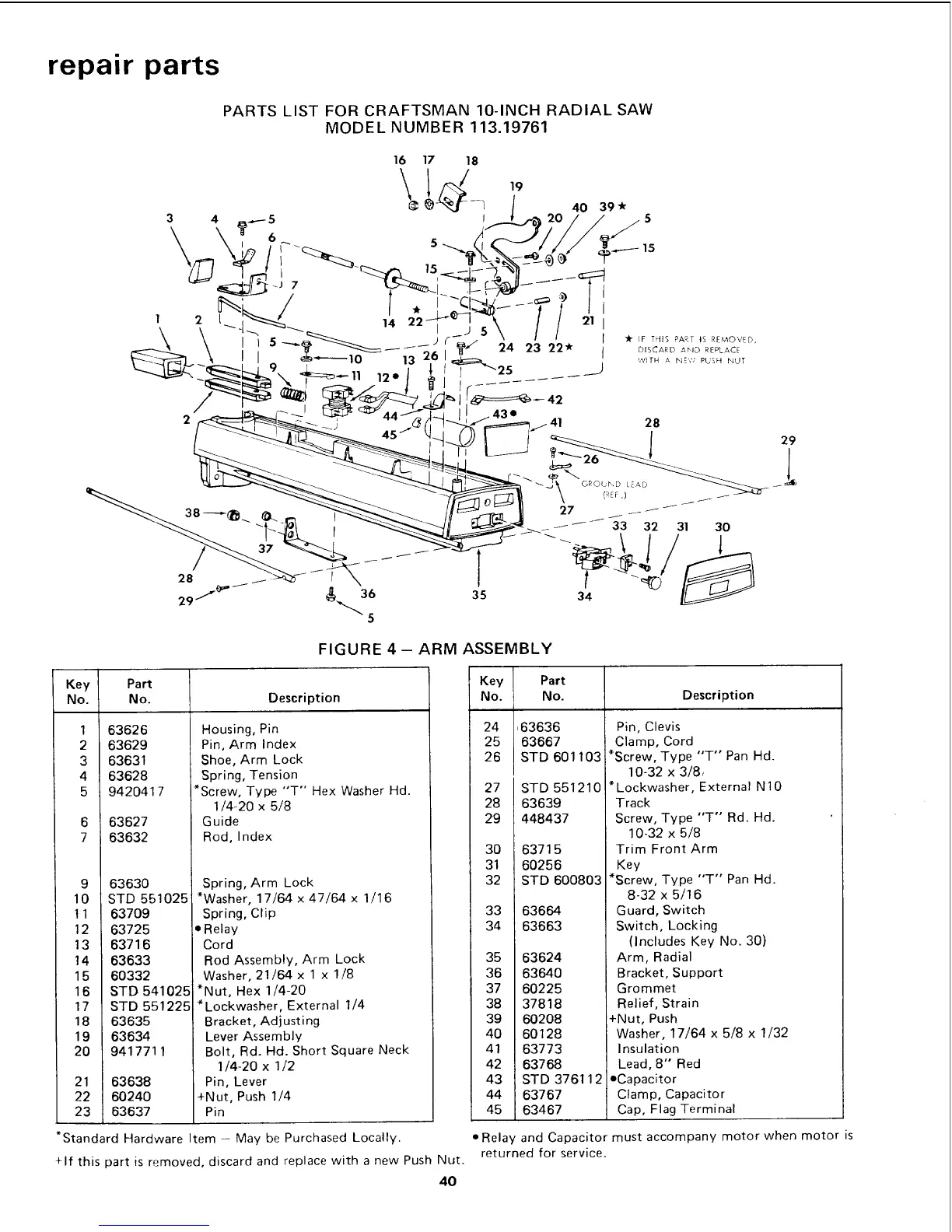

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW
MODEL NUMBER 113.19761
FIGURE 4- ARM ASSEMBLY
Key
No.
Part
No.
1 63626
2 63629
3 63631
4 63628
5 9420417
6
7
63627
63632
9 63630
10 STD 551025'
11 637O9
12 63725
13 63716
14 63633
15 60332
16 STD 541025
17 STD 551225
18 63635
19 63634
20 9417711
21
22
23
63638
60240
63637
Description
Housing, Pin
Pin, Arm Index
Shoe, Arm Lock
Spring, Tension
*Screw, Type "T" Hex Washer Hd.
1/4-20 x 5/8
Guide
Rod, Index
Spring, Arm Lock
*Washer, 17/64 x 47/64 x 1/16
Spring, Clip
.Relay
Cord
Rod Assembly, Arm Lock
Washer, 21/64 x 1 x 1/8
*Nut, Hex 1/4-20
*Lockwasher, External 1/4
Bracket, Adjusting
Lever Assembly
Bolt, Rd. Hd. Short Square Neck
1/4-20 x 1/2
Pin, Lever
+Nut, Push 1/4
Pin
*Standard Hardware Item - May be Purchased Locally.
+If this part is removed, discard and replace with a new Push Nut.
40
Key Part
No. No.
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
,63636
63667
STD 601103
STD 551210
63639
448437
63715
60256
STD 600803
63664
63663
63624
63640
60225
37818
60208
60128
63773
63768
STD 376112
63767
63467
Description
Pin, Clevis
Clamp, Cord
*Screw, Type "T" Pan Hd.
10-32 x 3/8,
*Lockwasher, External N10
Track
Screw, Type "T" Rd. Hd.
10-32 x 5/8
Trim Front Arm
Key
*Screw, Type "T" Pan Hd.
8-32 x 5/16
Guard, Switch
Switch, Locking
(Includes Key No. 30)
Arm, Radial
Bracket, Support
Grommet
Relief, Strain
+Nut, Push
Washer, 17/64 x 5/8 x 1/32
Insulation
Lead, 8" Red
eCapacitor
Clamp, Capacitor
Cap, Flag Terminal
Relay and Capacitor must accompany motor when motor is
returned for service.
