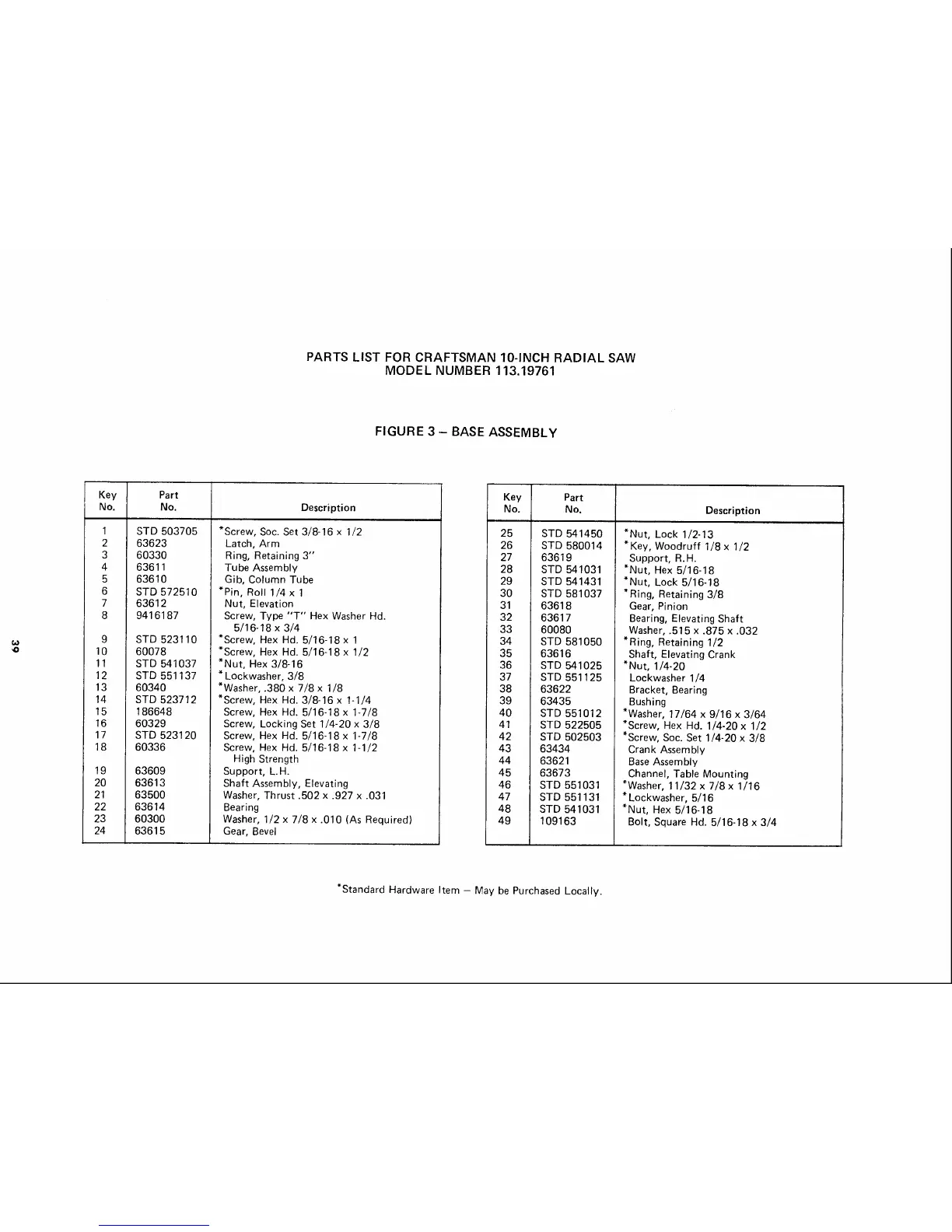

PARTS LIST FOR CRAFTSMAN IO-INCH RADIAL SAW
MODEL NUMBER 113.19761
FIGURE 3- BASE ASSEMBLY
Key Part
No. No. Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
STD 503705
63623
60330
63611
63610
STD 572510
63612
9416187
STD 523110
60078
STD 541037
STD 551137
60340
STD 523712
186648
60329
STD 523120
60336
63609
63613
63500
63614
60300
63615
*Screw, Soc. Set 3/8-16 x 1/2
Latch, Arm
Ring, Retaining 3"
Tube Assembly
Gib, Column Tube
*Pin, Roll 1/4 x 1
Nut, Elevation
Screw, Type "T" Hex Washer Hd.
5/16-18 x 3/4
*Screw, Hex Hd. 5/16-18 x 1
*Screw, Hex Hd. 5/16-18 x 1/2
*Nut, Hex 3/8-16
* Lockwasher, 3/8
*Washer, .380 x 7/8 x 1/8
*Screw, Hex Hd. 3/8-16 x 1-1/4
Screw, Hex Hd. 5/16-18 x 1-7/8
Screw, Locking Set 1/4-20 x 3/8
Screw, Hex Hd. 5/16-18 x 1-7/8
Screw, Hex Hd. 5/16-18 x 1-1/2
High Strength
Support, L.H.
Shaft Assembly, Elevating
Washer, Thrust .502 x .927 x .031
Bearing
Washer, 1/2 x 7/8 x .010 (As Required)
Gear, Bevel
Key Part
No. No. Description
25 STD541450
26 STD 580014
27 63619
28 STD 541031
29 STD 541431
30 STD 581037
31 63618
32 63617
33 60080
34 STD 581050
35 63616
36 STD541025
37 STD 551125
38 63622
39 63435
40 STD 551012
41 STD 522505
42 STD 502503
43 63434
44 63621
45 63673
46 STD 551031
47 STD 551131
48 STD 541031
49 109163
*Nut, Lock 1/2-13
*Key, Woodruff 1/8 x 1/2
Support, R.H.
*Nut, Hex 5/16-18
*Nut, Lock 5/16-18
*Ring, Retaining 3/8
Gear, Pinion
Bearing, Elevating Shaft
Washer, .515 x .875 x .032
*Ring, Retaining 1/2
Shaft, Elevating Crank
*Nut, 1/4-20
Lockwasher 1/4
Bracket, Bearing
Bushing
*Washer, 17/64 x 9/16 x 3/64
*Screw, Hex Hd. 1/4-20 x 1/2
*Screw, Soc. Set 1/4-20 x 3/8
Crank Assembly
Base Assembly
Channel, Table Mounting
*Washer, 11/32 x 7/8 x 1/16
* Lockwasher, 5/16
*Nut, Hex 5/16-18
Bolt, Square Hd. 5/16-18 x 3/4
*Standard Hardware Item - May be Purchased Locally.
