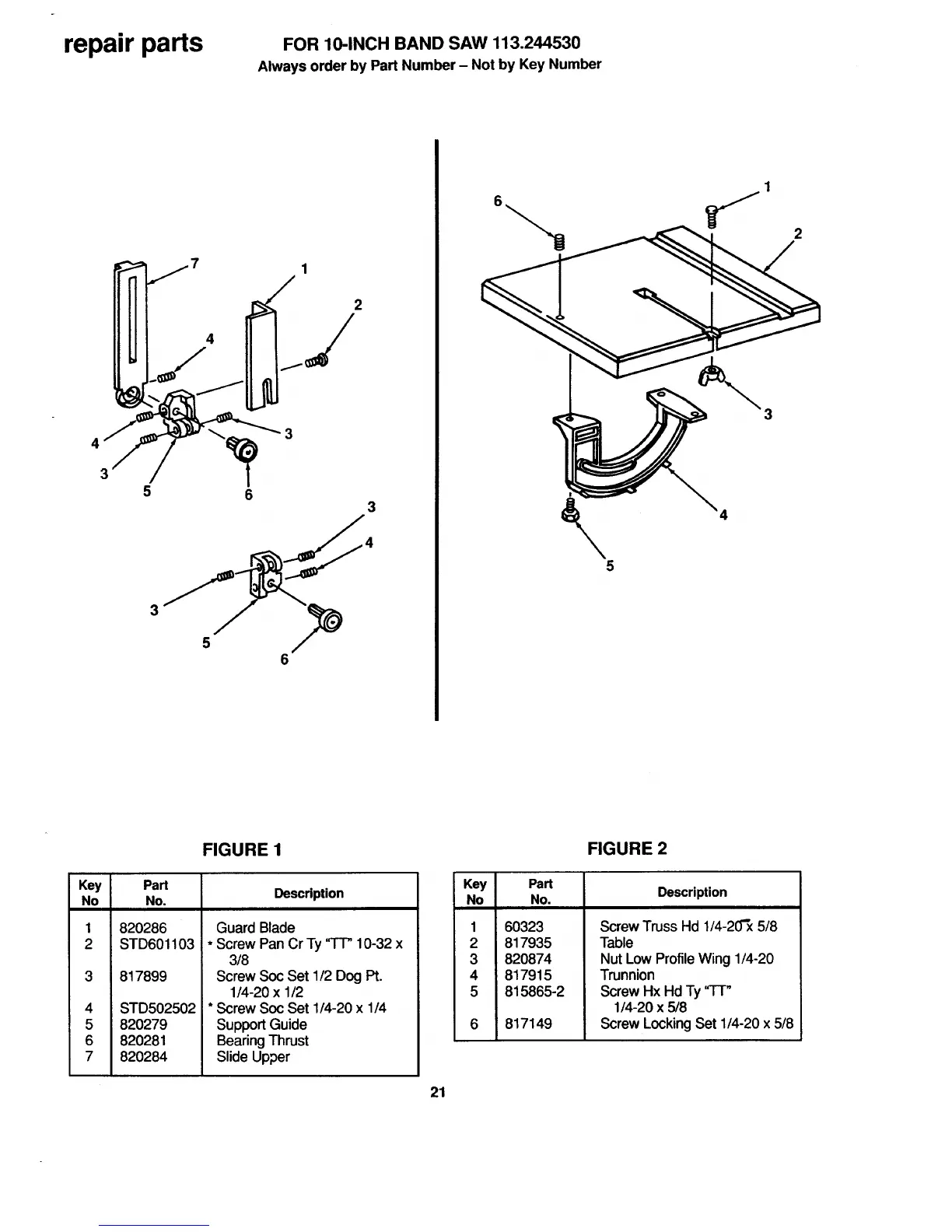

repair parts
FOR 10-INCH BAND SAW 113.244530
Always order by Part Number- Not by Key Number
5
2
6
3
6
4
3
FIGURE 1
Key Part
No No. Description
1
2
4
5
6
7
820286
STD601103
817899
STD502502
820279
820281
820284
Guard Blade
* Screw Pan Cr Ty 'q'T" 10-32 x
3/8
Screw Soc Set 1/2 Dog Pt.
1/4-20 x 1/2
* Screw Soc Set 1/4-20 x 1/4
Support Guide
Bearing Thrust
Slide Upper
FIGURE 2
Key Part Description
No No.
1 60323
2 817935
3 820874
4 817915
5 815865-2
817149
Screw Truss Hd 1/4-20-_ 5/8
Table
Nut Low Profile Wing 1/4-20
Trunnion
Screw Hx Hd Ty 'q"l"
1/4-20 x 5/8
Screw Locking Set 1/4-20 x 5/8
