A
c
D

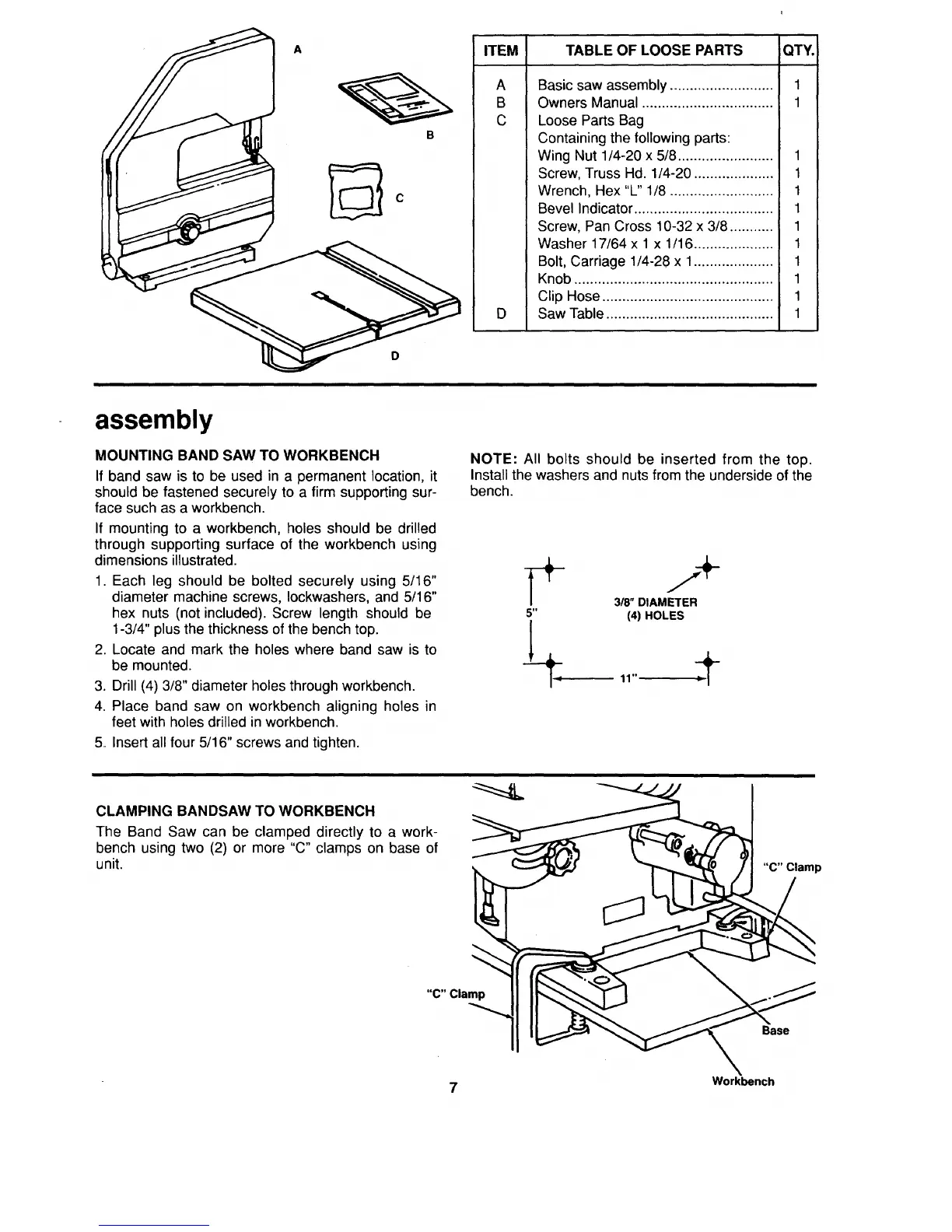

ITEM TABLE OF LOOSE PARTS
A
B
C
D
Basic saw assembly ..........................
Owners Manual .................................
Loose Parts Bag
Containing the following parts:
Wing Nut 1/4-20 x 5/8 ........................ 1
Screw, Truss Hd. 1/4-20 .................... 1
Wrench, Hex "L" 1/8 .......................... 1
Bevel Indicator ................................... 1
Screw, Pan Cross 10-32 x 3/8 ........... 1
Washer 17/64 x 1 x 1/16 .................... 1
Bolt, Carriage 1/4-28 x 1.................... 1
Knob .................................................. 1
Clip Hose ........................................... 1
Saw Table .......................................... 1
QTY.
1
1
assembly
MOUNTING BAND SAW TO WORKBENCH
If band saw is to be used in a permanent location, it
should be fastened securely to a firm supporting sur-
face such as a workbench.
NOTE: All bolts should be inserted from the top.
Install the washers and nuts from the underside of the
-_ 318"DIAMETE'_R+
(4) HOLES
bench.
11" =--41IF-
If mounting to a workbench, holes should be drilled
through supporting surface of the workbench using
dimensions illustrated.
1. Each leg should be bolted securely using 5/16"
diameter machine screws, Iockwashers, and 5/16"
hex nuts (not included). Screw length should be
1-3/4" plus the thickness of the bench top.
2. Locate and mark the holes where band saw is to
be mounted.
3. Drill (4) 3/8" diameter holes through workbench.
4. Place band saw on workbench aligning holes in
feet with holes drilled in workbench.
5. Insert all four 5/16" screws and tighten.
CLAMPING BANDSAW TO WORKBENCH
The Band Saw can be clamped directly to a work-
bench using two (2) or more "C" clamps on base of
unit.
5"
1
"C" Clamp
"C" Clamp
Base
7 Workbench
