Straight Door
Arm Section
Curved Door
Arm Section
Safety Labels
and
Literature
2-Conductor Bell Wire
White & White/Red
TO GARAGE DOOR
T-Rail
Center Section
T-Rail
End Sections
Hanging Brackets
Header Bracket
UP
CEILING MOUNT ONLY
Safety Reversing Sensor
Mounting Bracket
With Square Holes (2)
"C" Wrap (2)
Safety Reversing Sensor
Mounting Bracket
With Slot (2)
Light Lens (2)
Trolley
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with
2-Conductor White & White/Black Bell Wire
attached
SECURITY✚
Three-Function Remote Control
with Visor Clip (2)
Premium Control Console
LOCK
LIGHT
Belt
Belt Cap Retainer
Door Bracket
Belt Pulley
Bracket
SECURITY✚
Multi-Function
Keyless Entry

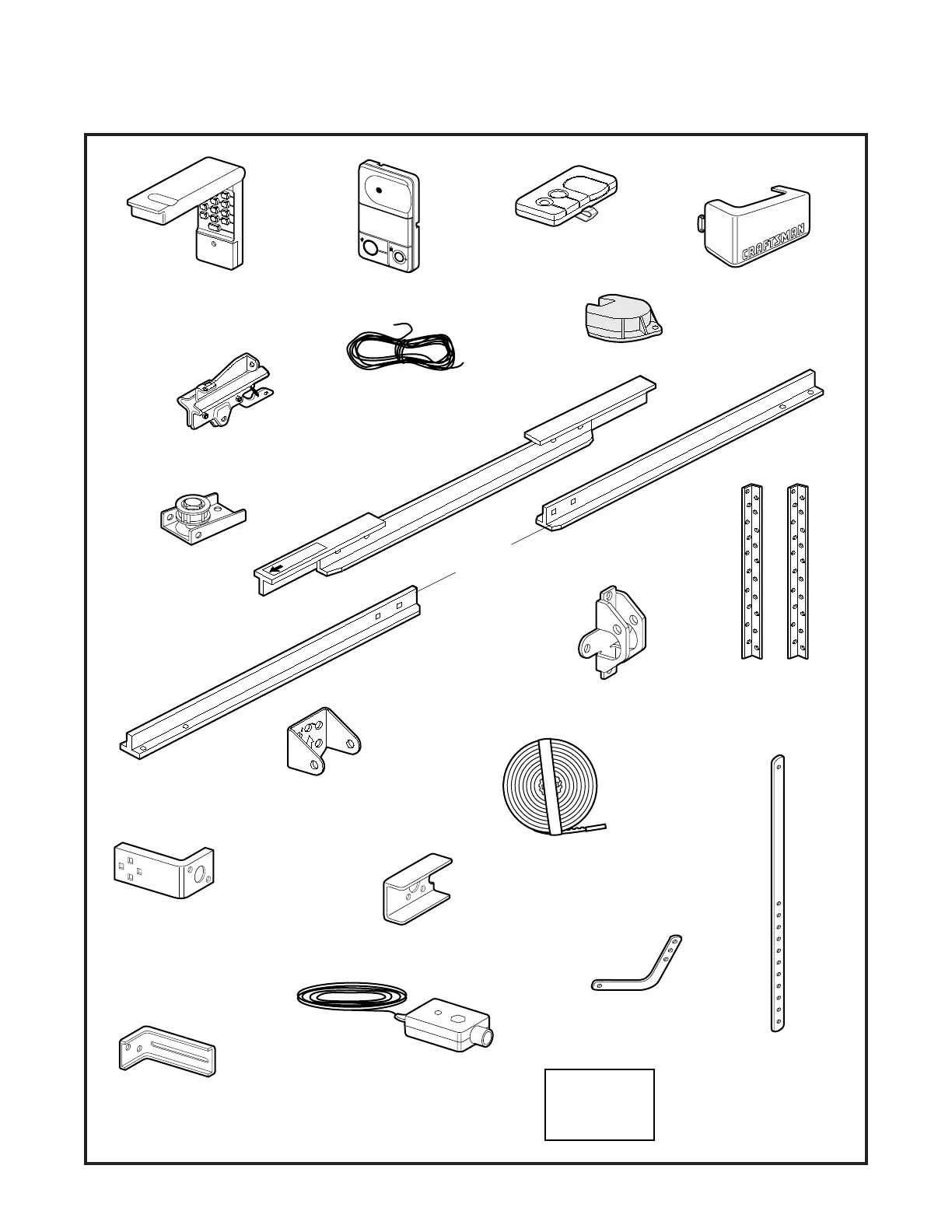

Carton Inventory
Your garage door opener is packaged in two cartons which contain all parts illustrated below. If anything is
missing, carefully check the packing material. Parts may be "stuck" in the foam. Hardware for assembly and
installation is shown on page 7.
