8

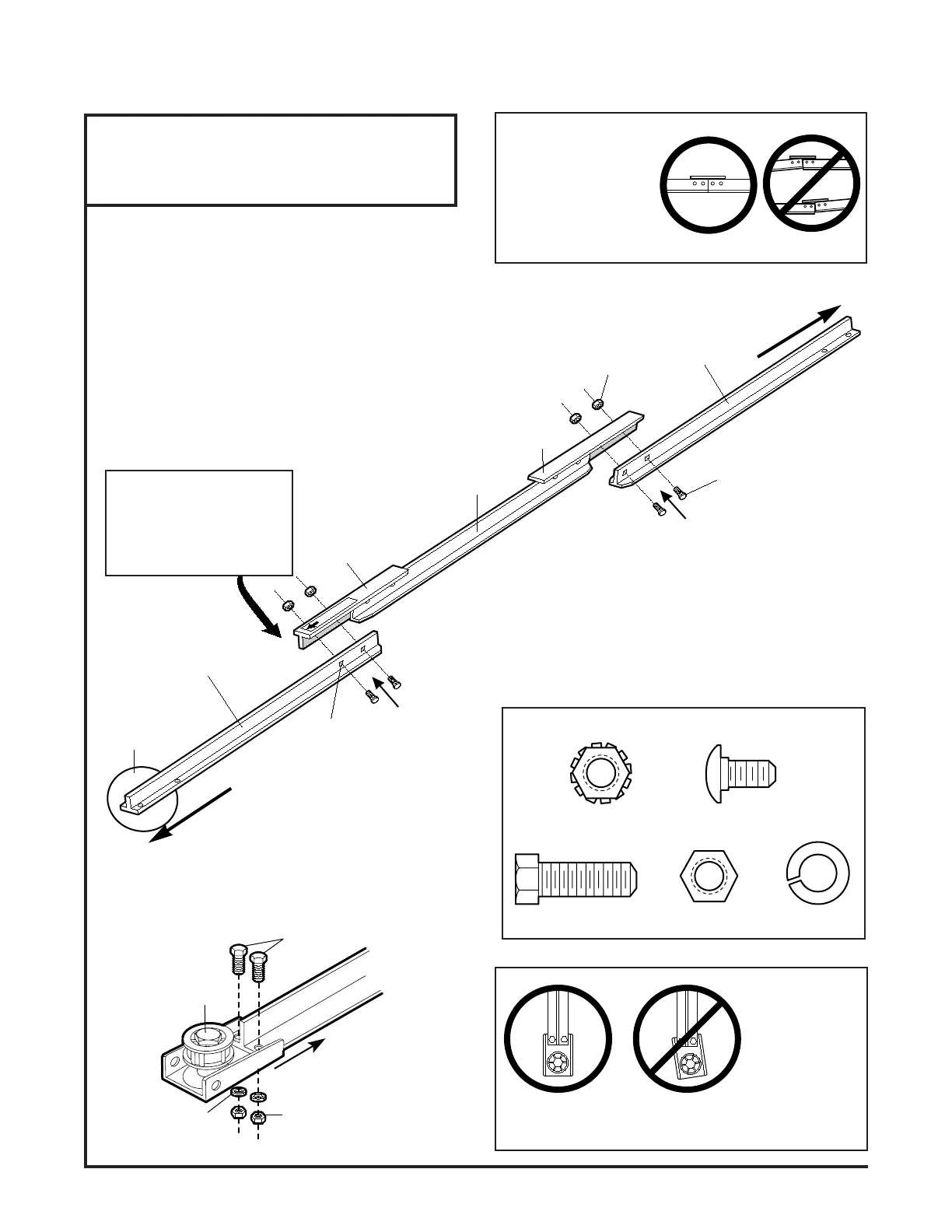

Assembly Step 1
Assemble the T-rail &
Attach the Belt Pulley Bracket
• Place the 3 T-rail sections on a flat surface for
assembly. The end sections are identical. Make
sure the "arrow label" on the center section is
pointing toward the door.
• Insert the carriage bolts so the square bolt necks
seat in the square holes in the T-rail end sections
and pass through the round holes in T-rail center
section. Assemble lock nuts, ensure alignment and
tighten.
T-rail
(Center Section)
1/4'' Lock Nut
T-RAIL FRONT
(TO DOOR)
Belt pulley bracket
attaches to FRONT
END of T-rail
T-rail
(End Section)
T-RAIL BACK
(TO OPENER)
T-rail
(End Section)
Carriage Bolt
1/4"-20x1/2"
Brace
Brace
Square Carriage
Bolt Holes
TO GARAGE DOOR
Hex Screws
5/16"-18x7/8"
Belt Pulley
Bracket
Bracket & Rail Must Be Aligned
Lock Washer
5/16"
Nut
5/16"-18
If T-rail is not assembled
EXACTLY as shown,
trolley will not travel
smoothly along length of
rail or it will hit against
the nuts.
To avoid installation difficulties, do not run the garage door opener until instructed to do so.
Assembly Section: Pages 8 – 11
Right Wrong
When
tightening the
screws, be
sure to keep
bracket parallel
to the rail.
Otherwise, the
rail may bow
when opener is
operated.
Lock Nut
1/4"-20x7/16"
Carriage Bolts
1/4"-20x1/2"
Hex Screw
5/16"-18x7/8"
Nut
5/16"-18
Lock Washer
5/16"
Hardware Shown Actual Size
• Position the belt pulley bracket on the front end of the
T-rail as shown. Fasten securely with the hardware
shown.
Make sure bolt necks are seated in the square holes
and rails are aligned before
you tighten lock nuts.
(See right and wrong
views). Improper
assembly can cause
jerky trolley operation,
noise and/or nuisance
door reversals.
Right Wrong
To Next Page
