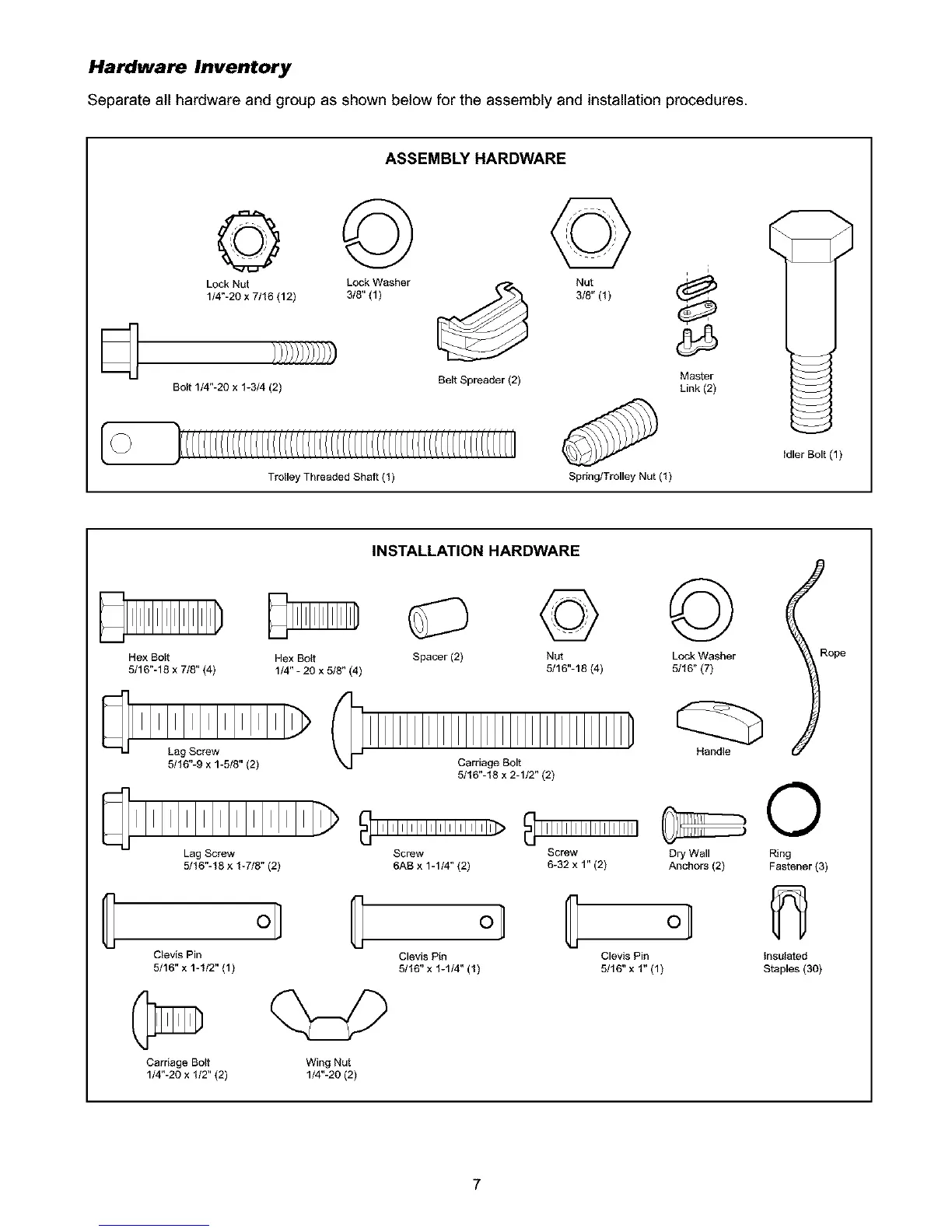

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMBLY HARDWARE
© ©
Lock Nut Lock Washer t"_A
1/4"-20 x 7/16 (12) 3/8" (1)
_] Belt Spreader (2)
Bolt 1/4"-20 x 1-3/4 (2)
©
Nut
3/8" (1)
i
Master
Link (2)
Trolley Threaded Shaft (1) Spring/Trolley Nut (1)
Idler Bolt (1)
Hex Bolt Hex Bo_t
5/16"-18 x 7/8" (4) 1/4" - 20 x 5/8" (4)
INSTALLATION HARDWARE
© ©
Spacer (2) Nut Lock Washer
5/16"-18 (4) 5/16" (7)
Rope
@
5/16"-9 x 1-5/8" (2)
Lag Screw Screw
5/16"-18 x 1-7/8" (2) 6AB x 1-1/4" (2)
o] _ oJ
Clevis Pin Clevis Pin
5/16" x 1-1/2" (1) 5/16" x 1-1/4" (1)
Carriage Bolt Wing Nut
1/4"-20 x 1/2" (2) 1/4"-20 (2)
Carriage Bolt
5/16"-18 x 2-1/2" (2)
Handle
©
Screw Dry Wall Ring
6-32 x 1" (2) Anchors (2) Fastener (3)
Clevis Pin Insulated
5/16" x 1" (1) Staples (30)
7
