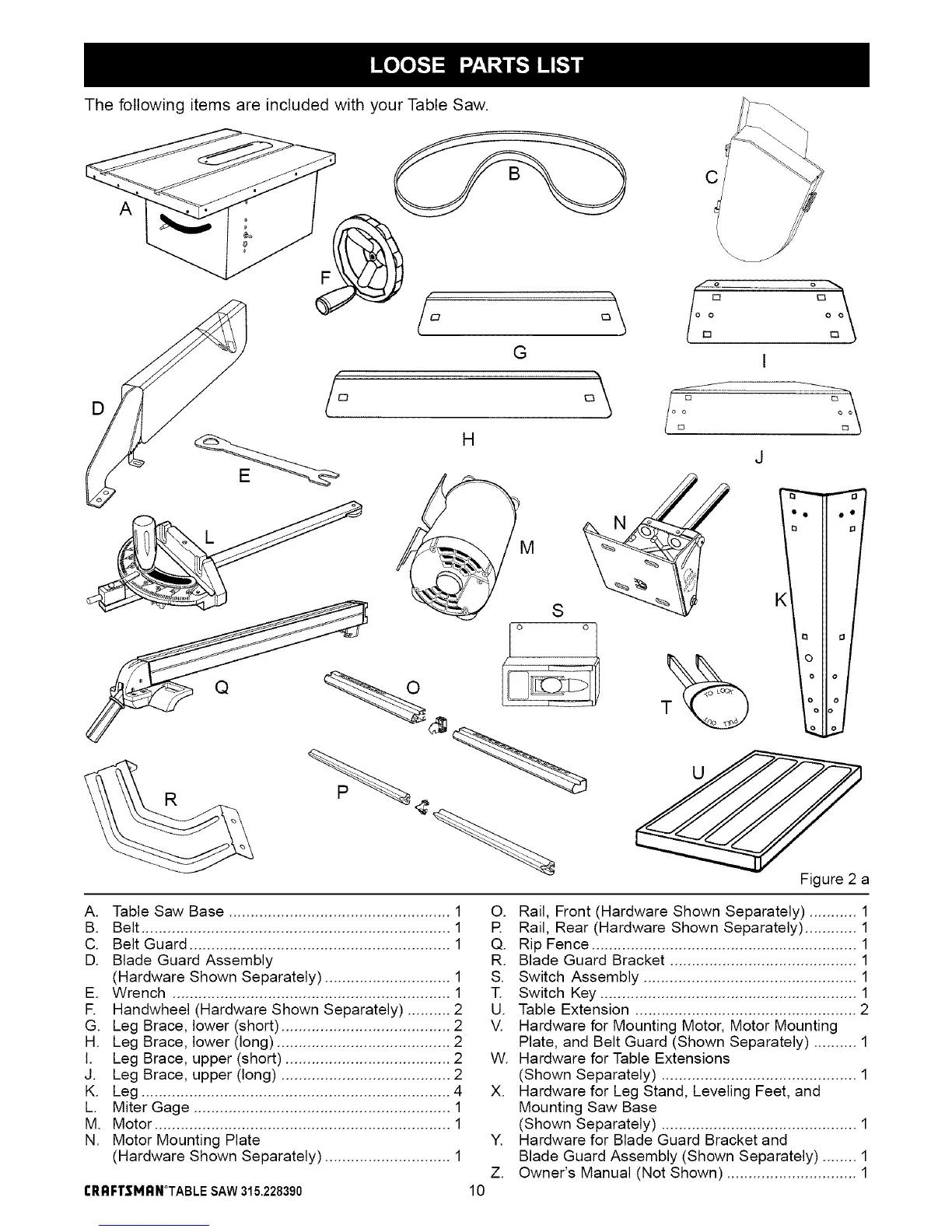

The following items are included with your Table Saw.
D
A
G
C
\
I
J
Figure 2 a
A. Table Saw Base ................................................... 1
B. Belt ....................................................................... 1
C. Belt Guard ............................................................ 1
D. Blade Guard Assembly
(Hardware Shown Separately) ............................. 1
E. Wrench ................................................................ 1
R Handwheel (Hardware Shown Separately) .......... 2
G. Leg Brace, lower (short) ....................................... 2
H. Leg Brace, lower (long) ........................................ 2
I. Leg Brace, upper (short) ...................................... 2
J. Leg Brace, upper (long) ....................................... 2
K. Leg ....................................................................... 4
L. Miter Gage ........................................................... 1
M. Motor .................................................................... 1
N. Motor Mounting Plate
(Hardware Shown Separately) ............................. 1
CRRFTSMRN°TABLESAW315.228390
Y.
Z.
10
O. Rail, Front (Hardware Shown Separately) ........... 1
R Rail, Rear (Hardware Shown Separately) ............ 1
Q. Rip Fence ............................................................. 1
R. Blade Guard Bracket ........................................... 1
S. Switch Assembly ................................................. 1
T. Switch Key ........................................................... 1
U. Table Extension ................................................... 2
V. Hardware for Mounting Motor, Motor Mounting
Plate, and Belt Guard (Shown Separately) .......... 1
W. Hardware for Table Extensions
(Shown Separately) ............................................. 1
X. Hardware for Leg Stand, Leveling Feet, and
Mounting Saw Base
(Shown Separately) ............................................. 1
Hardware for Blade Guard Bracket and
Blade Guard Assembly (Shown Separately) ........ 1
Owner's Manual (Not Shown) .............................. 1
