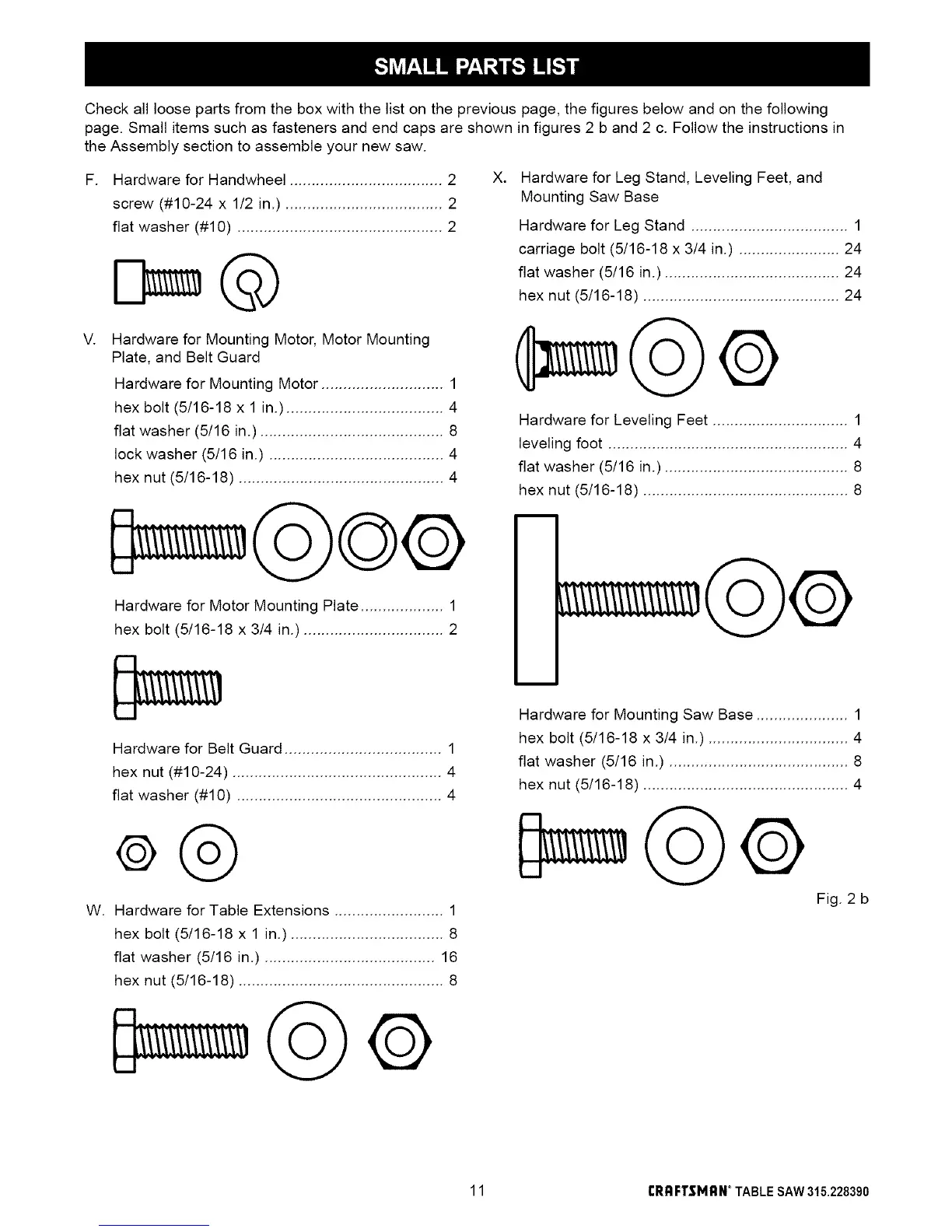

Checkallloosepartsfromtheboxwiththelistonthepreviouspage,thefiguresbelowandonthefollowing
page.Smallitemssuchasfastenersandendcapsareshowninfigures2 band2 c.Followtheinstructionsin
theAssemblysectiontoassembleyournewsaw.
F. HardwareforHandwheel...................................2 X.
screw(#10-24x 1/2in.)....................................2
flatwasher(#10)...............................................2
V.
Hardware for Mounting Motor, Motor Mounting
Plate, and Belt Guard
Hardware for Mounting Motor ............................ 1
hex bolt (5/16-18 x 1 in.) .................................... 4
flat washer (5/16 in.) .......................................... 8
lock washer (5/16 in.) ........................................ 4
hex nut (5/16-18) ............................................... 4
Hardware for Motor Mounting Plate ................... 1
hex bolt (5/16-18 x 3/4 in.) ................................ 2
Hardware for Leg Stand, Leveling Feet, and
Mounting Saw Base
Hardware for Leg Stand .................................... 1
carriage bolt (5/16-18 x 3/4 in.) ....................... 24
flat washer (5/16 in.) ........................................ 24
hex nut (5/16-18) ............................................. 24
Hardware for Leveling Feet ............................... 1
leveling foot ....................................................... 4
flat washer (5/16 in.) .......................................... 8
hex nut (5/16-18) ............................................... 8
W.
Hardware for Belt Guard .................................... 1
hex nut (#10-24) ................................................ 4
flat washer (#10) ............................................... 4
Q®
Hardware for Table Extensions ......................... 1
hex bolt (5/16-18 x 1 in.) ................................... 8
flat washer (5/16 in.) ....................................... 16
hex nut (5/16-18) ............................................... 8
Hardware for Mounting Saw Base ..................... 1
hex bolt (5/16-18 x 3/4 in.) ................................ 4
flat washer (5/16 in.) ......................................... 8
hex nut (5/16-18) ............................................... 4
Fig. 2 b
