OPERATI

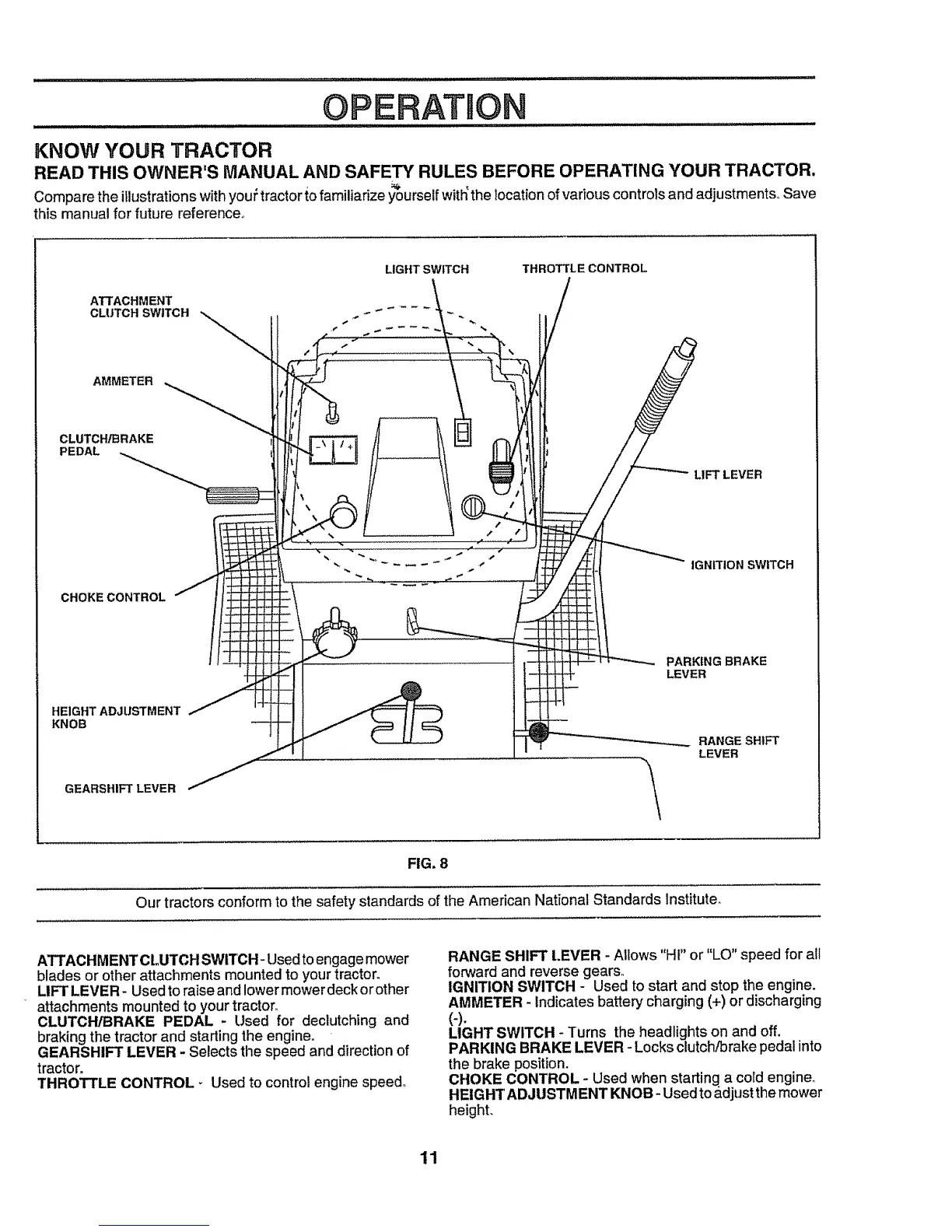

KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR.
Compare the illustrationswithyouPtractorto familiarize yourselfw_ththe locationofvariouscontrolsand adjustments° Save
this manual for future reference,,
ATTACHMENT
CLUTCH SWITCH
AMMETER
CLUTCH/BRAKE
PEDAL
CHOKE CONTROL
HE1GHTADJUSTMENT
KNOB
GEARSHIFT LEVER
LIGHT SWITCH
THROTTLECONTROL
LIFT LEVER
IGNITION SWITCH
PARKING BRAKE
LEVER
RANGESHtFT
LEVER
FIG, 8
Our tractors conform to the safety standards of the American National Standards Institute_
ATTACHMENT CLUTCH SWITCH- Used to engage mower
blades or other attachments mountedto your tractor°
LIFT LEVER- Usedto raise and lowermower deck orother
attachments mounted to yourtractor_
CLUTCH/BRAKE PEDAL - Used for declutching and
braking the tractor and starting the engine°
GEARSHIFT LEVER - Selects the speed and direction of
tractor.
THROTTLE CONTROL _ Used to control engine speed.
RANGE SHIFT t.EVER - Allows "HI" or "LO" speed for all
forward and reverse gears,,
IGNITION SWITCH - Used to start and stop the engine.
AMMETER - Indicates battery charging (+) or discharging
(-).
LIGHT SWITCH - Turns the headlights on and off.
PARKING BRAKE LEVER - Locks clutch/brake pedal into
the brake position.
CHOKE CONTROL - Used when starting a cold engine°
HEIGHT ADJUSTMENT KNOB- Usedto &djust the mower
height.
11
