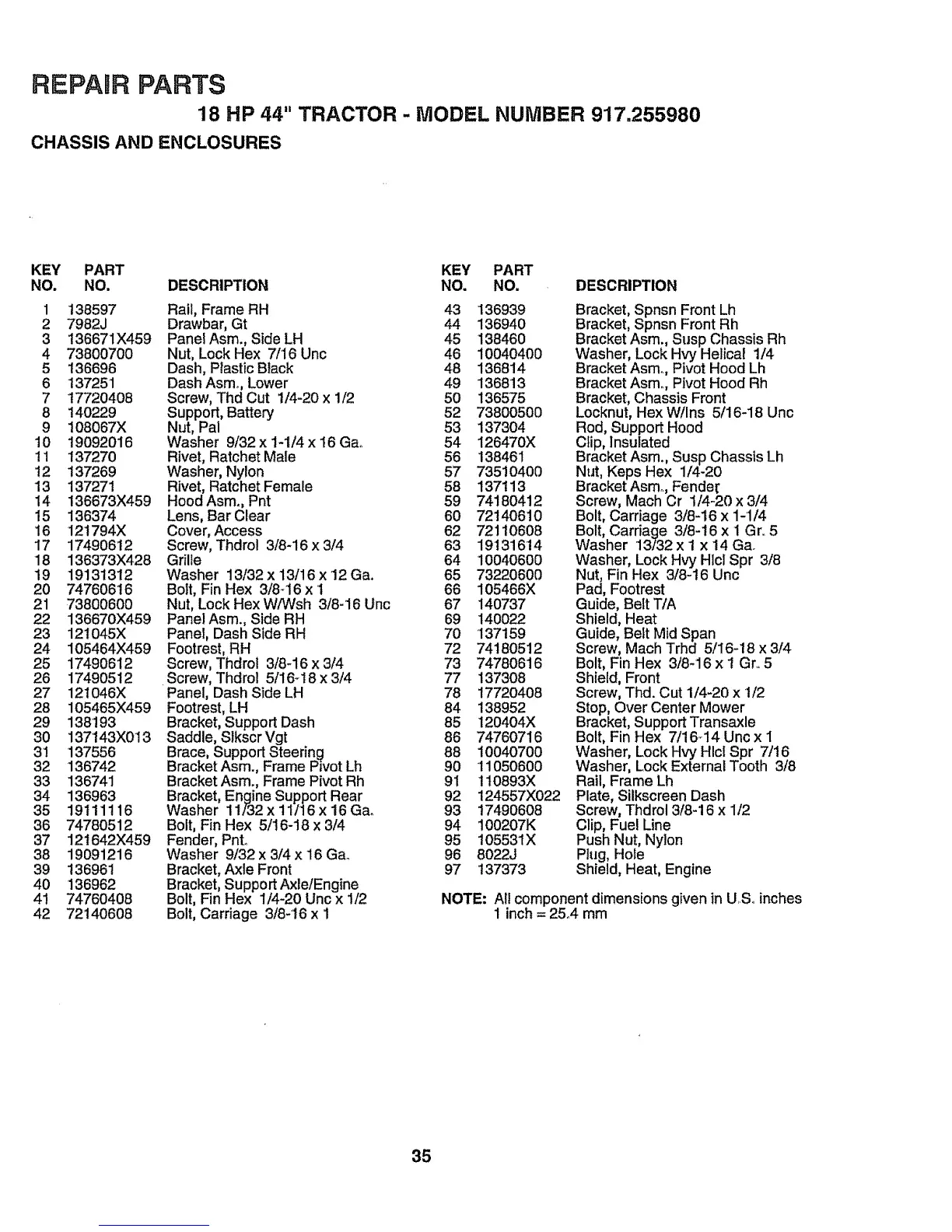

REPARRPARTS
18 HP 44" TRACTOR - MODEL NUMBER 917.255980
CHASSIS AND ENCLOSURES
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 138597 Rail, Frame RH 43 136939
2 7982J Drawbar, Gt 44 136940
3 136671X459 Panel Asm., Side LH 45 138460
4 73800700 Nut, Lock Hex 7/16 Unc 46 10040400
5 136696 Dash, Plastic Black 48 136814
6 137251 Dash Asmo, Lower 49 136813
7 17720408 Screw, Thd Cut 1/4-20 x 1/2 50 136575
8 140229 Support, Battery 52 73800500
9 108067X Nut, Pal 53 137304
10 19092016 Washer 9i32x1-1i4x16Gao 54 126470X
11 137270 Rivet, Ratchet Male 56 138461
12 137269 Washer, Nylon 57 73510400
13 137271 Rivet, Ratchet Female 58 137113
14 136673X459 Hood Asm., Pnt 59 74180412
15 136374 Lens, Bar Clear 60 72140610
16 121794X Cover, Access 62 72110608
17 17490612 Screw, Thdrol 3/8-16 x 3/4 63 19t31614
18 136373X428 Grille 64 10040600
19 19131312 Washer 13/32 x 13/16 x 12 Ga. 65 73220600
20 74760616 Bolt, Fin Hex 3/8-16 x I 66 105466X
21 73800600 Nut, Lock Hex W/Wsh 3/8-16 Unc 67 140737
22 136670X459 Panel Asm., Side RH 69 140022
23 121045X Panel, Dash Side RH 70 137159
24 105464X459 Footrest, RH 72 74180512
25 17490612 Screw, Thdrol 3/8-16 x 3/4 73 74780616
26 17490512 Screw, Thdrol 5/16_18 x 3/4 77 137308
27 121046X Panel, Dash Side LH 78 17720408
28 105465X459 Footrest, LH 84 138952
29 138193 Bracket, Support Dash 85 t20404X
30 137143X013 Saddle, StkscrVgt 86 74760716
31 137556 Brace, Support Steering 88 10040700
32 136742 Bracket Asm., Frame Pi"votLh 90 11050600
33 136741 Bracket Asm., Frame Pivot Rh 91 110893X
34 136963 Bracket, Engine Support Rear 92 124557X022
35 19111116 Washer 11/32x11116x16Ga. 93 17490608
36 74780512 Bolt, Fin Hex 5/16-18 x 3/4 94 100207K
37 121642X459 Fender, PnL 95 105531X
38 19091216 Washer 9/32 x 3/4 x 16 Ga_ 96 8022J
39 136961 Bracket, Axle Front 97 137373
40 136962 Bracket, Support Axle!Engine
41 74760408 Bolt, Fin Hex 1/4-20 Unc x 1/2
42 72140608 Bolt, Carriage 3/8-i6 x I
Bracket, Spnsn Front Lh
Bracket, Spnsn Front Rh
Bracket Asm., Susp Chassis Rh
Washer, Lock Hvy Helical 1/4
Bracket Asm., Pivot Hood Lh
Bracket Asm. Pivot Hood Rh
Bracket, Chassis Front
Locknut, Hex W/Ins 5/16-18 Unc
Rod, Support Hood
Clip, Insulated
Bracket Asm., Susp Chassis Lh
Nut, Keps Hex 1/4-20
Bracket Asmo, Fende[
Screw, Mach Cr 1/4-20 x 3/4
Bolt, Carriage 3/8-16 x 1-'1/4
Bolt, Carriage 3/8-16 x 1 Gr,,5
Washer 13/32 x 1 x 14 Ga.
Washer, Lock Hvy Htcl Spr 3/8
Nut, Fin Hex 3/8-16 Unc
Pad, Footrest
Guide, Belt T/A
Shield, Heat
Guide, Belt Mid Span
Screw, Mach Trhd 5/16-18 x 3/4
Bolt, Fin Hex 3/8-16 x 1 Gr,,5
Shield, Front
Screw, Thd. Cut 1/4-20 x 1/2
Stop, Over Center Mower
Bracket, Support Transaxle
Bolt, Fin Hex 7/16-14 Unc x 1
Washer, Lock Hvy Hlcl Spr 7/t 6
Washer, Lock External Tooth 3/8
Rail, Frame Lh
Plate, Silkscreen Dash
Screw, Thdrol 3/8-16 x 1/2
Clip, Fuel Line
Push Nut, Nylon
Plug, Hole
Shield,Heat,Engine
NOTE: All component dimensions given in U..S,.inches
1 inch = 25°4 mm
35
