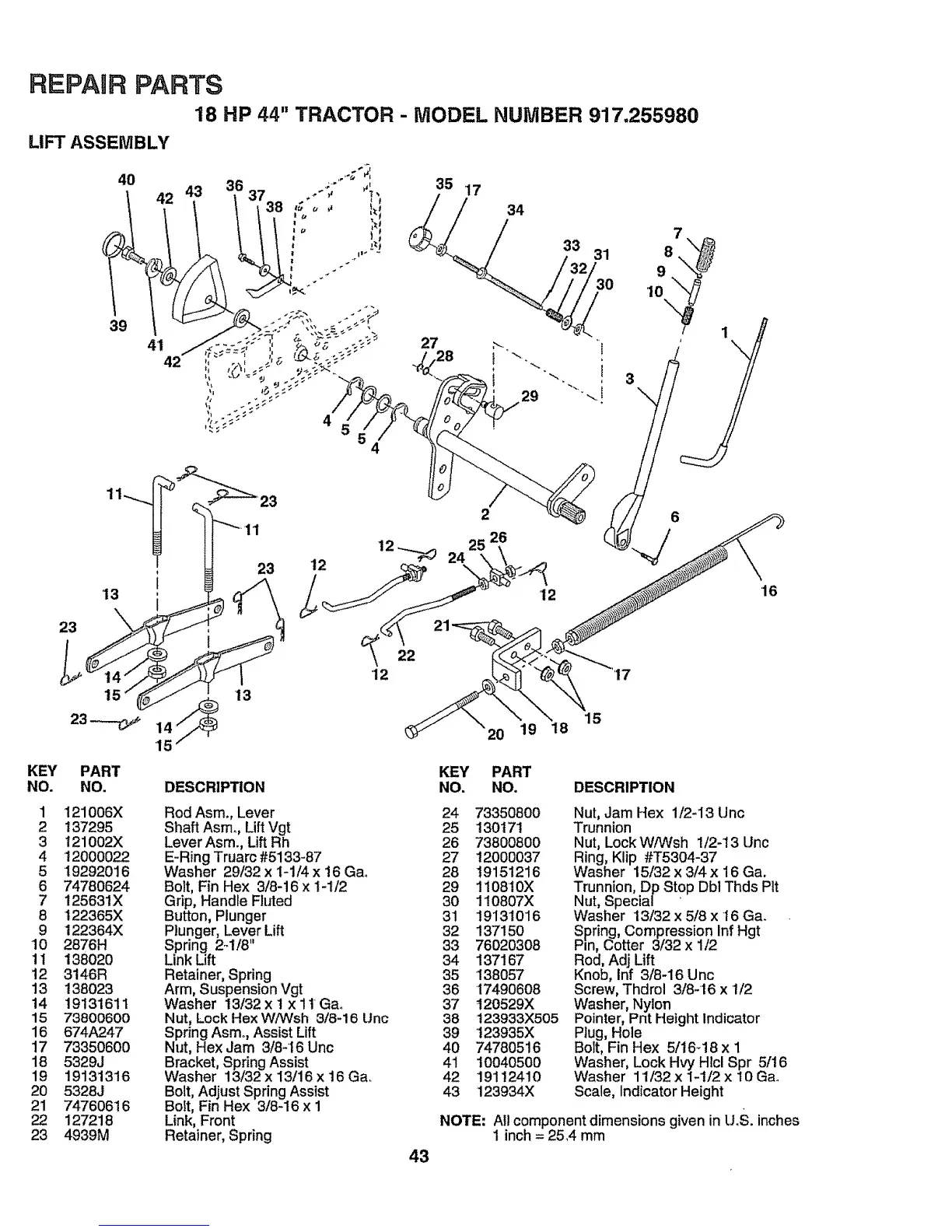

REPAIR PARTS
18 HP 44" TRACTOR - MODEL NUMBER 917.255980
LIFT ASSEMBLY
35
17
34
29
23 12
13
'12
2
25 26
12 ..___ 24
\
22
2O
33 31 87 \_
_3:_ 9
/,/3_ 10N, _
12 16
15
19 18
KEY
NO.
1
2
3
4
5
6
7
8
9
10
1t
12
13
14
15
16
17
18
19
20
21
22
23
PART
NO.
121006X
137295
121002X
12000022
19292016
74780624
125631X
122365X
122364)(
2876H
138020
3146R
138023
19131611
7,3800600
674A2.47
73350600
5329J
19131316
5328J
74760616
127218
4939M
DESCRIPTION
Rod Asm., Lever
Shaft Asm., LiftVgt
Lever Asm. LiftRh
E-Ring Truarc #5133-87
Washer 29/32 x 1-1/4 x i6 Gao
Bolt, Fin Hex 3/8-16 x 1-1/2
Grip, Handle Fluted
Button, Plunger
Plunger, Lever Lift
Spring 2-1/8"
Link Lift
Retainer, Spring
Arm, Suspension Vgt
Washer 13/32 x I x 1t Gao
Nut, Lock Hex WiWsh 8/8-16 Unc
Spring Asmo,Assist Lift
Nut, Hex Jam 3/8-16 Unc
Bracket, Spring Assist
Washer 13/32 x 13!16 x 16 Ga.
Bolt, Adjust Spring Assist
Bolt, Fin Hex 3/8-16 x 1
Link, Front
Retainer, Spring
43
KEY PART
NO. NO. DESCRIPTION
24 73350800
25 130171
26 73800800
27 12000037
28 19151216
29 1108!0X
30 110807X
31 19131O16
32 137150
33 76020308
34 137167
35 138057
36 17490608
37 t20529X
38 t23933X505
39 123935X
40 74780516
41 10040500
42 19112410
43 123934X
NOTE:
Nut, Jam Hex 1/2-13 Unc
Trunnion
Nut, LockWiWsh 1/2-13 Unc
Ring, Klip #T5304-37
Washer 15/32 x 3/4 x 16 Ga.
Trunnion, Dp Stop Dbl Thds Pit
Nut, Special '
Washer 13/32 x 5/8 x 16 Ga.
Spring, Compression Inf Hgt
Pin, Cotter 3/32 x 1/2
Rod, Adj Lift
Knob, Inf 3/8-16 Unc
Screw, Thdrol 3/8-16 x 1/2
Washer, Nylon
Pointer, Pnt Height Indicator
Plug, Hole
Bolt, Fin Hex 5/16d8 x 1
Washer, Lock Hvy Hlcl Spr 5/16
Washer 11/32 x 1-1/2 x 10 Ga.
Scale, Indicator Height
At! component dimensions given in U.S. inches
1 inch = 25.4 mm
