(OK)

15° Slope

(TOO STEEP)

15° Slope

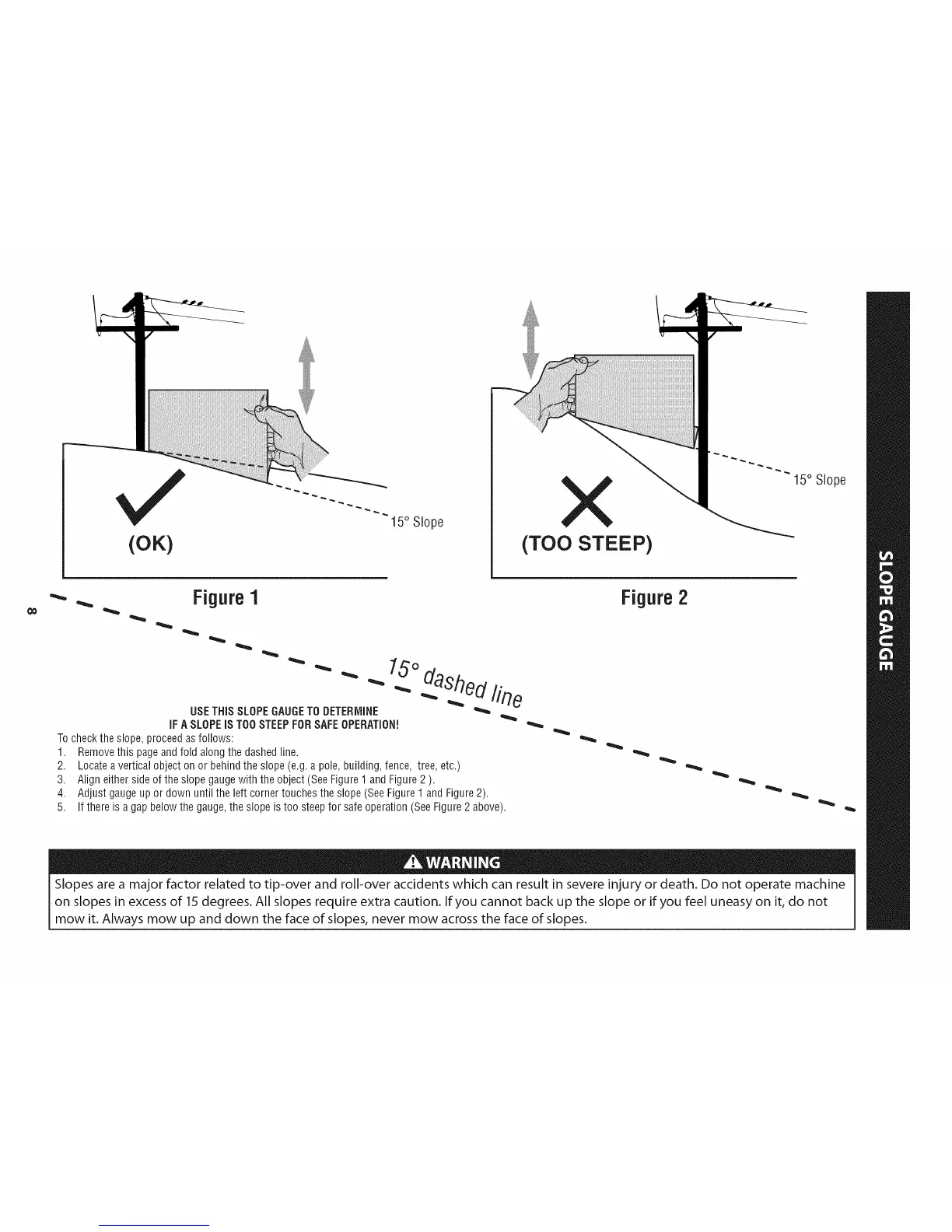

'_. _ Figure1

USETHISSLOPEGAUGETODETERMINE

IFA SLOPEIS TOOSTEEPFORSAFEOPERATION!

Tocheckthe slope,proceedas follows:

1. Removethis pageandfoldalongthe dashedline.

2. Locatea verticalobject onor behindthe slope(e.g.a pole,building,fence, tree,etc.)

3. Align eithersideofthe slopegaugewith the object(SeeFigure1 and Figure2 ).

4. Adjust gaugeupor down untilthe left cornertouchestheslope (SeeFigure1and Figure2).

15°

dashed line

If there isagap belowthegauge,the slope istoo steepfor safeoperation(SeeFigure2 above).

Figure2

Slopes are a major factor related to tip-over and roll-over accidents which can result in severe injury or death. Do not operate machine

on slopes in excess of 15 degrees. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not

mow it. Always mow up and down the face of slopes, never mow across the face of slopes.
