page 19
CTs Power Amplifiers
Operation Manual
5 Advanced Features
and Options
5.2.4 Input Sensitivity Switches
See Figures 5.1 and 5.2. To access the Input Sensitivity Switches, turn off the
amplifier and remove the PIP2-BBY Input Panel. The switches are in the top surface
of the cavity behind the Input Panel. One 3-position switch per channel selects
among these settings: CTs 600/1200: 1.4V (8/4 ohms), 26 dB gain, and 1.4V (70V
operation). CTs 2000/3000: 1.4V (8/4 ohms), 26 dB gain, and 1.4V (70V) / 2V
(100V). The Specifications chapter lists the input sensitivity for the 26 dB gain set-
ting.
5.3 Options
T-170V: See Figure 5.3. This is an autoformer that
allows 100V output from the CTs 600/1200, and
allows other amplifiers without direct constant voltage
output to be easily integrated into distributed systems.
TP-170V: See Figure 5.4. This is a rack-mountable
panel with four autoformers as described above.
PIP Modules
Versatile PIP (Programmable Input Processor) mod-
ules provide flexible expansion features that can be
added to customize the amplifier. PIP modules plug
into the connector inside the back panel of the ampli-
fier. PIP modules are available with features ranging
from error-driven compressor/limiters to crossovers to
remote control and monitoring via IQwic™ or System
Architect software. Your amplifier is a PIP2 amplifier,
which means it can take advantage of the many
advanced features found in PIP2 modules. The CTs
Series 2-channel models do not accept earlier PIP
modules.
Visit the Crown website at www.crownaudio.com, or
contact Crown Customer Service, for descriptions of
available PIP and PIP2 modules.

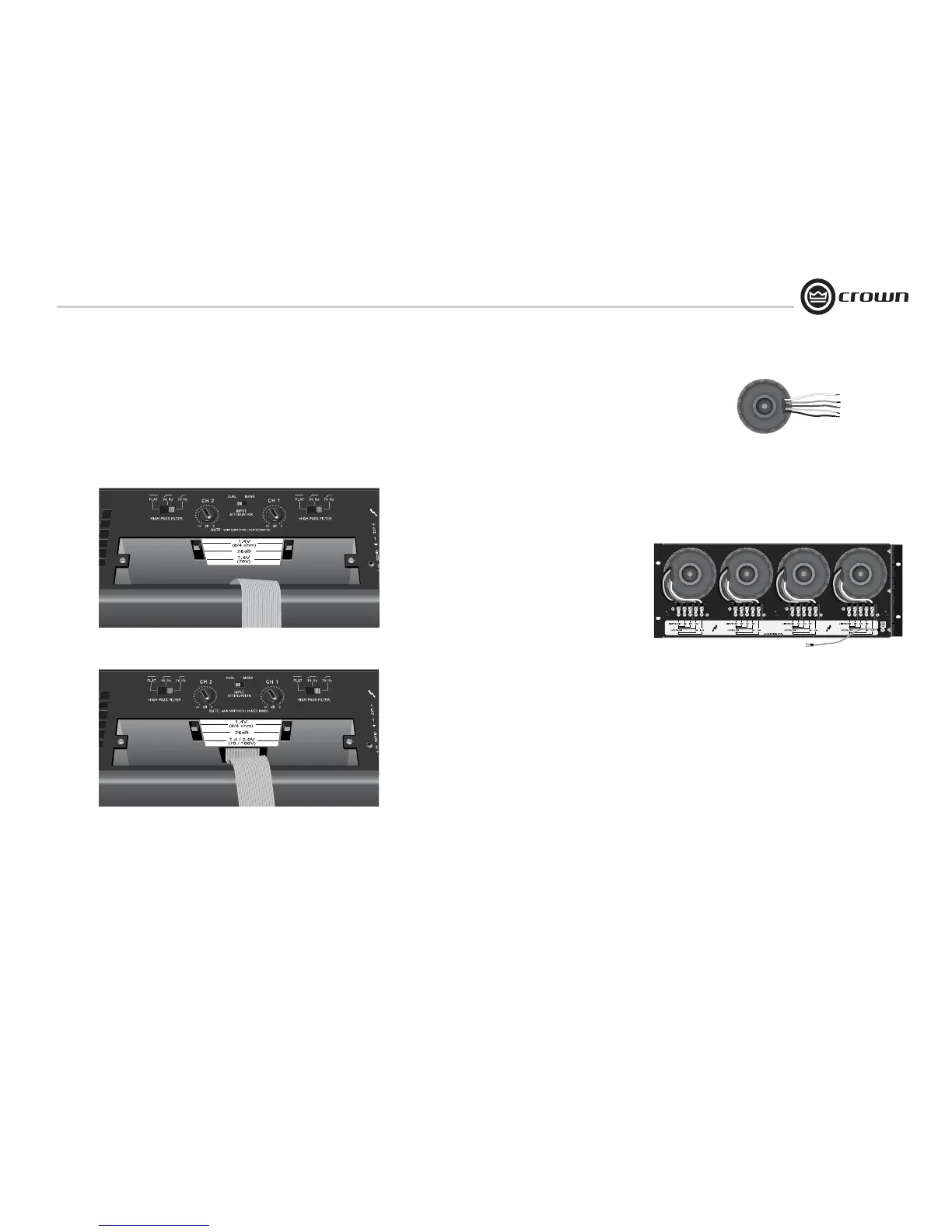

Figure 5.2 Input Sensitivity Switches for CTs 2000/3000
Figure 5.1 Input Sensitivity Switches for CTs 600/1200
Figure 5.3 T-170V
Figure 5.4 TP-170V (back view)
