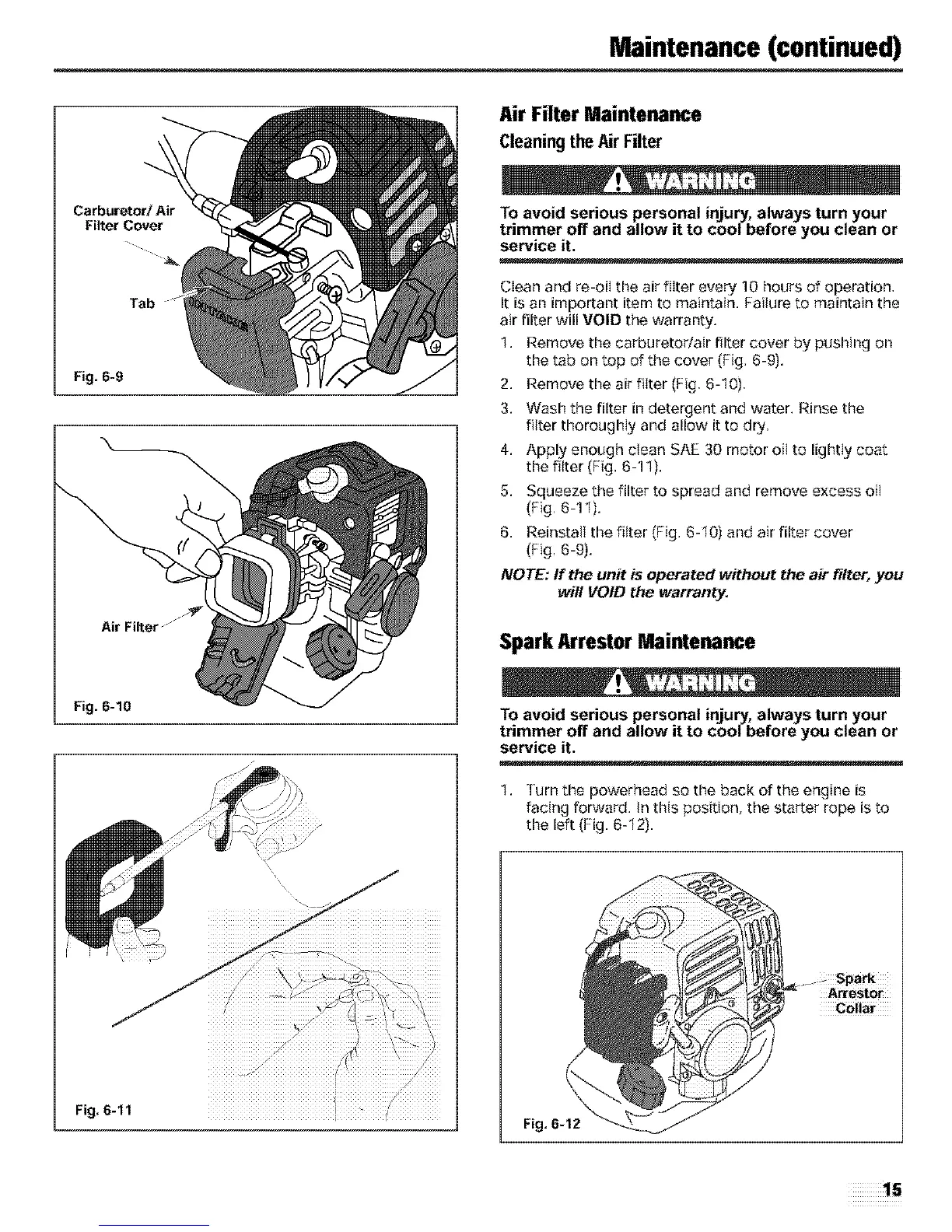

Maintenance (continued)
Air Filter Maintenance
CleaningtheAirFilter
Carburetor/Air
Filter Cover
Tab
Fig. 6-9
Air Filter .....
To avoid serious personal injury, always turn your
trimmer off and allow it to cool before you clean or
service it.
Clean and re-oit the air filter every 10 hours of operation.
It is an important item to maintain. Failure to maintain the
air filter will VOID the warranty.
1. Remove the carburetor/air filter cover by pushing on
the tab on top of the cover (Fig. 6-9).
Remove the air filter (Fig. 6-10).
2,
3.
4.
5.
6.
Wash the filter in detergent and water. Rinse the
filter thoroughly and allow it to dry.
Apply enough clean SAE 30 motor oil to lightly coat
the filter (Fig. 6-11).
Squeeze the filter to spread and remove excess oil
(Fig. 6-11}.
ReinstalI the filter (Fig. 6-10} and air filter cover
(Fig. 6-9).
NOTE: If the unit is operated without the air filter, you
will VOID the warranty.
Spark Arrestor Maintenance
Fig. 6-10
Fig, 6-11
/
To avoid serious personal injury, always turn your
trimmer off and allow it to cool before you clean or
service it.
1. Turn the powerhead so the back of the engine is
facing forward, in this position, the starter rope is to
the left (Fig. 6-12).
_estor
Co|lar
Fig. 6-12
¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸!5
