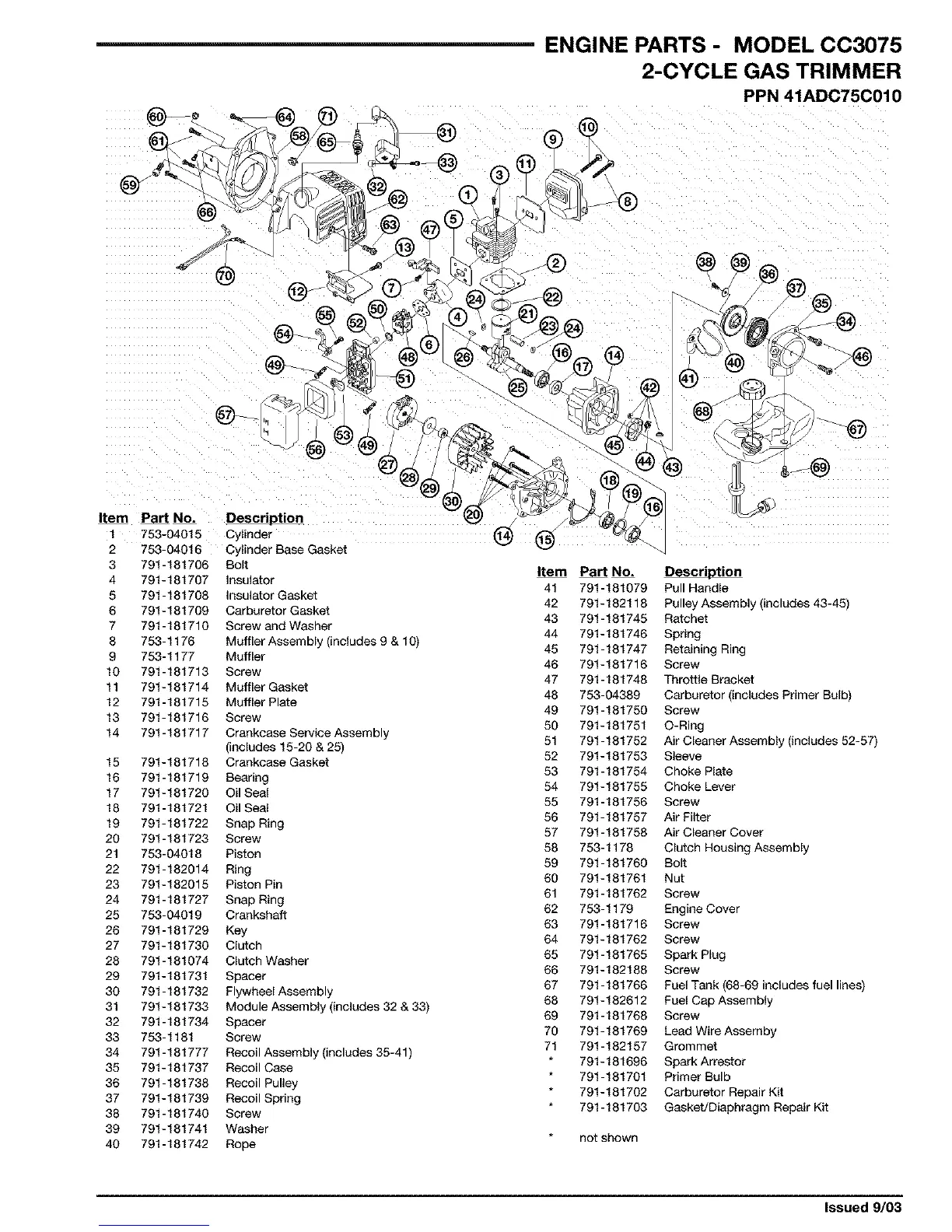

' ENGINE PARTS - MODEL CC3075
2-CYCLE GAS TRIMMER
PPN 41ADC75C010
Item
!
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Part No. Description
753-04015 Cylinder
753-04016
791-181706
791-181707
791-181708
791-181709
791-181710
753-1176
753-1177
791-181713
791-181714
791-181715
791-181716
791-181717
791-181718
791-181719
791-181720
791-181721
791-181722
791-181723
753-04018
791-182014
791-182015
791-181727
753-04019
791-181729
791-181730
791-181074
791-181731
791-181732
791-181733
791-181734
753-1181
791-181777
791-181737
791-181738
791-181739
791-181740
791-181741
791-181742
Cylinder Base Gaskel
Bolt
Insulator
Insulator Gasket
Carburetor Gasket
Screw and Washer
Muffler Assembly (includes 9 & 10)
Muffler
Screw
Muffler Gasket
Muffler Plate
Screw
Crankcase Service Assembly
(includes 15-20 & 25)
Crankcase Gasket
Bearing
Oil Seal
Oil Seal
Snap Ring
Screw
Piston
Ring
Piston Pin
Snap Ring
Crankshaft
Key
Clutch
Clutch Washer
Spacer
Flywheel Assembly
Module Assembly (includes 32 & 33)
Spacer
Screw
Recoil Assembly (includes 35-41)
Recoil Case
Recoil Pulley
Recoil Spring
Screw
Washer
Rope
•@ @
@
Item Part No. Description
41 791-181079 Pull Handle
42 791-182118 Pulley Assembly (includes 43-45)
43 791-181745 Ratchet
44 791-181746 Spring
45 791-181747 Retaining Ring
46 791-181716 Screw
47 791-181748 Throttle Brecket
48 753-04389 Carburetor (includes Primer Bulb)
49 791-181750 Screw
50 791-181751 O-Ring
51 791-181752 Air Cleaner Assembly (includes 52-57)
52 791-181753 Sleeve
53 791-181754 Choke Plate
54 791-181755 Choke Lever
55 791-181756 Screw
56 791-181757 Air Filter
57 791-181758 Air Cleaner Cover
58 753-1178 Clutch Housing Assembly
59 791-181760 Bolt
80 791-181761 Nut
61 791-181762 Screw
62 753-1179 Engine Cover
63 791-181716 Screw
64 791-181762 Screw
65 791-181765 Spark Plug
66 791-182188 Screw
67 791-181766 Fuel Tank (68-69 includes fuel lines)
68 791-182612 Fuel Cap Assembly
69 791-181768 Screw
70 791-181769 Lead Wire Assemby
71 791-182157 Grommet
791-181696 Spark Arrestor
791-181701 Primer Bulb
791-181702 Carburetor Repair Kit
791-181703 Gasket/Diaphragm Repair Kit
not shown
