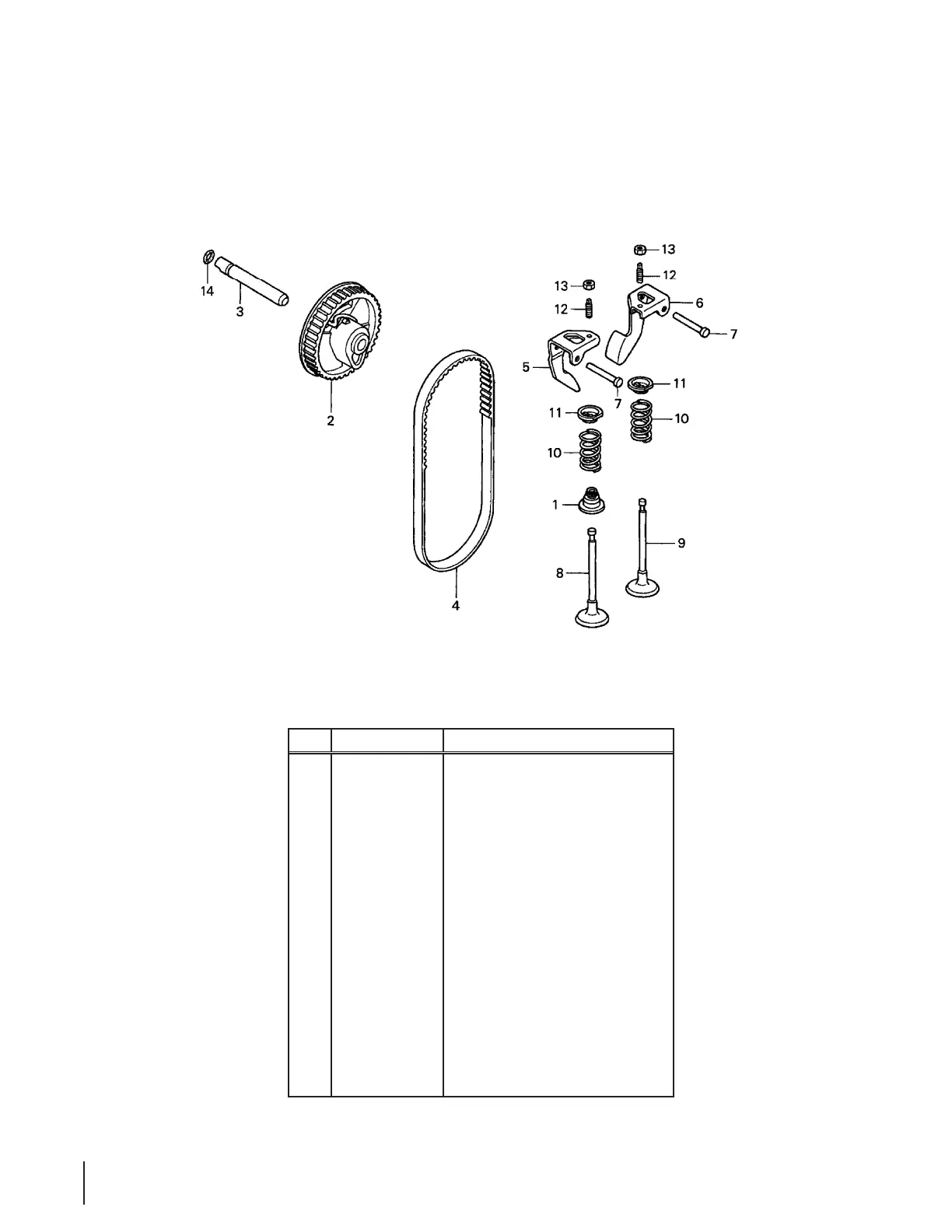

Honda GC190LA Camshaft

CAMSHAFT

1-6 2006 American Honda Motor Co., Inc. MAY, 2006 1-C3

Z1A0E0900

MODEL TYPE

A =GC190A a =MHA2

E-9

Engine

Serial Number

Ref Description From To QTY Part Number H/C

1 SEAL, VALVE STEM .................................. -------- -------- 1 12209-ZM0-003 6839831

2 PULLEY, CAM ............................................ -------- -------- 1 14320-Z0Y-000 7357346

3 SHAFT, CAM PULLEY ................................ -------- -------- 1 14324-ZL8-000 5580063

4 BELT, TIMING (84HU7 G-200).................... -------- -------- 1 14400-Z0J-014 7058985

5 ARM, IN. VALVE ROCKER ........................ -------- -------- 1 14431-Z0J-000 7526122

6 ARM, EX. VALVE ROCKER ........................ -------- -------- 1 14441-Z0J-000 7526130

7 SHAFT, ROCKER ARM .............................. -------- -------- 2 14461-ZL8-000 5580105

8 VALVE, IN. .................................................. -------- -------- 1 14711-ZL8-000 5580113

VALVE, IN. .................................................. -------- -------- 1 14711-Z0J-000 7647118

9 VALVE, EX. ................................................ -------- -------- 1 14721-ZL8-000 5580121

10 SPRING, VALVE ........................................ -------- -------- 2 14751-ZL8-000 5580139

11 RETAINER, IN. VALVE SPRING ................ -------- -------- 2 14771-ZE1-000 1426980

12 SCREW, TAPPET ADJ. .............................. -------- -------- 2 90012-333-000 0294819

13 NUT, TAPPET ADJ. .................................... -------- -------- 2 90206-001-000 0004598

14 O-RING (6.8X1.9) ........................................ -------- -------- 1 91301-ZM0-V31 6315873

Ref. Part Number Description

1. 12209 -ZM0 -003 Valve Stem Seal

2. 14320-Z0Y-000 Cam Pulley

3. 14324-ZL8-000 Cam Pulley Shaft

4. 14400-Z0J-014 Timing Belt, 84HU& G-200

5. 14431-Z0J-000 Internal Valve Rocker Arm

6. 14441-Z0J-000 External Valve Rocker Arm

7. 14461-ZL8-000 Rocker Arm Shaft

8. 14711-Z0J-000 Internal Valve

— 14711-Z0J-000 Internal Valve

9. 14721-ZL8-000 External Valve

10. 14751-ZL8-000 Valve Spring

11. 14771-Z0J-000 Internal Valve Spring Retainer

12. 90012-333-000 Tappet Adjustable Screw

13. 90206-001-000 Tappett Adjustble Nut

14. 91301-ZM0 -V31 O-Ring, 6.8 x 1.9
